8.2 Calculating Automatically (Auto Calculation)
181
Chapter 8 Numerical Calculations
8

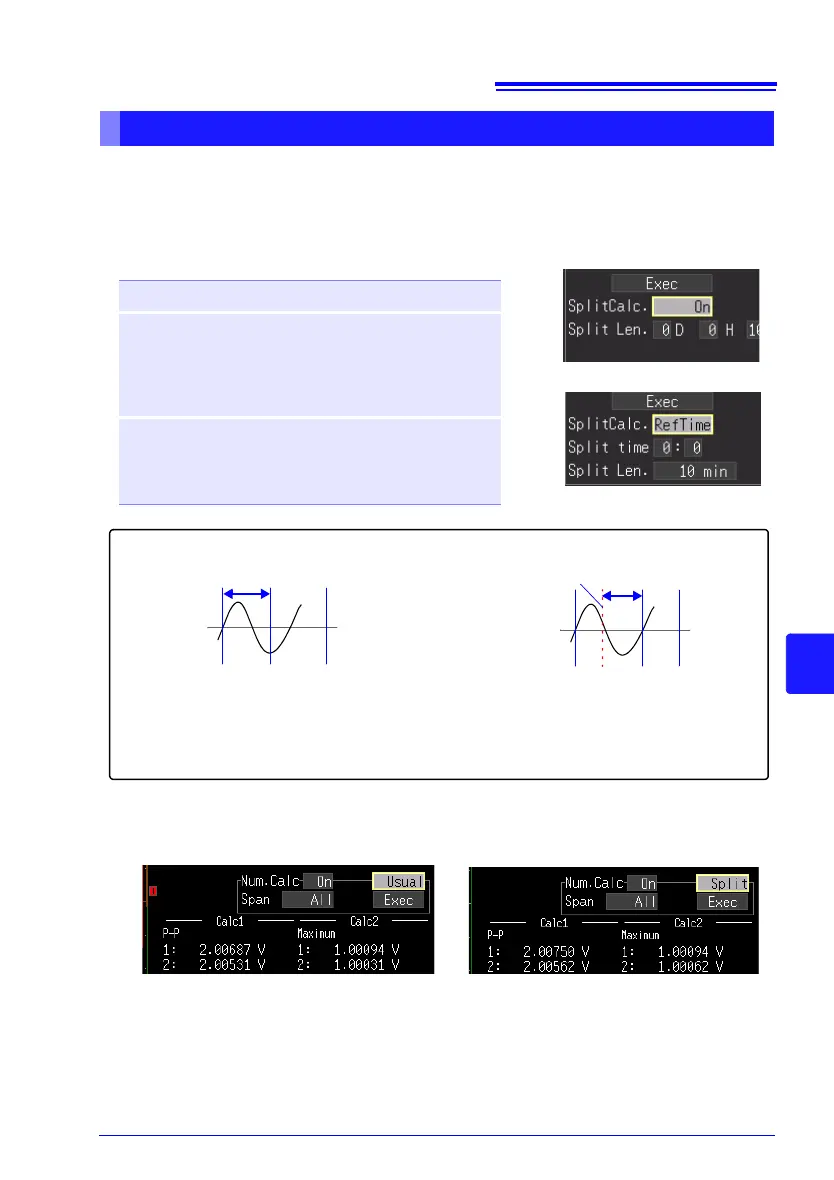

You can save the calculation value at a specified interval. The setting procedure is
the same as for auto calculation when other than interval calculation is set
(p. 179).
(Real-time Function only)
Calculating at Specified Interval (Interval Calculation)
Set how to split the calculation values in [Split Calc.].
Setting options (∗. default setting)
Off∗
Save only the last calculation results.
On
Save the calculation value at a specified in-
terval.
Set the interval at which to perform the cal-
culation in [Split Len.]. (Day, hour, and min-
ute can be set.)
RefTime
Save the calculation value at a specified in-
terval.
Set the reference time and time interval for
calculation in [Split time] and [Split Len.].
[On]
[RefTime]
Split Time
Start of
Measurement
End of
Measurement
When [On]
Divide Time
Start of
Measurement
End of
Measurement
When [Ref Time]
Calculation results for the specified time
span are automatically saved.
The calculation value for the specified split
length portion is automatically saved from
the specified divide time.
Split Time
You can confirm the numerical calculation results on the [Wave+Calc] display of the
Waveform screen. If you set the split save settings when using the Real-time Function,
you can switch between the normal values and split values.
[Usual] display
The calculation values from the start of
measurement are displayed.
[Split] display
The latest calculation value is displayed
at a specified interval. If split save is not
set (interval calculation), [---] is indicated
for the split value.
