8.2 Folder and File Structure
118

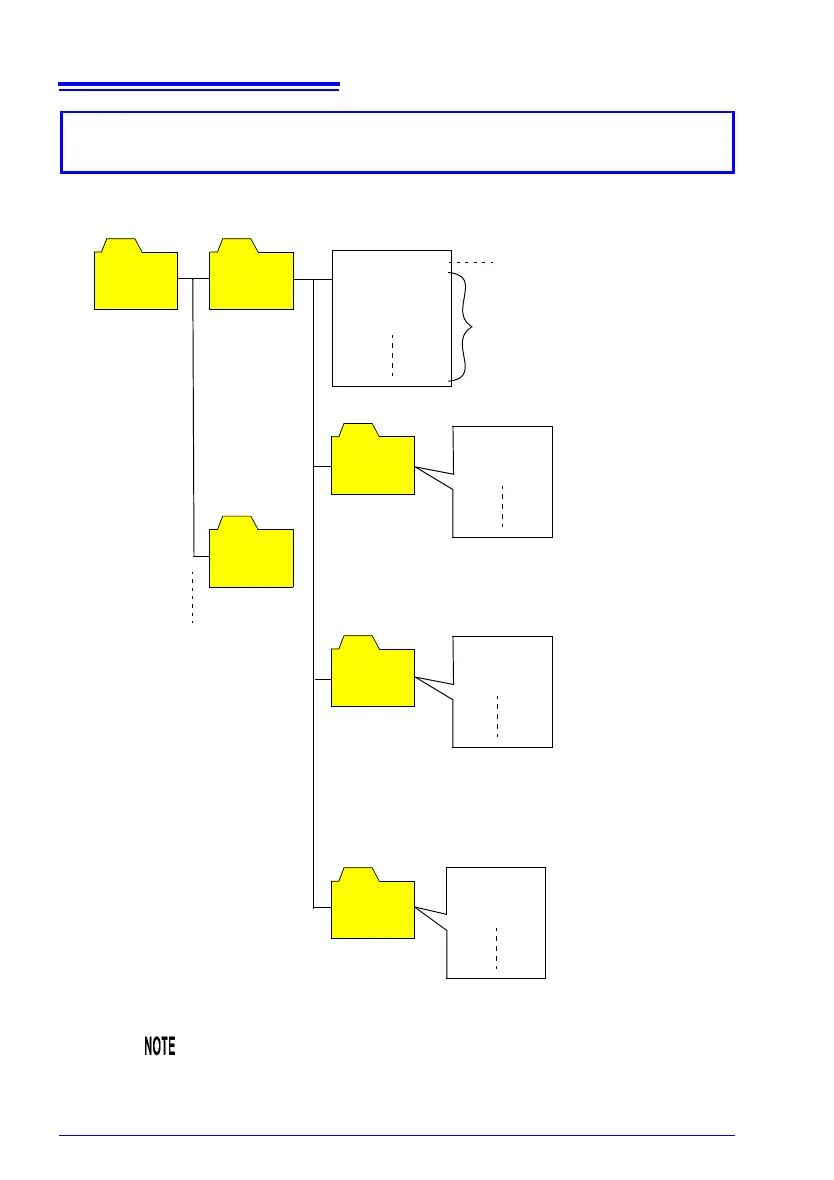

Recording and measurement folder and file structure
(automatic folder and file naming)
Recording and
measurement
data
* The first six characters of
each filename are the
same as the last six char-
acters of its parent folder’s
name. The last two char-
acters of each filename
consist of a sequentially
numbered suffix.
YYMMDD01
YYMMDD:
Recording and
measurement
start date
The last two char-
acters of each
filename consist
of a sequentially
numbered suffix.
Recording and
measurement
data
Harmonic
data folder
Harmonic wave datas
*
Recording and measurement data
files*
up to 100 files
Up to 100 files
Up to 100 files
Waveform data files*
Waveform
data folder
• When saving of screen copies is off, this folder will not be created.
• MMDDhhmm: Output time and date
Screen copy files
Automatic
screen copy
folder
• If waveform saving is OFF, this folder will not be
created.
HARMONIC
MMDD0000.HRM
MMDD0001.HRM
MMDD0002.HRM
• If harmonic data is not being output, this folder
will not be created.
MMDD0000.WUI
MMDD0001.WUI
MMDD0002.WUI
YYMMDD00.SET
MMDD0000.CSV
MMDD0001.CSV
MMDD0002.CSV
Recording data files
Settings data files
PW3360
YYMMDD00
AUTOWAVE
AUTOCOPY
(PW3360-21 only)
PW3360 
base folder
When a recording and measurement data file, harmonic data file
(PW3360-21 only), or waveform data file exceeds 200 MB, all files
will be segmented and new files added.
