3.2 Setting Measurement Conditions on the Wiring Diagram Screen
46
5

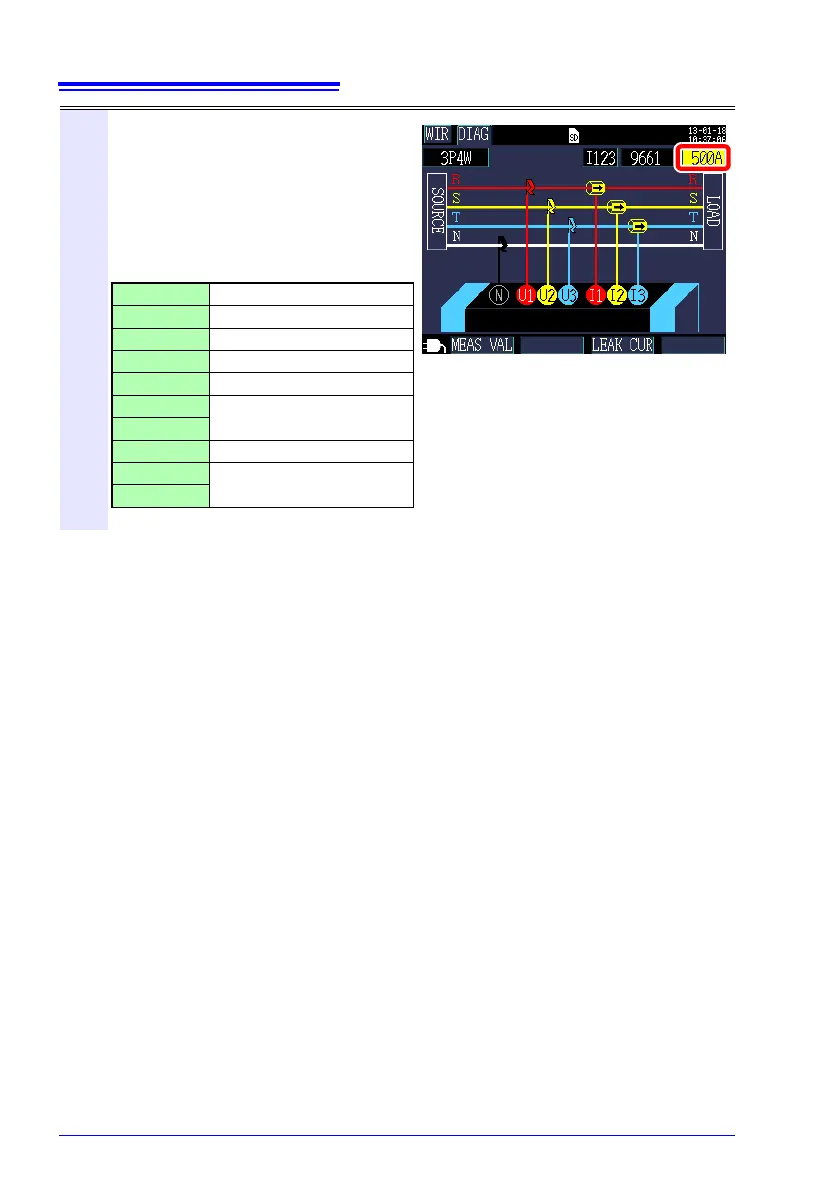

Select the current range.
If you do not know the appropriate
range, configure the current range set-
ting while checking the current value on
th
e [WIR, CHK] screen after connect-
ing the instrument.
See: 3.7, "Setting the Current Range" (p.
54)
9660 5A, 10A, 50A, 100A
9661 5A, 10A, 50A, 100A, 500A
CT9667-500A 50A, 100A, 500A
CT9667-5kA 500A, 1kA, 5kA
9669 100A, 200A, 1kA
9694
500mA, 1A, 5A, 10A, 50A
9695-02
9695-03 5A, 10A, 50A, 100A
9657-10
50mA, 100mA, 500mA, 1A,
5A
9675
