Entering the IP Parameters
Basic Configuration
Release
6.0
07/2010
2.5
System configuration via BOOTP
43

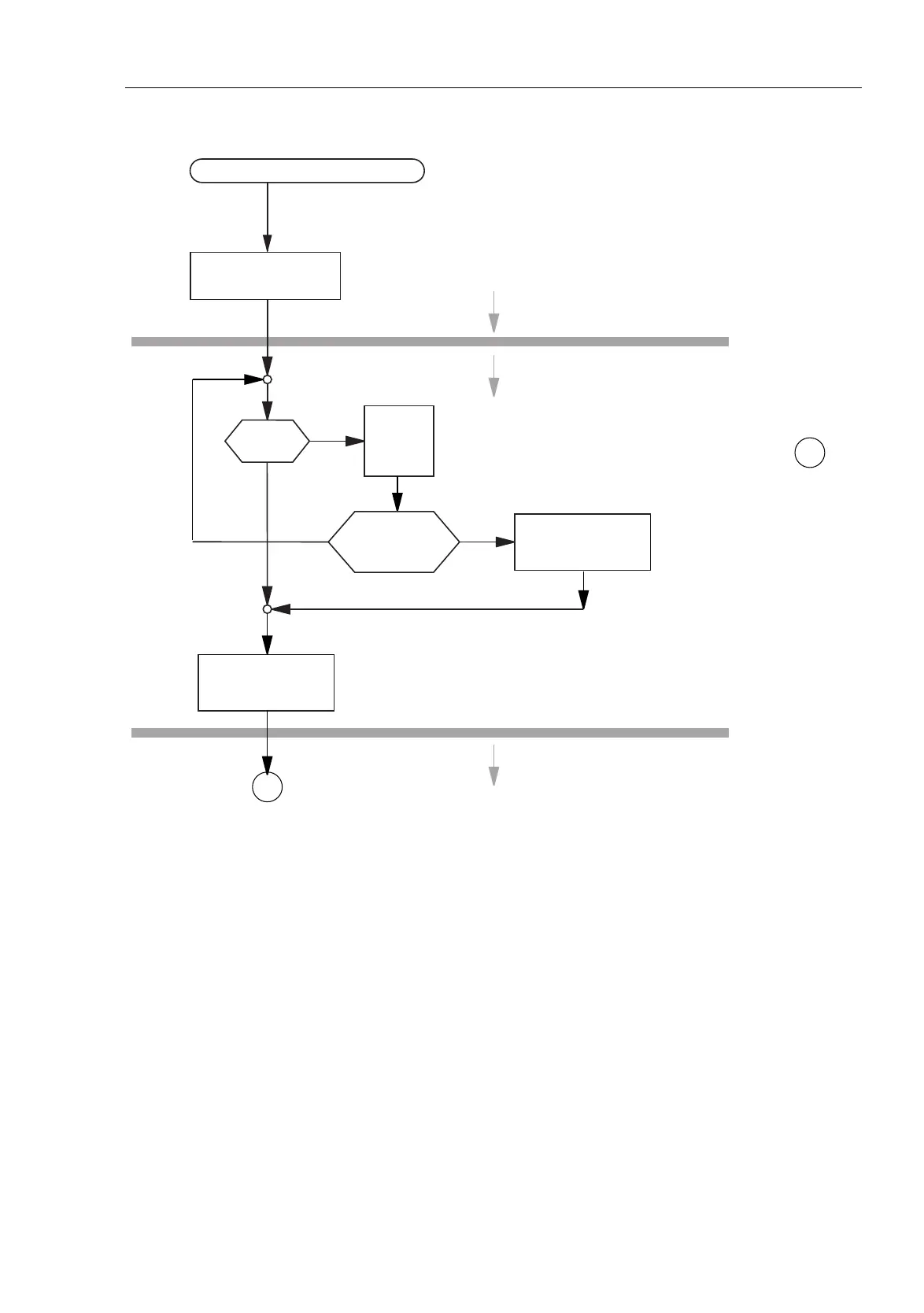

Figure 13: Flow chart for the BOOTP/DHCP process, part 1
* see fig. 14
2
DHCP
or
BOOTP?
Send
DHCP/
BOOTP
Requests
Reply from
DHCP/BOOTP
server?
Yes
Yes
Save IP parameter
and config file URL
locally
initialize IP stack
with IP parameters
No
No*
1
Start-up
Device in initalization
Device runs with
settings from
local flash
Device is manageable
Load default
configuration
