Hisun HS200UTV - Checking the Ignition Timing

-87-
MAINTENANCE AND ADJUSTMENT OF THE UTV
- 87 -

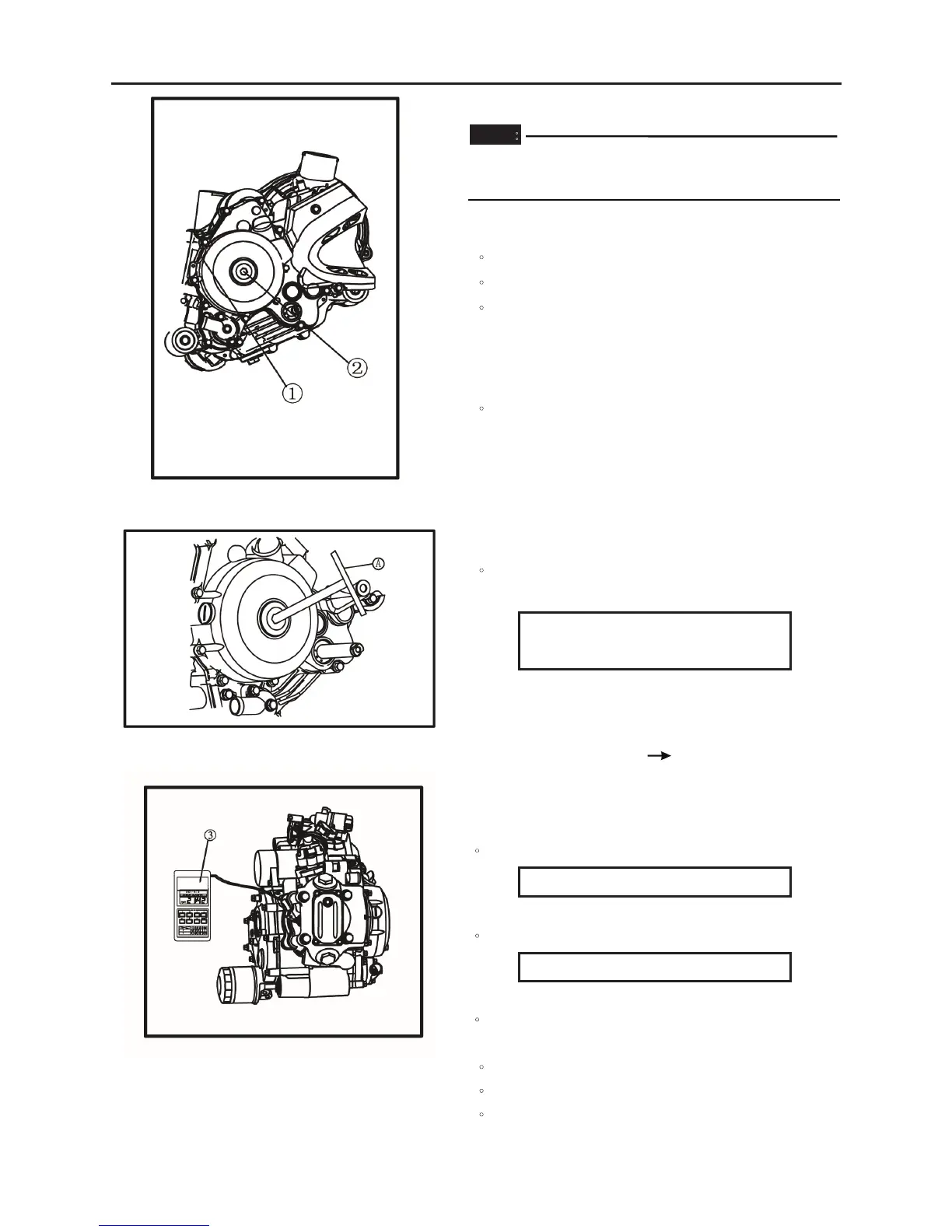

CHECKING THE IGNITION TIMING
NOTE:
before checking the ignition timing, ad
j
ust the
engine’s racing speed and throttle cable.
1. Remove:
·
driver seat
·
passenger seat
·
engine cover board
Refer to “SEATS” in chapter 5.
2. Attach:
·
Engine tachometer ③
(to the spark plug lead)
3. Remove:
Refer to remove manual starting mechanism ②、
① name
4. Check:
·
Engine tachometer
a. worm up the engine at specified speed
Engine speed
1,400 ~ 1,500 r/min
b. Visually check the stationary pointer ① to verify it
is within the required firing range indicated on the
flywheel.
Incorrect firing range
Check the pulser coil
assembly.
c. Install the timing plug.
5. Install:
·
Engine manual starting mechanism
7 Nm (0.7 m · kg, 5.1 ft · lb)
6. Install:
·
manual starting mechanism cover
10 Nm (1.0 m · kg, 7.2 ft · lb)
7. Detach:
·
timing light
8. Install:
·
engine cover board
·passenger seat
·
driver seat
Refer to “SEATS” in chapter 5.
