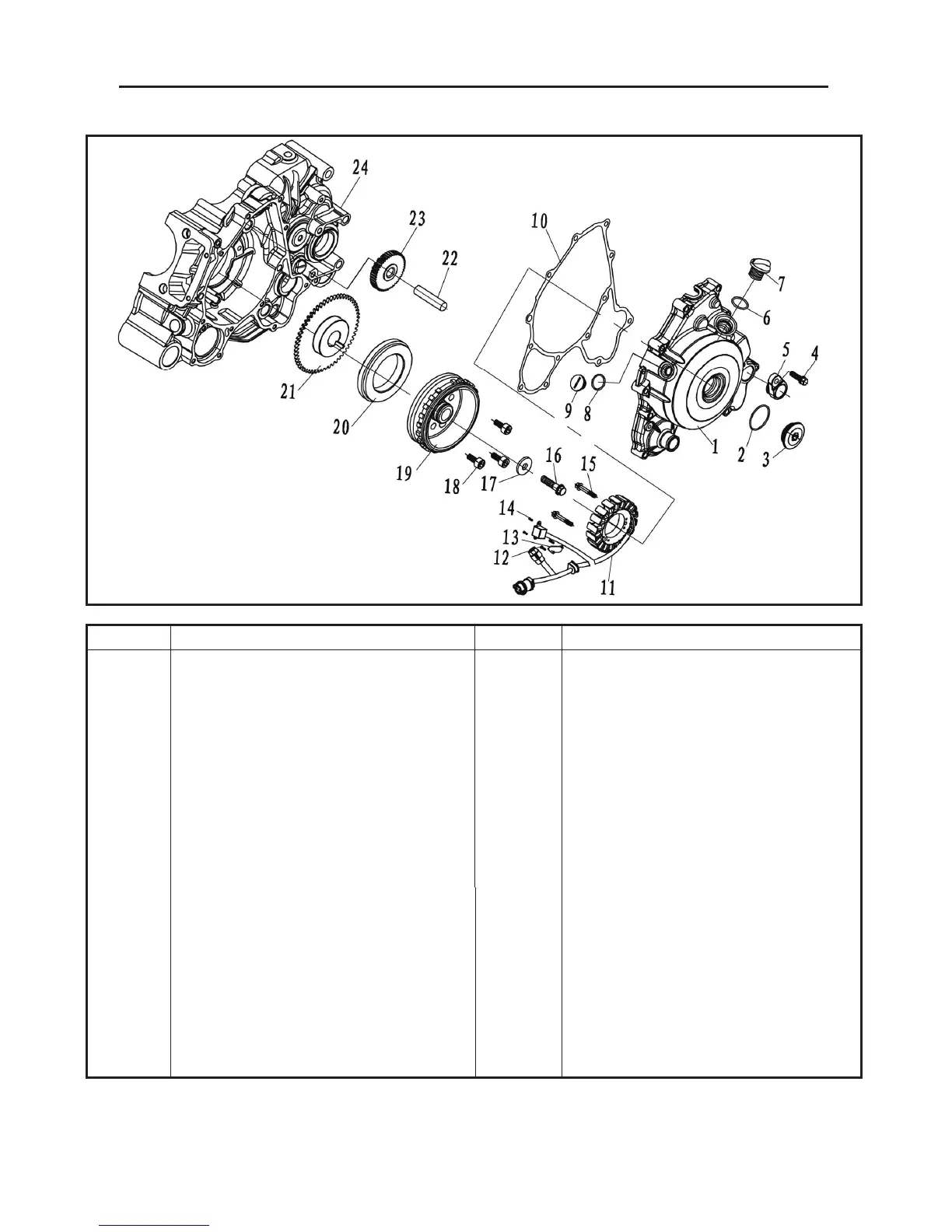

ENGINE LEFT CRANKCASE COVER AND A.C. MAGNETO
No. Part Name Qty Remarks
Removing the engine left crankcase
over and A.C. magneto
Remove the parts in the order listed.
Engine oil
Water pump assembly
1 Left crankcase cover 1
2 O-ring 20.7×2.5 1
3 Hand hole cover 1
4 Flange bolt M6×16 1
5 Gear sensor 1
6 O-ring 20.7×2.6 1
7 Oil plug 1
8 O-ring 13.4×2.35
1
9 Man head
1
10 R. Crank case gasket 1
11 Stator comp 1
12
Hexagon socket head screws M5×12
2
ENGINE
- 143 -
No. Part Name Qty Remarks
13 Tension disc 1
14 Hexagon socket head screws M4×12 2
15 Flange bolt M6×35 2
16 Bolt M10×1.25×40 1
17 Washer 10×32×5 1
18 Hexagon socket head cap screws M8×16 3
19 Rotor comp 1
20 One way machine comp 1
21 Balanced initiative gear 1
22 Pair gearwheel shaft 1
23 Pair gearwheel 1
24 Left crankcase comp 1
For installation, reverse the removal
procedure.
