MAINTENANCE AND ADJUSTMENT OF THE UTV
- 90 -
CHANGING THE ENGINE OIL
Place the vehicle on a level surface.
1. Start the engine and let it warm up for several
minutes.
2. Stop the engine and place an oil pan under the
engine.

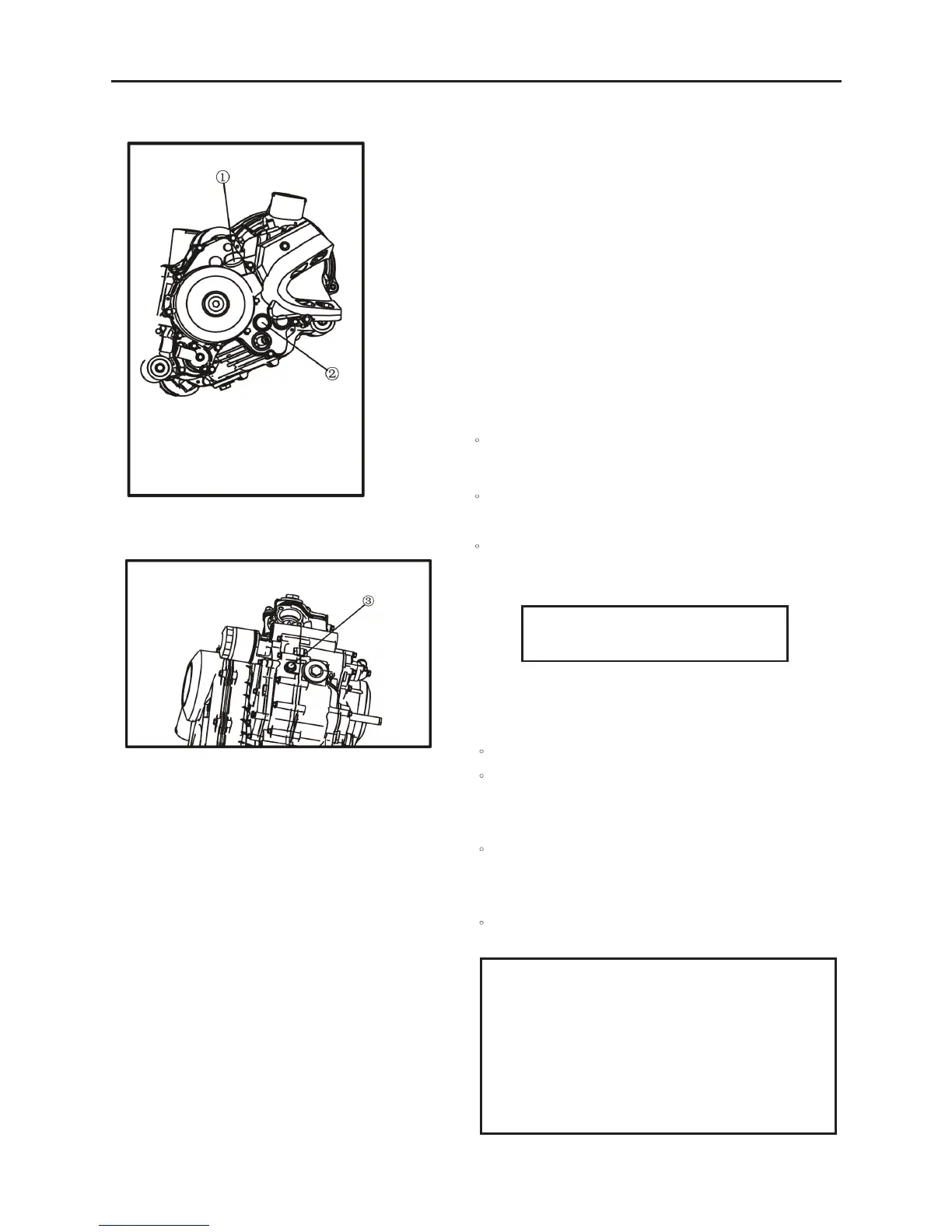

3. Remove:
dismount the following parts step by stem
① oil gauge
③ oil-draining blind nut
4. If you need to change the oil filter core, please
follow the steps below exactly (Generally change
the oil and core after run in-time.)
·
Take out the oil gauge and oil-draining blind nut,
drain the oil.
·
Lubricate the O-ring of the new oil filter cartridge
with a thin coat of lithium-soap-based grease.
·
Tighten the new oil filter cartridge to specification
with an oil filter wrench.
Oil filter cartridge
17 Nm (1.7 m · kg)
.
5. Install：
·
oil gauge ①
·
oil-draining blind nut ③
6. conditions
·
Change for new oil filter before impouring oil to
crankcase, and make sure it is in good working
condition before assembling.
·
make sure that the oil reach regular level when the
vehicle is placed on flat ground.
Oil level of gearbox
Periodic oil change
The oil capacity after the engine is
disassembled and reassembled.
1.5L
The oil should be put into the engine for after
all the oil is drawn out
1.5L
MAINTENANCE AND ADJUSTMENT OF THE UTV
- 91 -
7. Install:
·
engine oil filler plug
8. Worm up the engine for a few minutes, and then
stop the engine.
9. Check:
·engine (for engine oil leaks)
·
refer to Chapter 4 check the level of engine oil
10. Check:
·engine oil pressure
