Hisun HS200UTV - Cylinder Head and Cylinder Head Cover

-126-
ENGINE
- 126 -

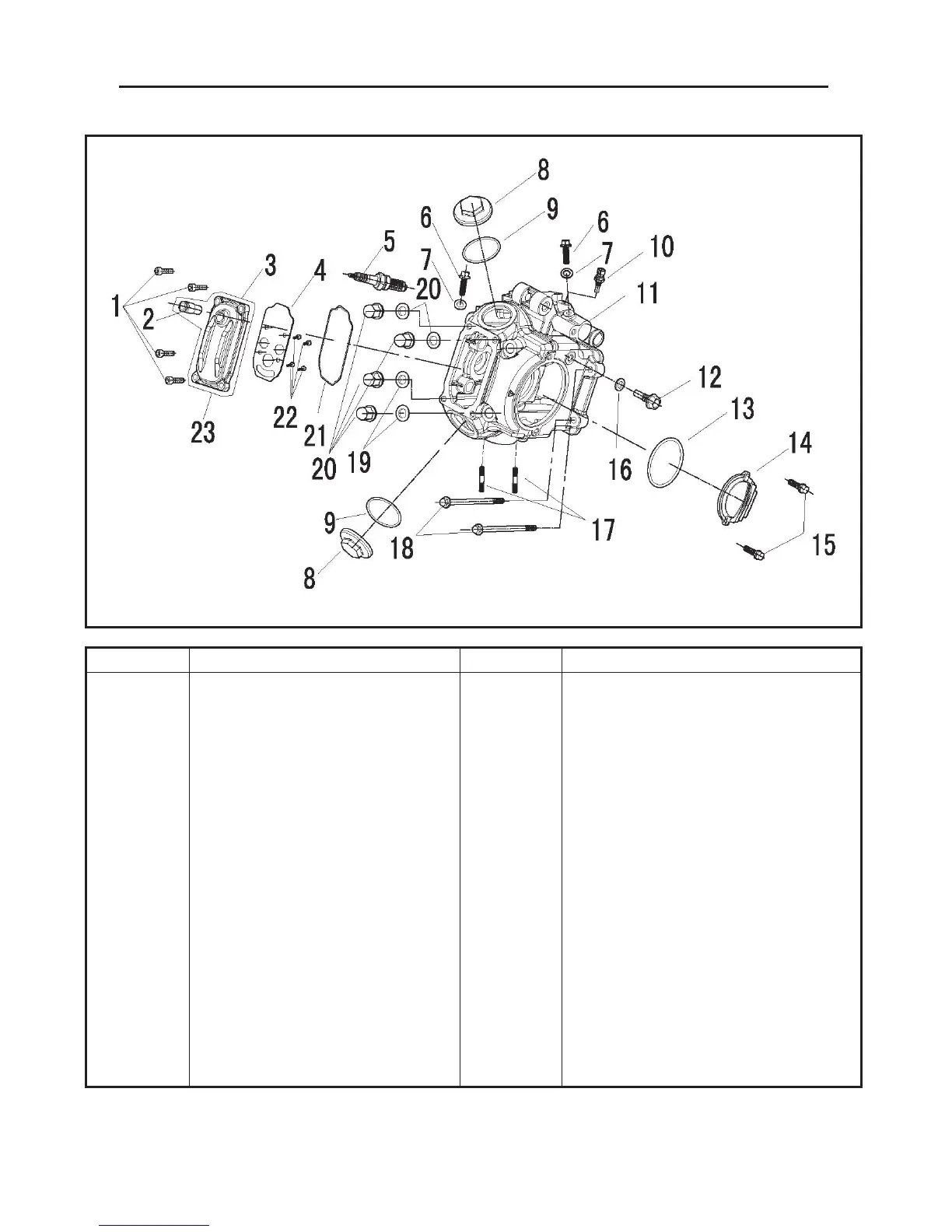

CYLINDER HEAD AND CYLINDER HEAD COVER
No. Part Name Qty Remarks
Removing the cylinder head and
cylinder head
Remove the parts in the order listed.
1
Hexagon socket screw M6×20
4
2
Exhaust nozzle
1
3
Cylinder head cover
1
4
Oil vapor separation plate
1
5
Spark plug
1
6
Flange bolt M6×14
2
7
Aluminum gasket 6×12×1.5
2
8
Valve cover
2
9
O-RING Φ36×3.5
2
10
Water temperature sensor
1
11
Cylinder head comp
1
12
Tension plate shaft bolt M8×32
1
13
O-Ring Φ75×2.5
1
ENGINE
- 127 -
No. Part Name Qty Remarks
14
Left cylinder head cover
1
15
Flange bolt M6×20
2
16
Washer Φ8×Φ15×2
1
17
Stud bolt M8×45
2
18
Flange bolt M6×110
2
19
Copper washer Φ10.5×Φ18×2
4
20
Cap nut M10
4
21
O-Ring Φ78×3
1
22
Hexagon socket screw M4×12
4
23
Cylinder head cover assembly
1
For installation, reverse the removal
procedure.
