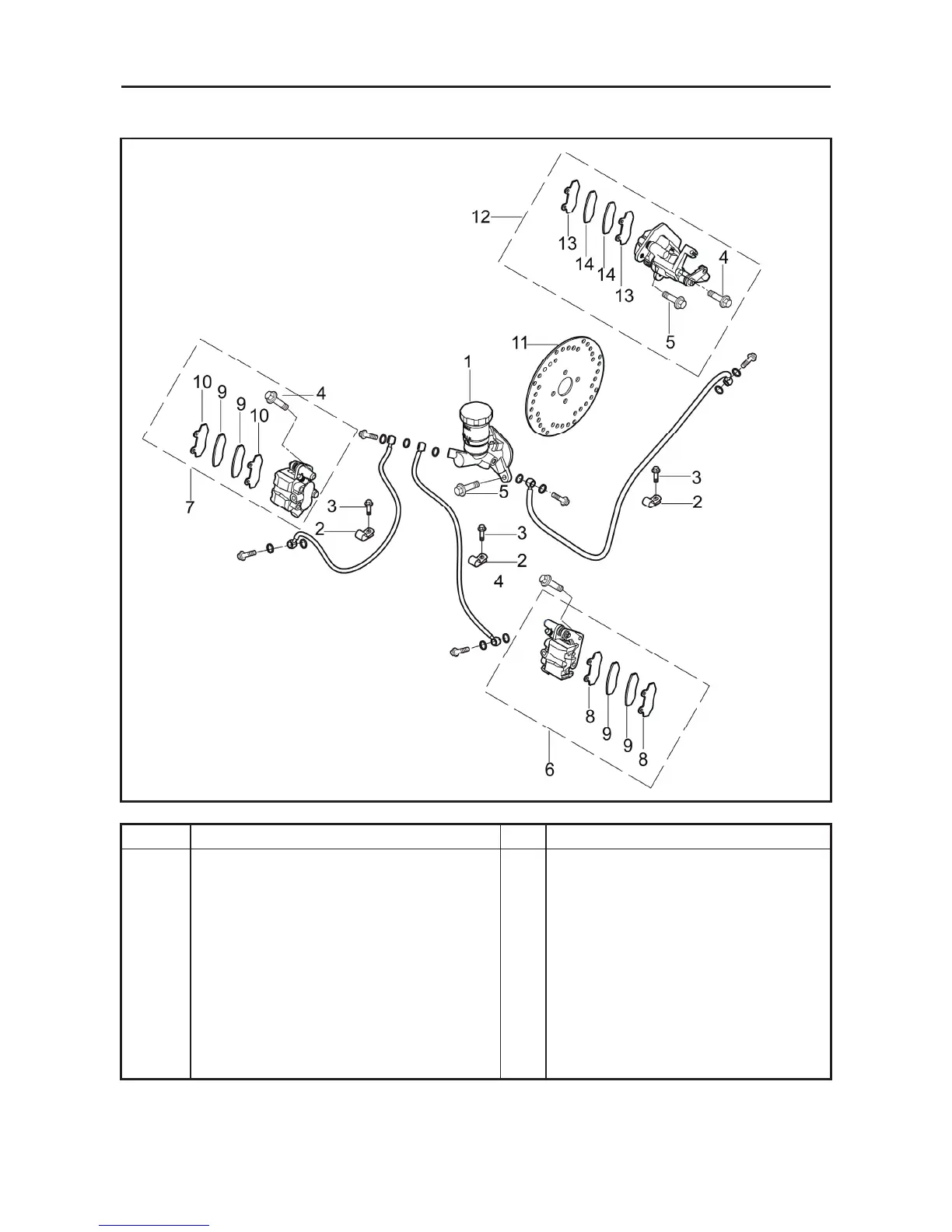

Front and Rear Disk Brake Parts
Removing the disk brake parts
1
Auxiliary bumper 1
2
Cable Clip 5
3
Hexagon flange bolt M6×16 5
4
Hexagon flange self-locked nut M8×25 6
5
Hexagon flange self-locked nut M8×30 4
6
Front left brake caliper 1
7
Front right brake caliper 1
8
Front left outer brake pad assy. 2
9
Front inner brake pad assy. 4
CHASSIS
- 187-
10
Front right outer brake pad assy. 2
11 Braking plate 1
12 Rear brake caliper assy. 1
13 Rear outer brake pad assy. 2
14 Rear inner brake pad assy. 2
