Hisun HS200UTV - Crankcase and Oil Pump

-154-
ENGINE
- 154 -

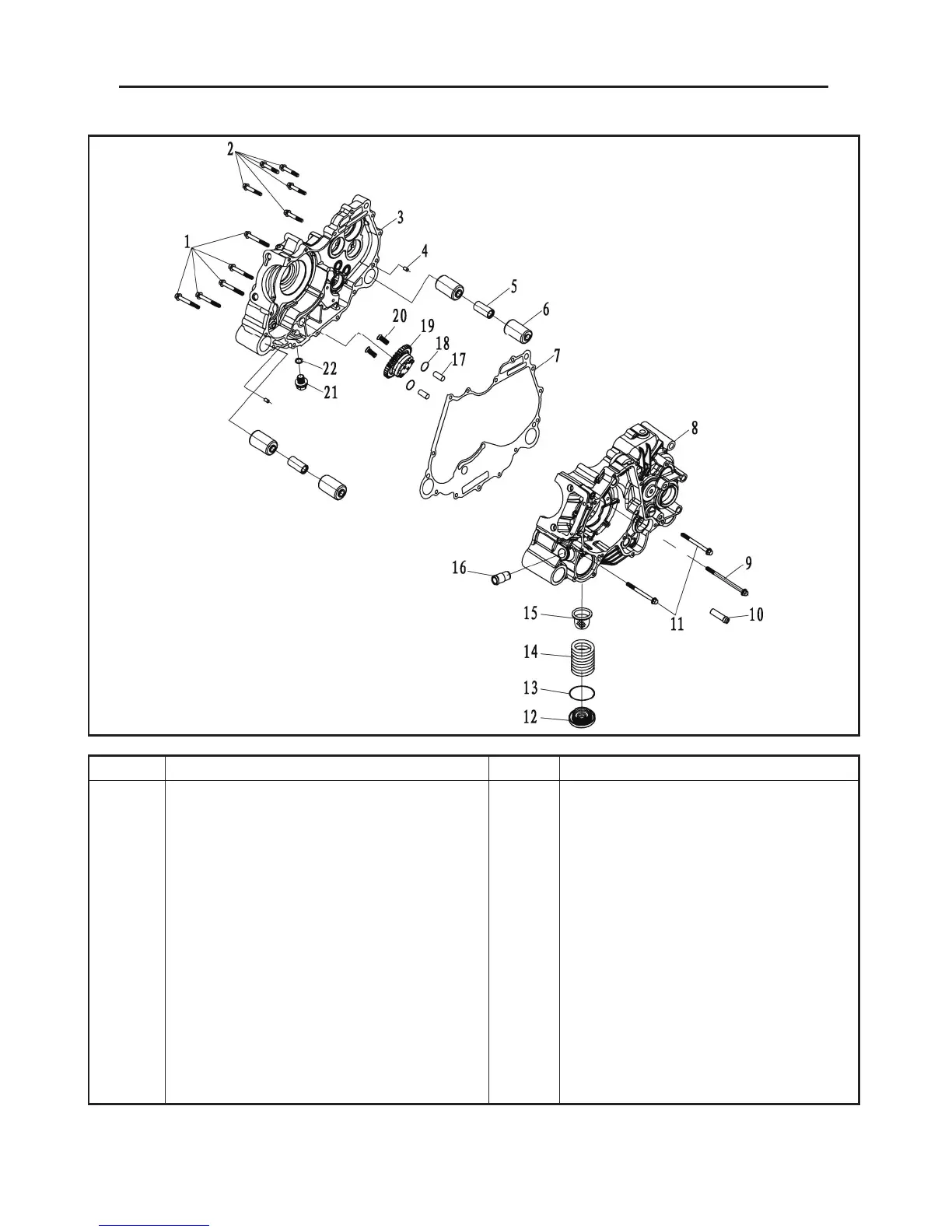

CRANKCASE AND OIL PUMP
No. Part Name Qty Remarks
Removing the crankcase and oil pump Re move the parts in the order listed.
Crankcase separation
1
Flange bolt M6×55
5
2
Flange bolt M6×355
5
3
Right crankcase comp
1
4
Dowel pin Φ8×12
2
5
Washer Φ10.5×Φ19×38
2
6
Damping bush
4
7
Crankcase gasket
1
8
Left crankcase comp
1
9
Flange bolt M6×100
1
10
Transmission exhaust nozzle
1
11
Flange bolt M6×70
2
ENGINE
- 155 -
No. Part Name Qty Remarks
12
Oil drain screw
1
13
O-ring 36×3.5
1
14
Mesh spring
1
15
Oil strainer
1
16
Water pipe connector Φ18
1
17
Locating pin 8×12
2
18
O-ring 9×2
2
19
Oil pump comp
1
20
Cross recessed countersunk head screw M6×30
2
21
Bolt M14×1.5×16
1
22
Aluminum gasket 14×22×1
1
For assembly, reverse the disassembly
procedure.
