-201-

CHASSIS

- 201-

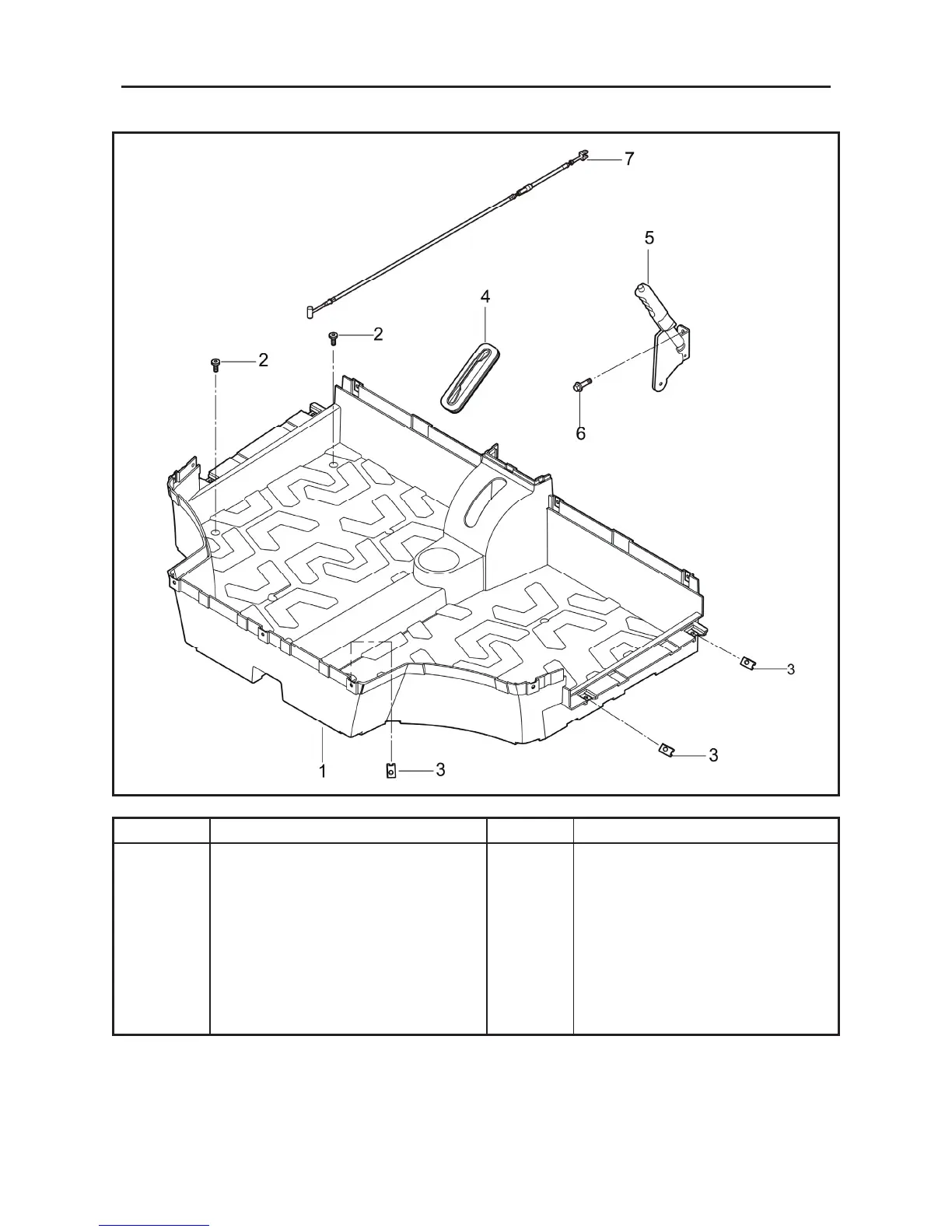

FOOTREST PART

No. Part Name Qty Remarks

Removing the footrest part

1 Footrest protector 1

Socket hexagon flat head screws M6×16

3 Clip for bolt M6

2 9

4 Dust sleeve, parking pedal 1

5 Parking system 1

6 Hexagon flange bolt M8×16 2

7 Parking cable 1
