INSTALLING THE BRAKE MASTER CYLINDER
1. Install:
• brake master cylinder
16Nm (1.6 m · kg,11 ft · lb)
2. Install:
• brake pipe
19Nm (1.9 m · kg,13 ft · lb)
• washer plate
• brake hose
• union bolt
27Nm (2.7 m · kg,19 ft · lb)
3. Fill:
• brake fluid reservoir
Must use DOT4 Brake Fluid
NOTE:
Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled brake
fluid immediately.
4. Air bleed:
• brake system

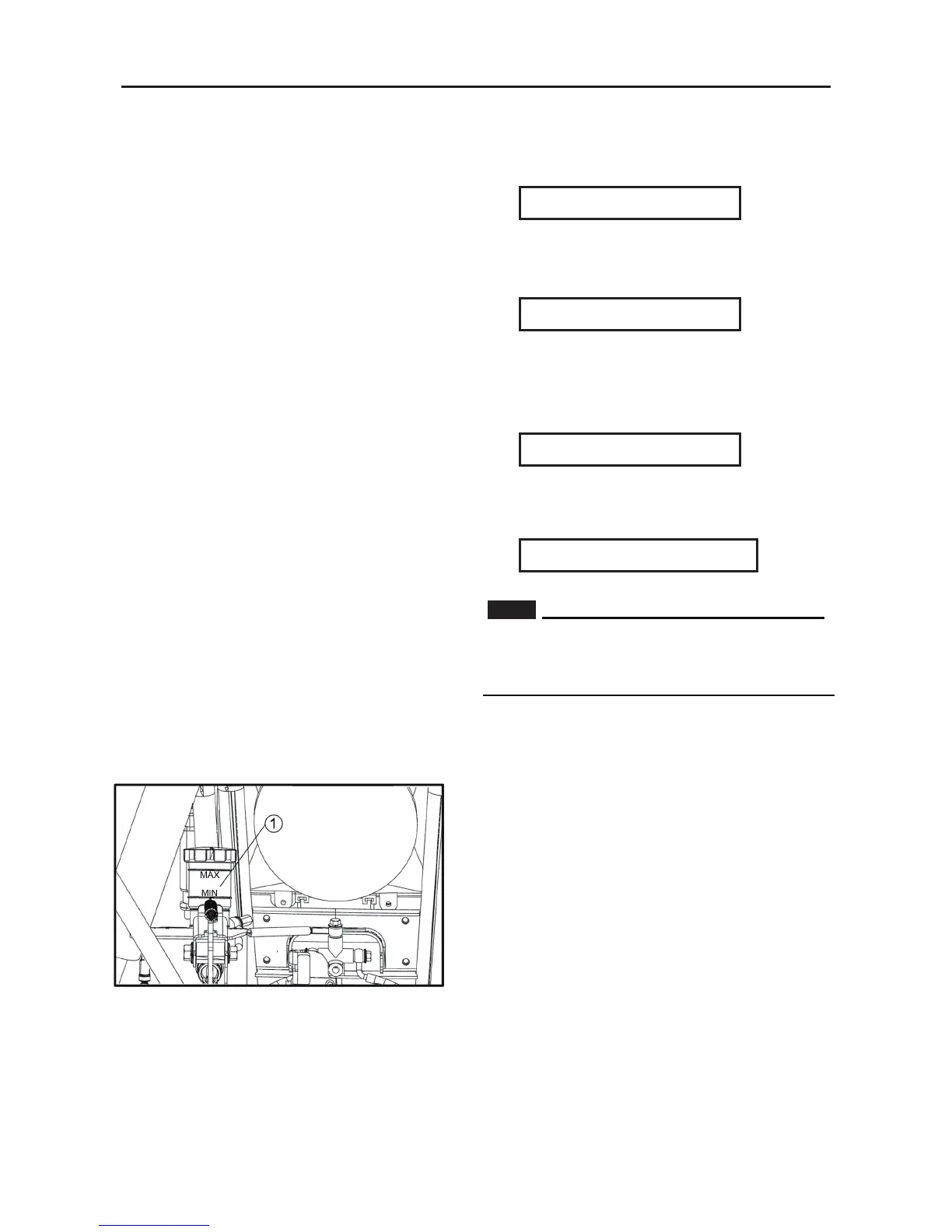

5. Check:
• brake fluid level
Brake fluid level is under the “MIN” level line
Fill up.
CHASSIS
- 201-
FOOTREST PART
No. Part Name Qty Remarks
Removing the footrest part
1 Footrest protector 1
2
Socket hexagon flat head screws M6×16
8
3 Clip for bolt M6
×
2 9
4 Dust sleeve, parking pedal 1
5 Parking system 1
6 Hexagon flange bolt M8×16 2
7 Parking cable 1
