Hisun HS200UTV - Primary and Secondary Sheaves

-150-
ENGINE
- 150 -

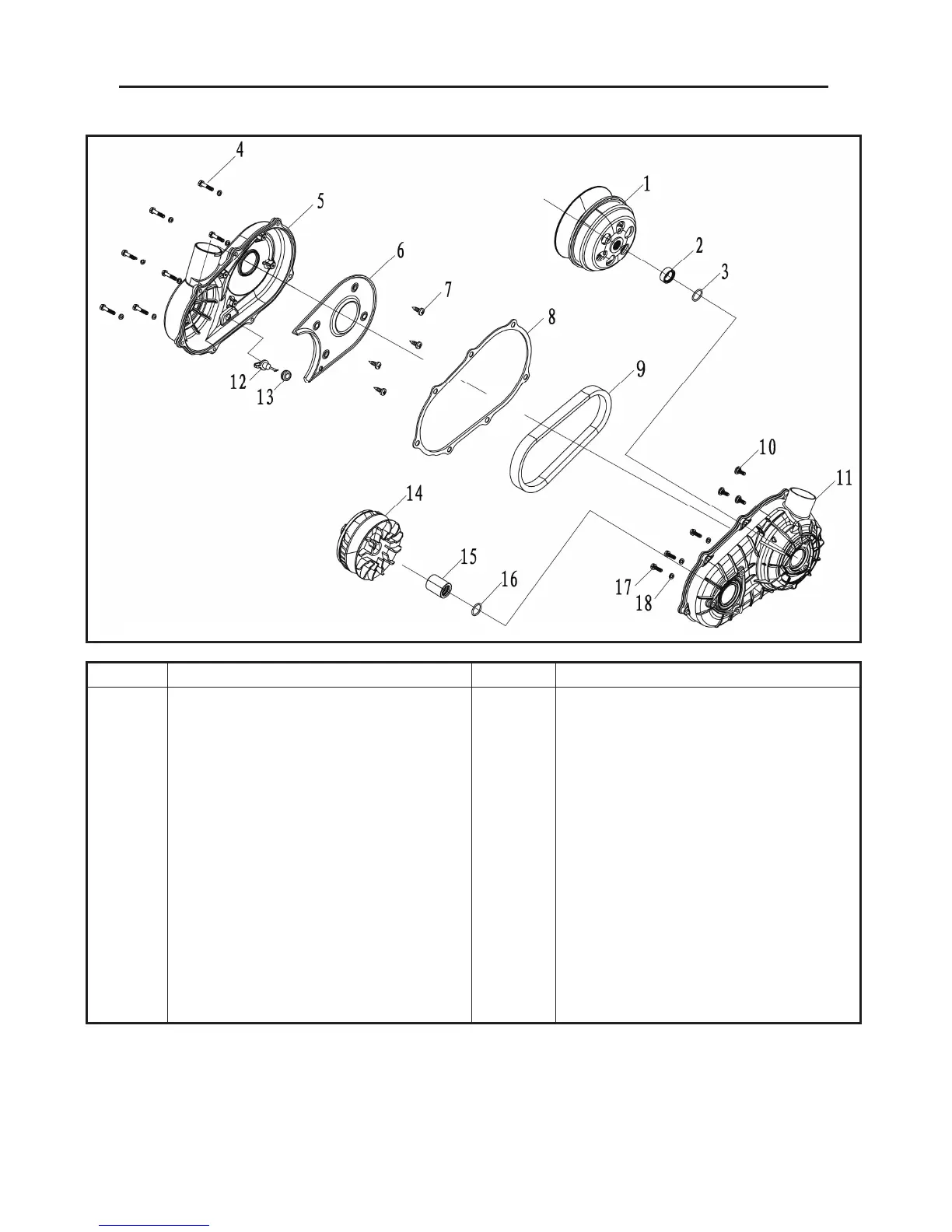

PRIMARY AND SECONDARY SHEAVES
No. Part Name Qty Remarks
Removing the primary and secondary
sheaves
Remove the parts in the order listed.
Engine assembly
1
Secondary clutch components
1
2
Bush Φ30×12
1
3
O-ring 20×2.3
2
4
Flange bolt M6×30
6
5
Cover comp clutch
1
6
Clapboard
1
7
Countersunk head tapping screws 4.2×16
1
8
Gasket-clutch cover
1
9
CVT drive belt
1
10
Hexagon socket countersunk head screws M6×20
3
ENGINE
- 151 -
No. Part Name Qty Remarks
11
Cover seat comp clutch
1
12
Piled head clutch cover
1
13
Rubber sheath
1
14
Primary clutch component
1
15
Bush Φ32×40
1
16
O-ring 20.7×2.6
1
17
Flange bolt M6×25
3
18 Bush Φ6.5×5 3
For assembly, reverse the disassembly
procedure.
