NOTE:
Constant amperage chargers are not suitable
for charging MF batteries.
3. Install:
• battery
• Connect:
battery leads

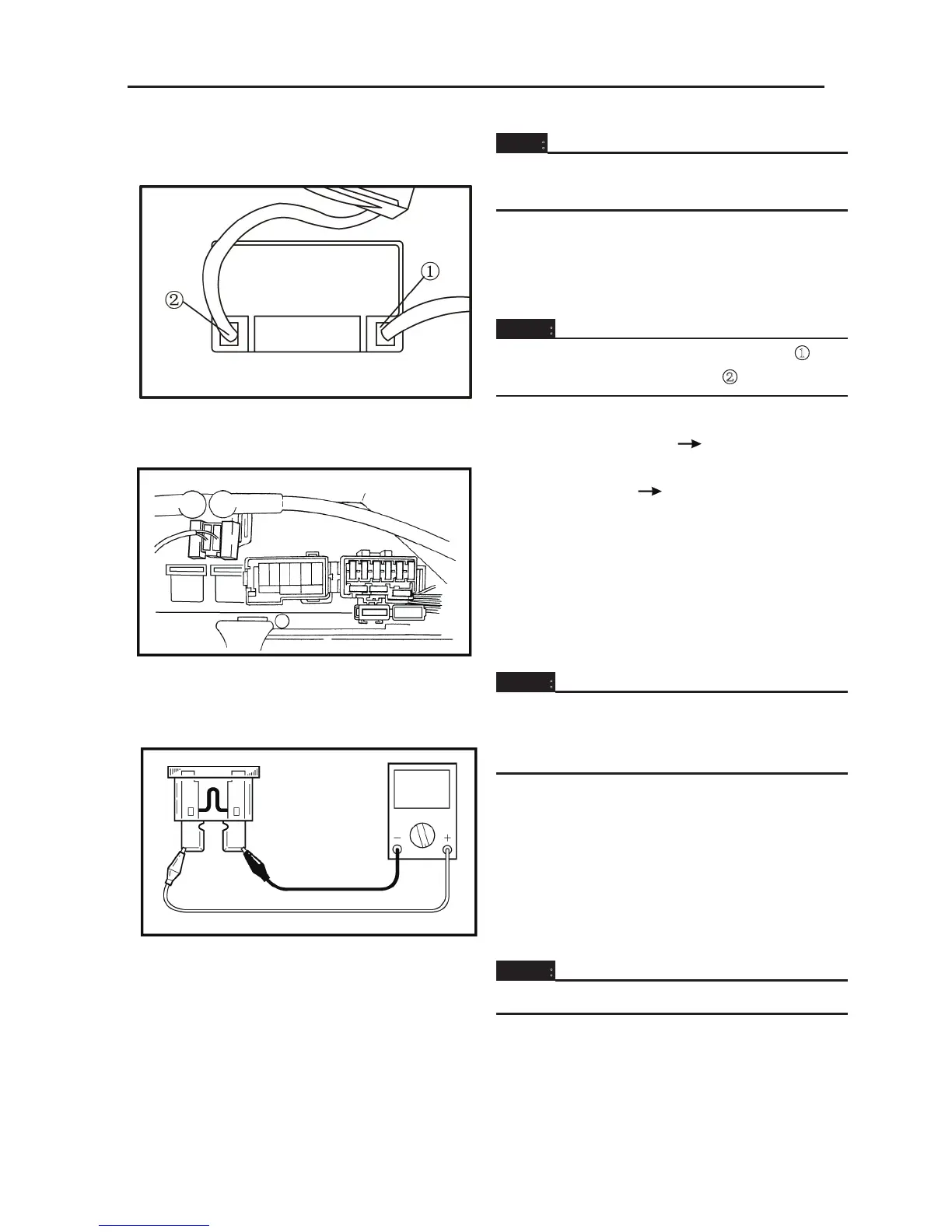

NOTE:
First, connect the positive battery lead ①, and
then the negative battery lead ②.
• Check:
battery terminals Dirt
Clean with a wire
brush.
Loose connection
Connect properly.
• Lubricate:
battery terminals
• Install:
battery case cover
• Close the hood.
CHECKING THE FUSES
NOTE:
Always turn off the main switch when
checking or replacing a fuse. Otherwise, a
short circuit may occur.
1. Remove:
• lift the hood up.
• battery case cover
2. Check:
• fuses
a. Connect the pocket tester to the fuse and check
it for continuity
NOTE:
Set the tester to the “Ω × 1” position.
• blown fuse
MAINTENCE AND ADJUSTMENT OF THE UTV
- 119 -
.
b. If the tester indicates“∞”, replace the fuse.
3. Replace:
a. Turn off the ignition.
b. Install a new fuse of the proper amperage.
c. Turn on switches to verify operation of the
related electrical devices.
d. If the fuse immediately blows again, check the
electrical circuit.
Description
Current
rating
Quantity
Lighting
system fuse
15 A 1
Ignition 10 A 1
Terminal
(Auxiliary DC jack)
10 A 1
4WD(Four wheel
drive)
5A 1
Signaling
system fuse
10 A 1
Backup fuse 10 A 1
Reserve 15 A 1
Reserve 10 A 1
Reserve 5 A 1
WARNING
:
Ever use a fuse with a rating other than that
specified. Never use other materials in place of
a fuse. An improper fuse may
cause
extensive damage to the electrical
system, a
malfunction of the lighting and
ignition
systems and could possibly cause a fire.
4. Install:
• battery case cover
5. Close the hood.
.
