Hisun HS200UTV - Changing the Coolant

-94-
MAINTENCE AND ADJUSTMENT OF THE UTV
- 94 -

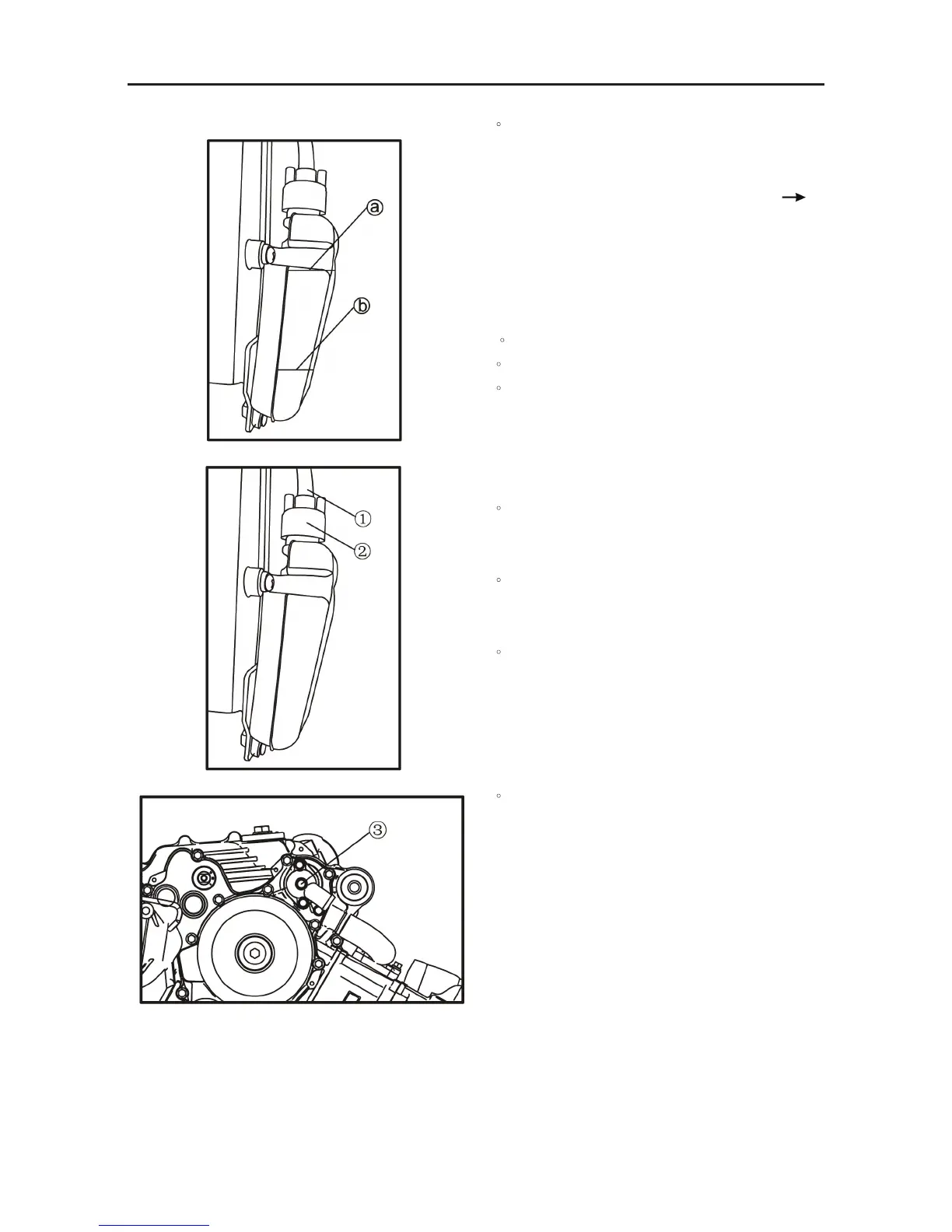

·coolant level
The coolant level should be between the
minimum level mark ○
a
and maximum level
mark ○
b
.Below the minimum level mark
Add the recommended coolant to the proper level.
CHANGING THE COOLANT
1.Remove:
Front faceplate
·
Disconnect coolant reservoir hose ① ；
·coolant reservoir cap ②；
· Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is used
instead of coolant, check and if necessary,
correct the antifreeze concentration of the
coolant；
·
Use only distilled water. However, soft water
may be used if distilled water is not available.
2. Drain:
·coolant
(from the coolant reservoir)
3. Connect:
·coolant reservoir hose
4. Remove:
·coolant drain bolt (water pump) ③(along with the
copper washer)
MAINTENCE AND ADJUSTMENT OF THE UTV
- 95 -
5. Remove:
·
radiator cap ①
WARNING
:
A hot radiator is under pressure. Therefore, do
not remove the radiator cap when the engine is
hot. Scalding hot fluid and steam may be blown
out, which could cause serious injury. When the
engine has cooled, open the radiator cap as
follows: Place a thick rag or a towel over the
radiator cap and slowly turn the radiator cap
counterclockwise toward the detent to allow
any residual pressure to escape.
When the hissing sound has stopped, turn
the radiator cap counterclockwise while
pressing down on it and then remove it.
6. Drain:
·coolant
7. Disconnect:
·coolant outlet hose ②
·water pump inlet hose③
8. Drain:
·coolant
9. Check:
·copper washer ①
·coolant drain bolt ②
Damage
Replace.
10. Install:
·
coolant drain bolt (water pump) T R.
10 Nm (1.0 m · kg, 7.2 ft · lb)
11. Connect:
·
water pump inlet hose
·coolant outlet hose
