Hisun HS200UTV - Rear Wheels

-204-
CHASSIS
- 204-

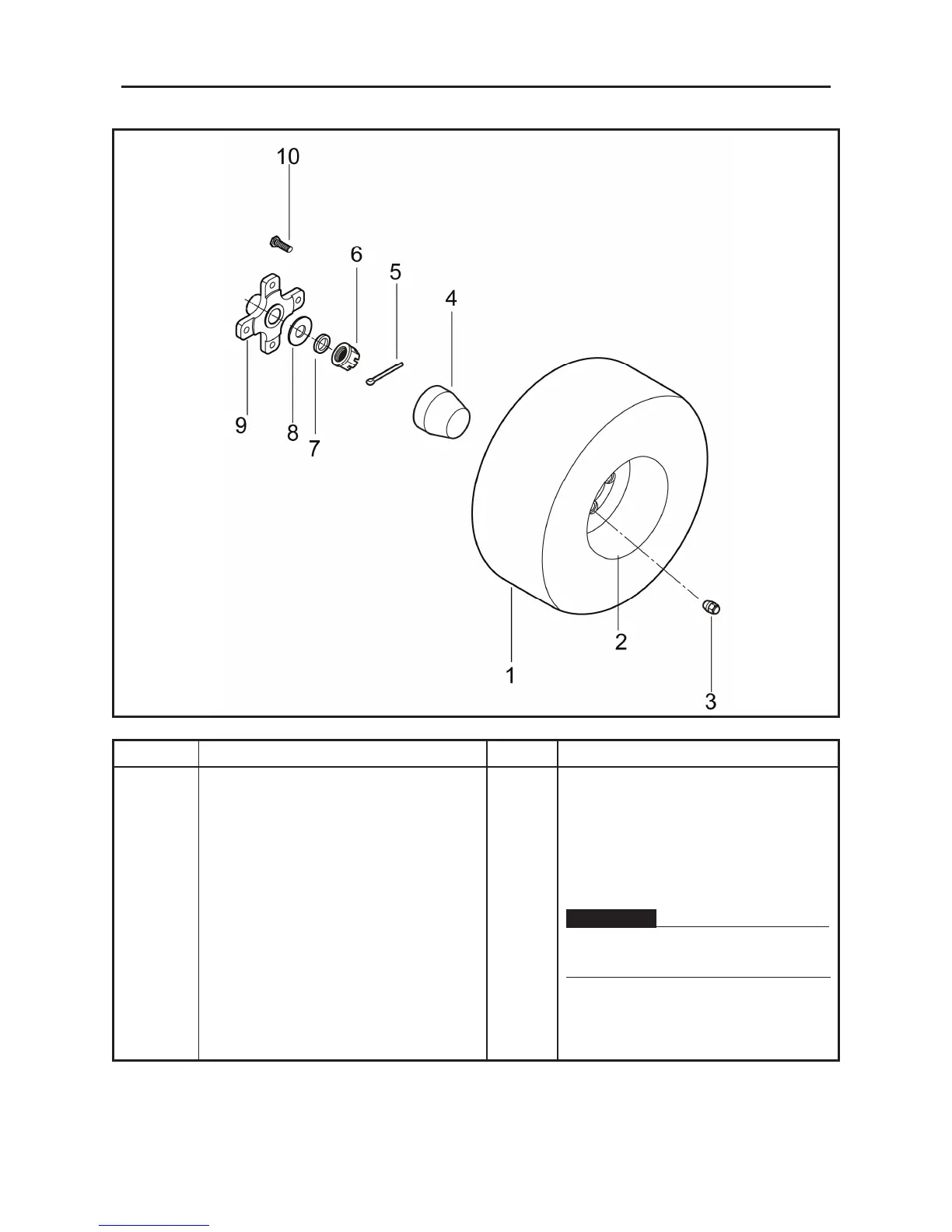

REAR WHEELS
No. Part Name
Qty Remarks
Removing the rear wheel
1
Rear tyre 2
2
Rear wheel rim 2
3
Nut M10 8
4
Wheel decoration cover 2
5
Pin 2.5×60
2
WARNING:
Securely support the vehicle so
There is no danger of it falling over.
6
Nut M20×1.5
2
7
Spring washer Φ20 2
8
Washer Φ20×Φ42×4
2
9
Front hub 2
10
Bolt 2
CHASSIS
- 205-
CHECKING THE WHEEL TYRE
1. Check:
• wheel tyre
2. Measure:
• wheel runout
Over the specified limit
Replace the
wheel or check the wheel bearing play .①
3. Check:
• wheel balance
Out of balance
Adjust.
Wheel runout limit
Radial ②: 2.0 mm (0.08 in)
Lateral ③: 2.0 mm (0.08 in)
WARNING:
The profile depth falls below 3mm, Please
replace the tyre immediately.
• tire wear limit
○
a
CHECKING THE WHEEL HUB
1. Check:
• wheel hub ①
Cracks/damage
Replace.
• nuts (wheel hub)
loosen or distorted Replace or
tighten
