Hisun HS200UTV - Balance Shaft

-156-
ENGINE
- 156 -

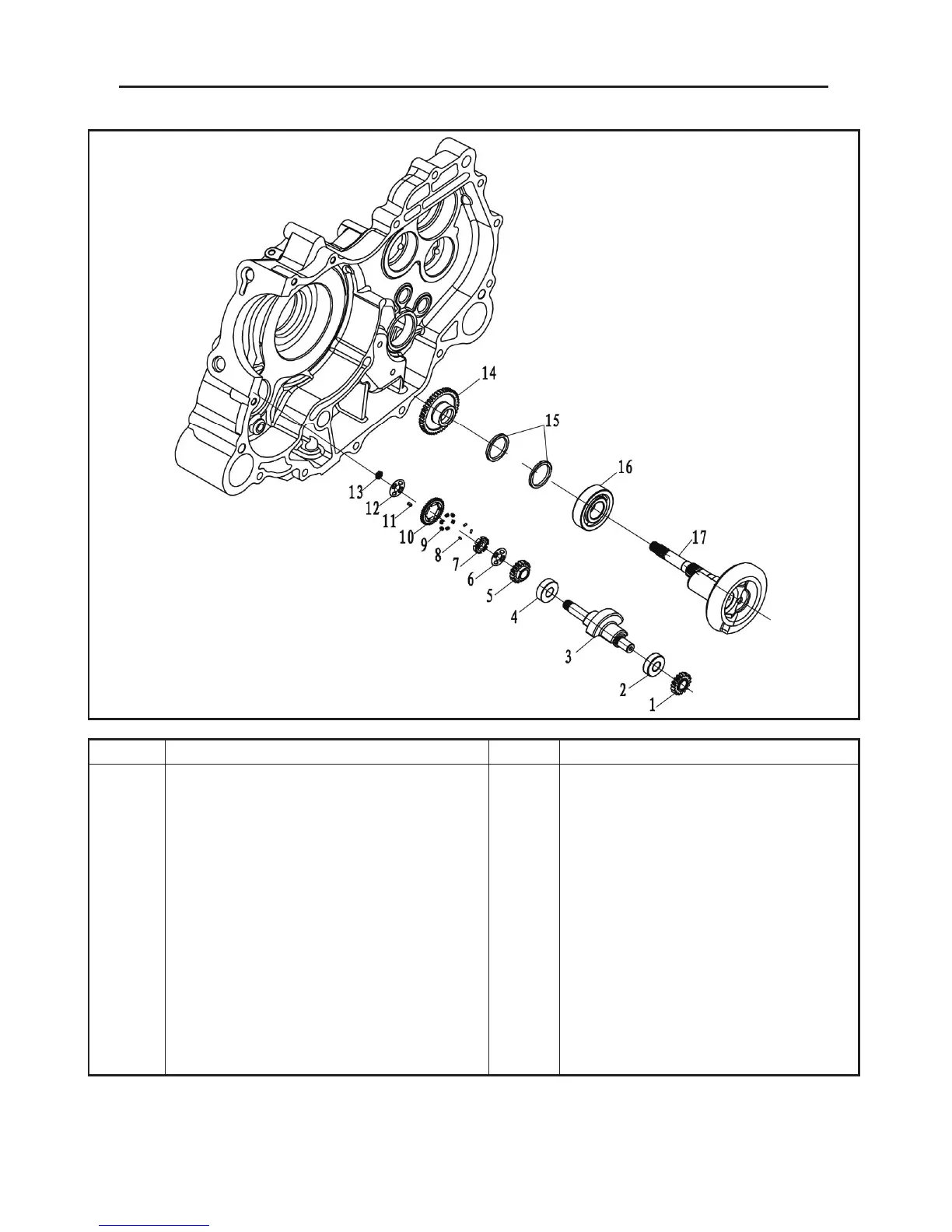

BALANCE SHAFT
No. Part Name Qty Remarks
Removing the balance shaft Re move the parts in the order listed.
1
Driving gear pump
1
2
Bearing 6004
2
3
Balance shaft
1
4
Oil pump driving tooth
1
5
Balance of tooth holder Ⅰ
1
6
Balance driven gear base
1
7
Pin Φ4.5×9.4
3
8
Buffer spring
6
9
Balance driven ring
1
10
Flat key B5×8
1
11
Balance of tooth holder Ⅱ
1
ENGINE
- 157 -
No. Part Name Qty Remarks
12
Balance driven gear
1
13
Nut 14×1
1
14
Balanced initiative gear
1
15 Oil seal 35×44×4 2
16 Balance the driving gear 1
17 balance shaft 1
For assembly, reverse the disassembly
procedure.
