NOTE:
• Apply engine oil onto the piston pin, piston
rings and piston.

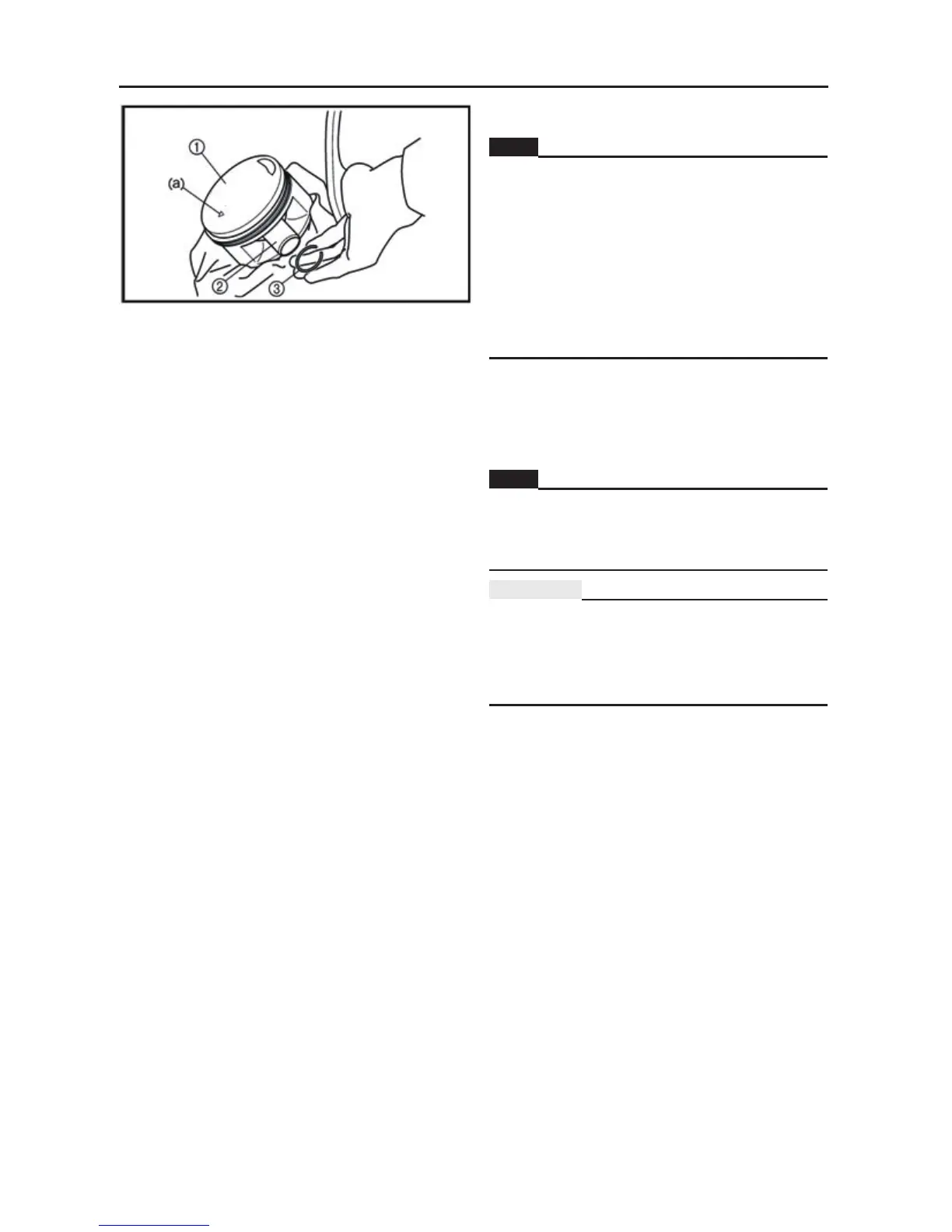

• Be sure that the arrow mark a on the piston
points to the exhaust side of the engine.
• Before installing the piston pin clip, cove
the crankcase with a clean rag to prevent
the piston pin clip from falling into the
crankcase.
2). Installing the cylinder
• cylinder
• O-ring
NOTE:
Install the cylinder with one hand while
compressing the piston rings with the othe
hand.
CAUTION:
• Be careful not to damage the timing chain
guide during installation.
• Pass the timing chain through the timing
chain cavity.
