1、MEASURE

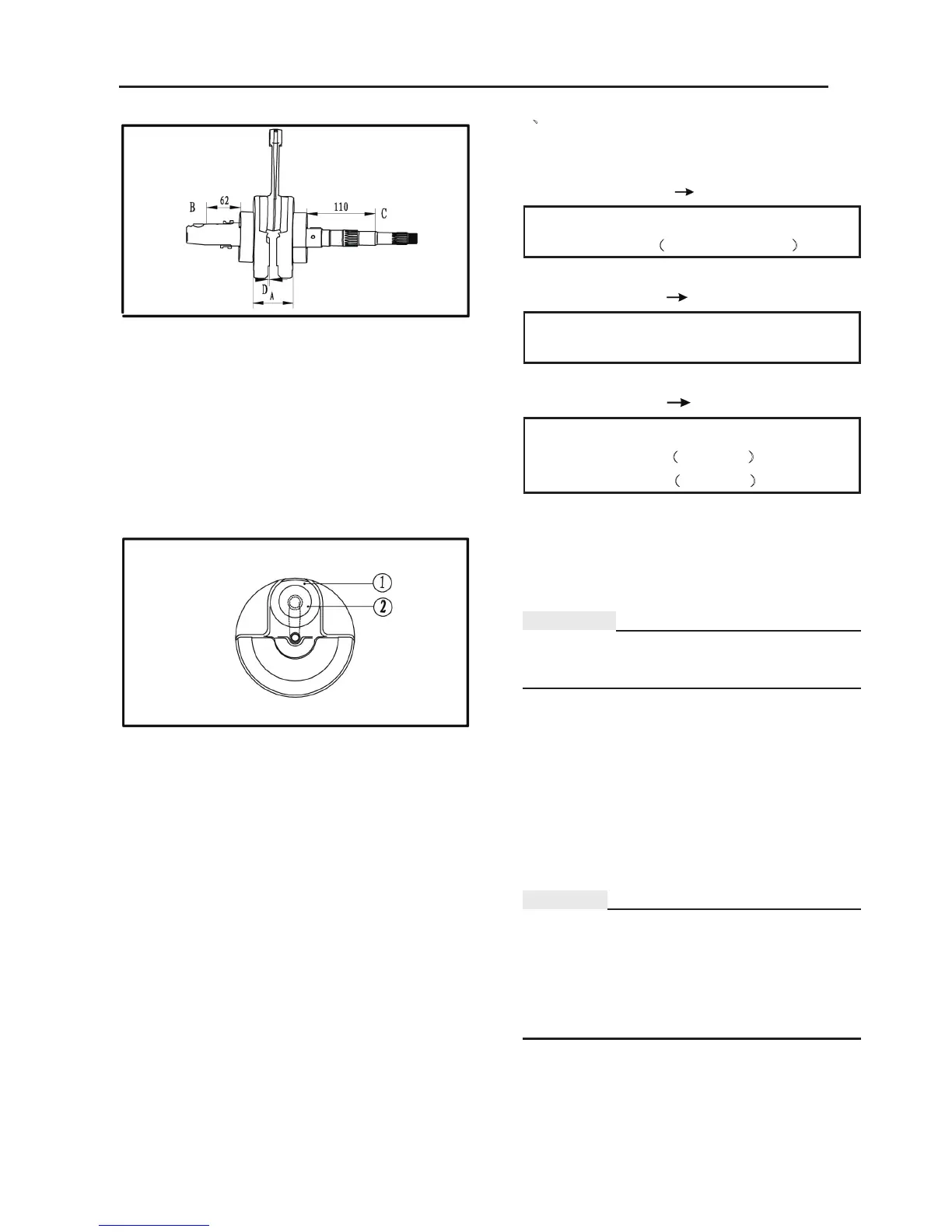

1). Measure the crankshaft
• crank width (A)
Out of specification
Replace the crankshaft.
Crank width
54.95~ 55 mm（2.1634~2.1654 in）
• side clearance (D)
Out of
specification
Replace the crankshaft
Big end side clearance Limit:
0.15 mm (0.0059 in)
• runout (b)(C)
Out of
specification
Replace the crankshaft.
Runout limit
(b): 0.03 mm （0.0012 in）
(C): 0.03 mm （0.0012 in）
The crankshaft ① and the crank pin ② oil
passages must be properly interconnected with
a tolerance of less than 1 mm (0.04 in).
.
CAUTION:
The buffer boss and woodruff key should be
replaced when removed from the crankshaft.
2). Assembling the crankcase
(1) Apply:
• sealant (Quick Gasket)
(to the mating surfaces of both case halves)
(2) Install:
• dowel pins
(3) Fit the left crankcase onto the right case. Tap
lightly on the case with a soft hammer
CAUTION:
Before installing and torque the crankcase
holding bolts, be sure to check whether the
transmission is functioning properly by
manually rotating the shift drum in both
directions.
