INSTALLING THE WHEEL HUB
1. Install:
• axle nut
260 Nm (26.0 m · kg, 190 ft · lb)

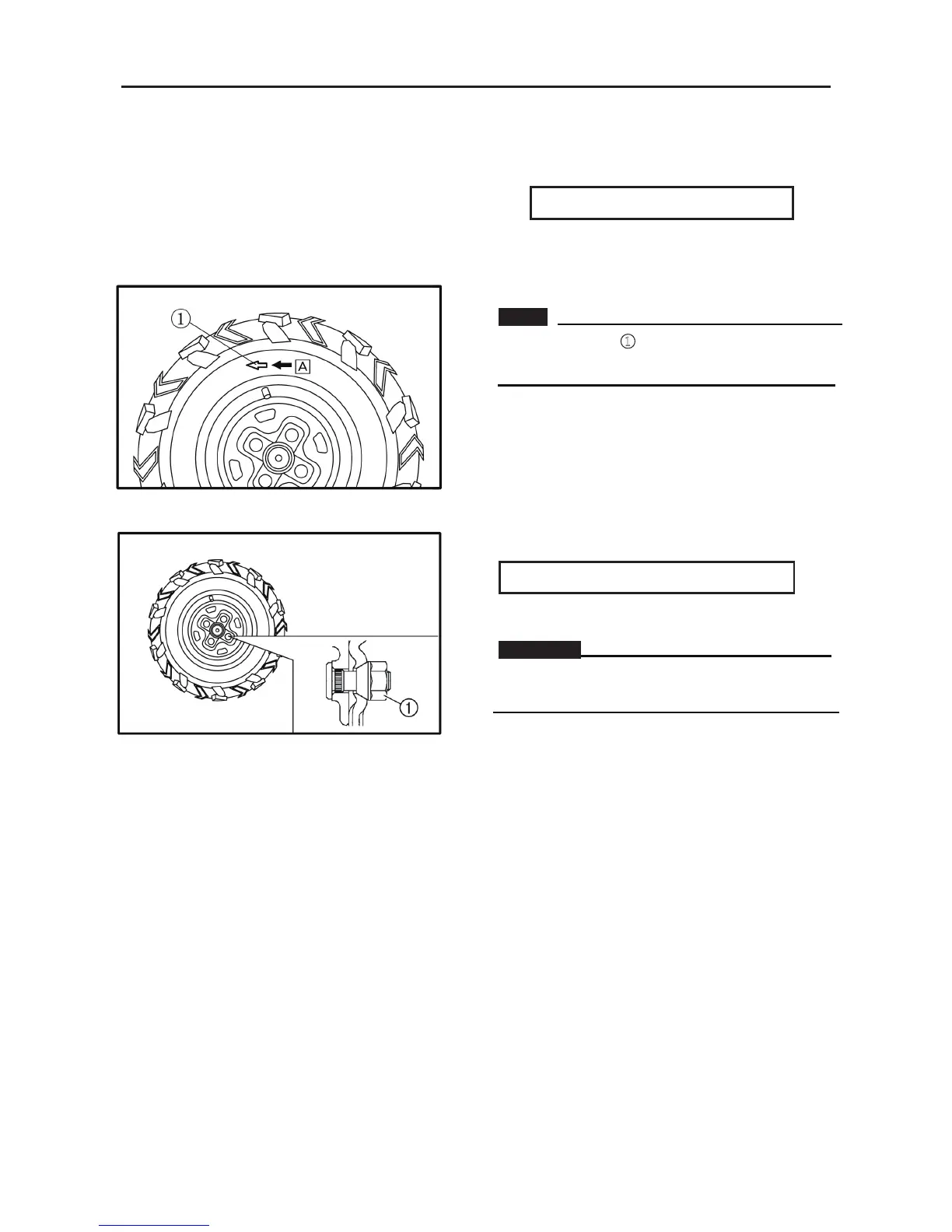

INSTALLING THE WHEEL TYRE
1. Install:
• wheel
NOTE:
The arrow mark ① on the tyre must point in
the direction of rotation □
A
of the wheel.
2. Tighten:
• wheel nuts ①
WARNING:
Tapered wheel nuts ① are used for both the
front and rear wheels. Install each nut
The angle of the conical bores is 60°
CHASSIS
- 207-
SPECIFICATION OF WHEEL AND TYRE
Wheel hub
Dimension
Tyre
Dimension
Tyre
Pressure
（Kpa /PSI）
Front
Wheel
10×5.0 AT 22×7-10 49/7
Rear
Wheel
10×8.0 AT 22×10-10 49/7
• Since wheels and tyres are crucial to the vehicle
operation, inspection for tyre pressure and profile
depth is necessary.
• To ensure maximum security and longer life
expectancy of the wheel, please periodically inspect
the tyre pressure and profile depth. Insufficient tyre
pressure can result in not only intensified wearing of
the tyre but also instability during the course of
operating the vehicle (such as hard turning).
Excessive tyre pressure can also reduce the friction
force between the tyre and ground, causing spinning
or lose of control. Therefore, please ensure the tyre
pressure strictly complies with figures shown in the
chart above.
• Before operating the vehicle each time, please
check if profile depth of the tyre is over worn, which
might result in spinning, instability, lose of control
and other potential security risk of the vehicle.
