Front Suspension and arm
INSTALLING THE FRONT ARMS AND FRONT
SHOCK ABSORBER
1. Install:
• front arms
• front shock absorber

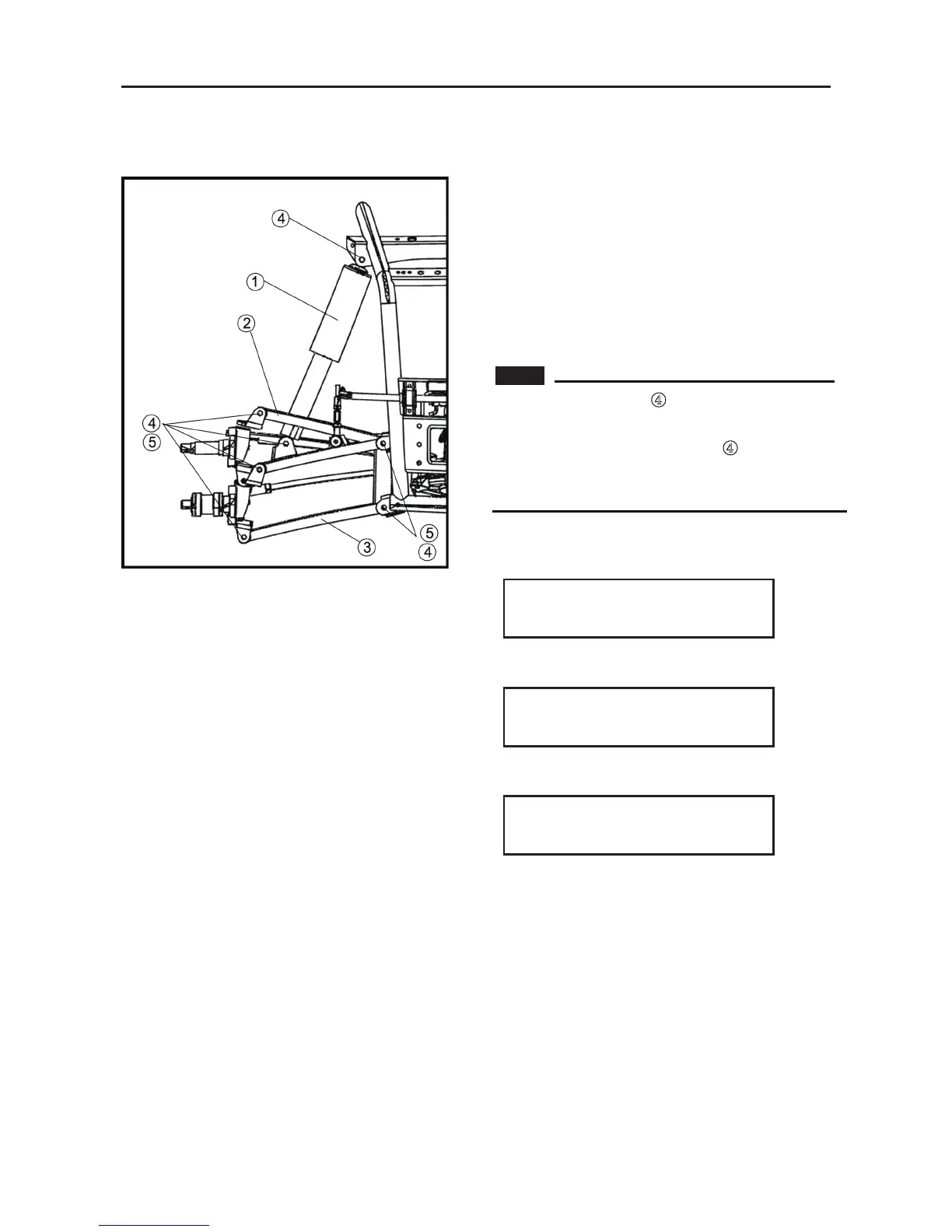

a. Install the front upper arm ② and front lower
arm ③.
NOTE:
• Lubricate the bolts ④ with
lithium-soap-based grease.
• Be sure to position the bolts ④ so that the
bolt head faces inward.
• Temporarily tighten the nuts ⑤.
b. Install the front shock absorber ①.
Nut ⑤
45 Nm (4.5 m · kg, 32 ft · lb)
c. Install the front knuckle.
Nut ⑤
45 Nm (4.5 m · kg, 32 ft · lb)
d. Tighten the nuts ⑤.
Nut ⑤
45 Nm (4.5 m · kg,32 ft · lb)
To Next Page
