-64-
SPECIFICATIONS
- 64-
Item Standard Limit

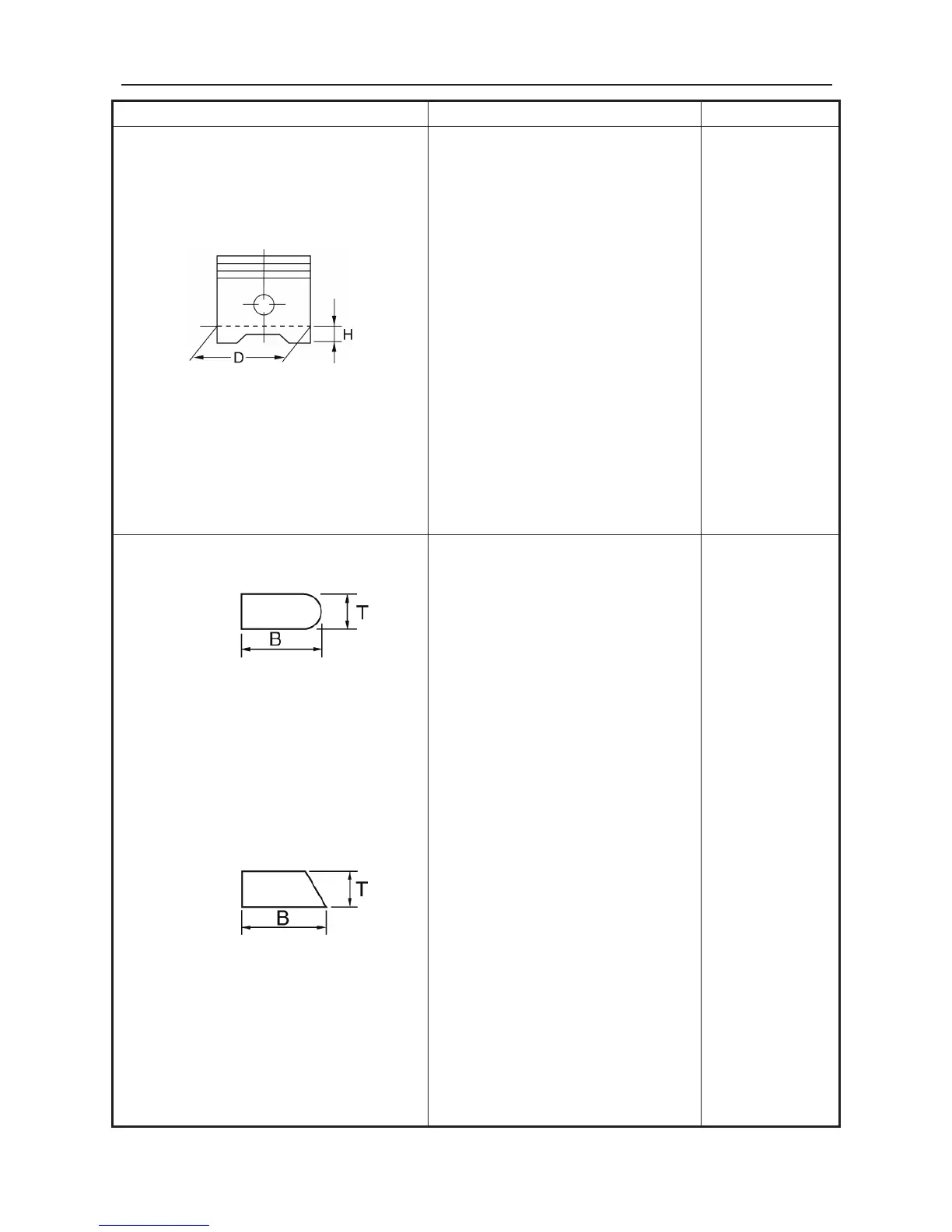

Piston
Piston to cylinder clearance
Piston size “D”
Measuring point “H”
Piston off-set
Off-set direction
Piston pin bore inside diameter
Piston pin outside diameter
0.035~ 0.060 mm
(0.0014 ~ 0.0024in)
65.455 ~ 65.465mm
(2.5770 ~ 2.5774 in)
10 mm (0.3937 in)
0.5mm(0.0197 in)
Intake side
15.002 ~15.008mm
(0.5906 ~ 0.5909in)
15.005 ~ 15.010 mm
(0.5907 ~ 05909 in)
0.15 mm
(0.0059 in)
----
----
----
----
----
----
----
Piston rings
Top ring
Type
Dimensions (B× T) 
End gap (installed)
Side clearance (installed)
2nd ring
Type
Dimensions (B × T)
End gap (installed)
Side clearance
Barrel
2.6 ×0.8 mm
(0.1024 ×0.0315in)
0.10 ~ 0.25mm
(0.0039~ 0.0098 in)
0.04 ~ 0.08 mm
(0.0016 ~ 0.0031 in)
Taper
2.6×1.0mm
(0.1024~0.0394 in)
0.20 ~ 0.35mm
(0.0079 ~ 0.0138in)
0.03 ~ 0.07 mm
(0.0012 ~ 0.0028 in)
----
----
----
----
----
----
----
----
----
----
----
----
SPECIFICATIONS
- 65-
Item Standard Limit
Oil ring
Dimensions (B×T)
End gap (installed)
Side clearance
2.95×2.80mm
(0.1161×0.1102in)
0.20 ~ 0.80 mm
(0.0079 ~ 0.0315 in)
0.06 ~ 0.15 mm
(0.0024 ~ 0.0059 in)
----
----
----
Crankshaft
Crank width “A”
Runout limit C1
C2
Big end side clearance “D”
Big end radial clearance “E”
54.95~ 55mm
(2.1634 ~ 2.1654in)
0.015mm(0.0006in)
0.015mm(0.0006in)
0.15 ~ 0.30 mm
(0.0059 ~ 0.0118 in)
0.003 ~ 0.015 mm
(0.0001 ~ 0.0059 in)
----
0.03 mm
(0.0012 in)
0.03 mm
(0.0012 in)
1.0 mm
(0.0394 in)
Automatic centrifugal clutch
Clutch engagement speed
2500r/min
