2.5 Download
●Use this function when upgrading programs.
●Perform this function in the service personnel maintenance mode.
●Use the memory card to download programs on EZJ93 and EZJ102 boards.
●
Be sure to perform downloading when replacing the EZJ93 and EZJ102 boards.
●If the customer uses the password to engage password protection for maintenance
work, release the protection once, and after completing the maintenance work,
reset
the protection.

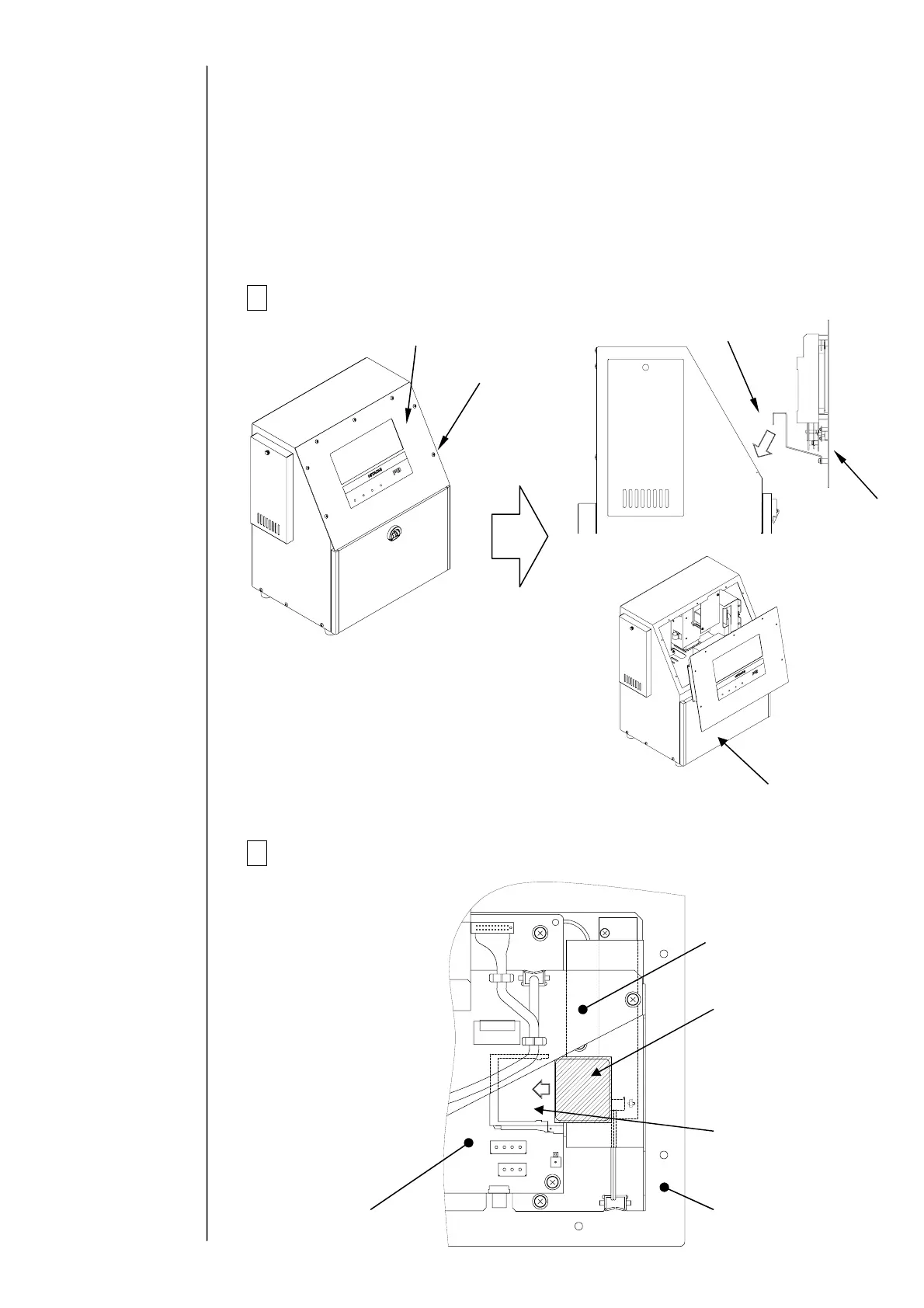

１Turn power off, remove the operation panel, and then hang it on the
unit.
２Insert the memory card (CF card) into the slot.
CF card
Slot
Inside of operation
panel viewed from
top
Cover
EZJ102 board
Operation panel
Caution:
Be careful that the wire harness does
not get caught on anything.
Do not hang the panel with the
maintenance cover open for a long time
(less than 10 minutes allowed): Leaving
it hanging more than 10 minutes could
deform the packing.
Operation Panel
Screw
Hang
Operation Panel
Maintenance cover
