Hitachi PB - EZJ103 Board (I;O Board)

3-12
 3.3.3EZJ103 board (I/O board)

【Function】
●The I/F signals with conveyer are connected.
Output signals : Ready, Fault, Warning
Input signals : Print target sensor, encoder (for product speed matching)


【Switch settings, check points, LEDs, etc.】
●Check points/LEDs

Symbol Name Content
LED1
Print target sensor Lights when the print target sensor turns on
LED2
Rotary encoder
input
Lights when the rotary encoder signal input for
speed follow-up turns on (during totem-pole)
LED3
Rotary encoder
input
Lights when the rotary encoder signal input for
product speed matching turns on (during open
collector)

【Caution for replacement】
●Be sure to turn power off before replacing the board.


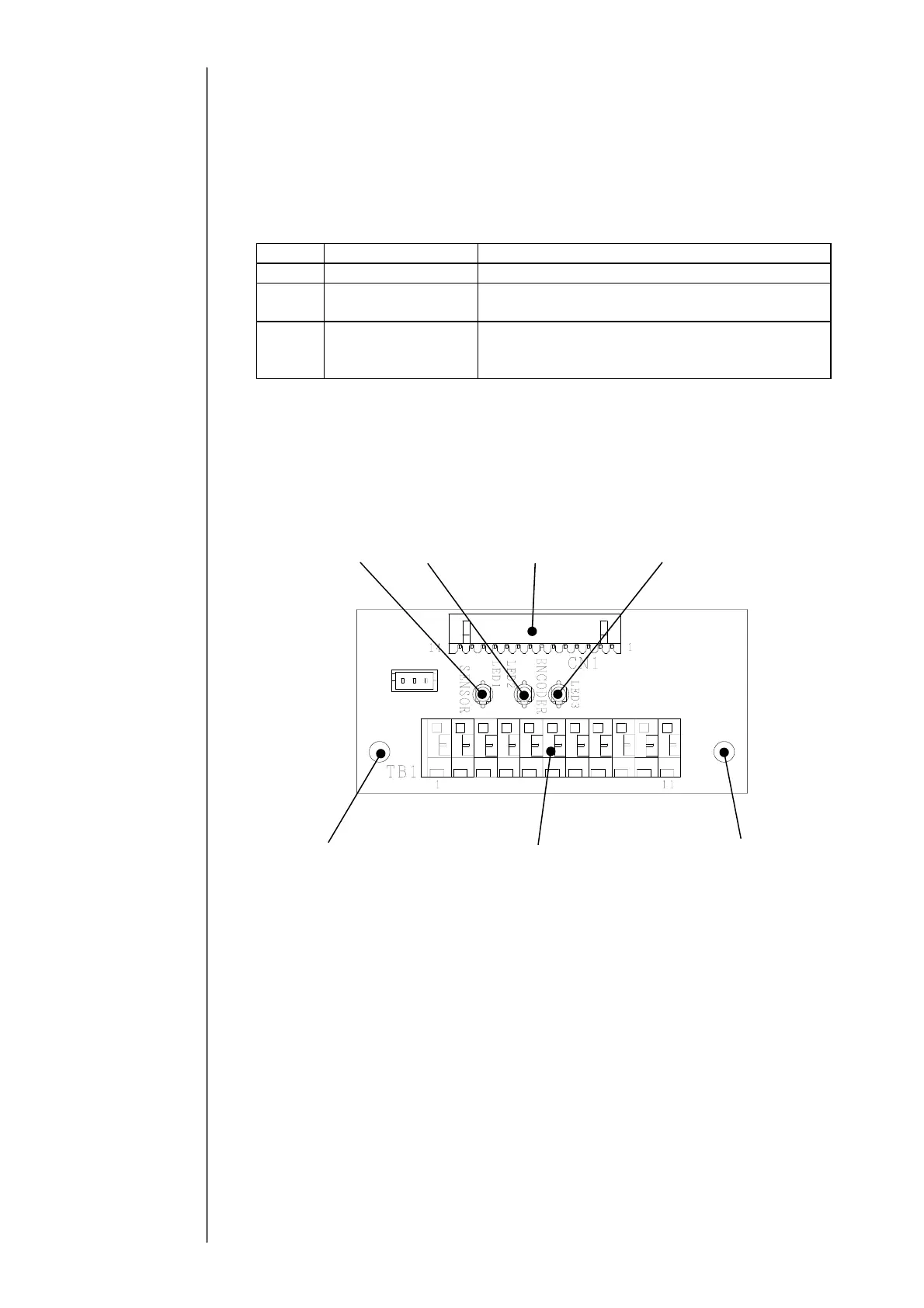

[External View of EZJ103 Board]
















Refer to the circuit diagram of EZJ102/103 for the allocation of TB1 pins for
signal connections
With respect to the
wiring, refer to
Instruction manual “1.5
Connection of signals”.

Setscrews (2 locations)
Setscrews (2 locations)
Connector for
EZJ93 board
TB1
LED1 LED3 LED2
