5-5
5.3 Deflecting base Replacement Procedure
When the LED protection glass is damaged or when the deflection base is extremely dirty
and cannot be rid of the abnormality even after cleaning, it is necessary to replace the
deflection base. Perform it by using the following procedure.
(1) Depressurize the printer.
(2) Remove all of the covers described in the item 5.1.
(3) Unscrew the nozzle setscrew, the deflecting electrode setscrew and the charged
electrode feed screw on the surface of the deflecting base.
(4) Unscrew the APH sensor setscrews, high-voltage electrical power lines setscrews,
the charged electrode feed screw and high-voltage GND screw on the rear side of the
head base.
The setscrews of the high-voltage electrical power lines are coated with silicon
rubber. Unscrew the screws by breaking the coating by a driver or the like.
(5) Remove the deflecting base by unloosening the deflecting base setscrew and replace
it with a new one.

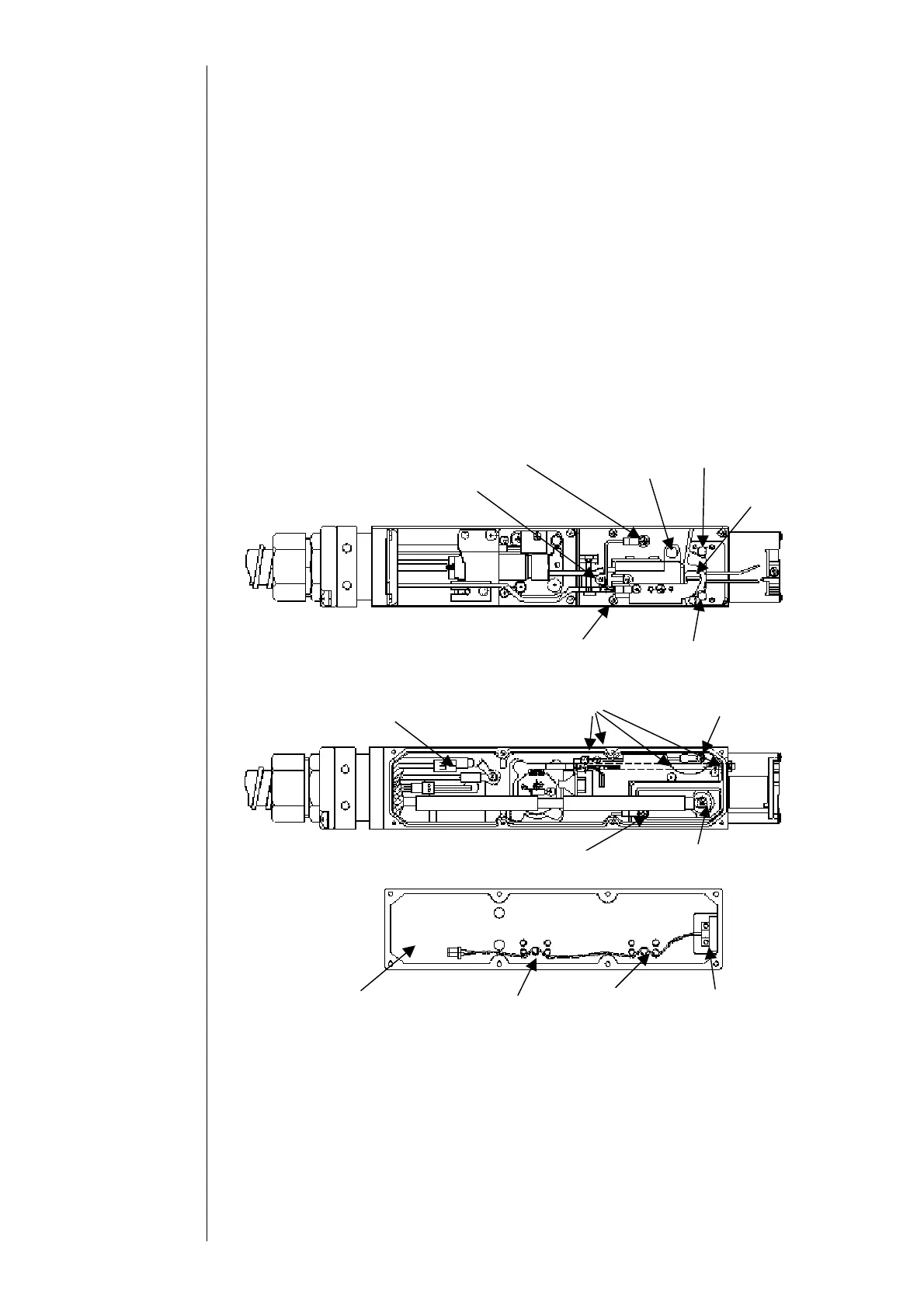

Deflecting electrode(+)
setscrew
Four deflecting base setscrews
Charged electrode feed screw
Nozzle setscrew
LED protective glass
Deflecting electrode(-) setscrew
Nozzle setscrew
Four APH sensor setscrews
High voltage GND screw
Cover switch connector
Head base rear cover
Cover switch
Entwine the bosses with the lead wire
High-voltage electrical power
line setscrew
Charged electrode feed
To Next Page
