2 Unit installation
22
SMGB0077 rev.0 - 01/2013

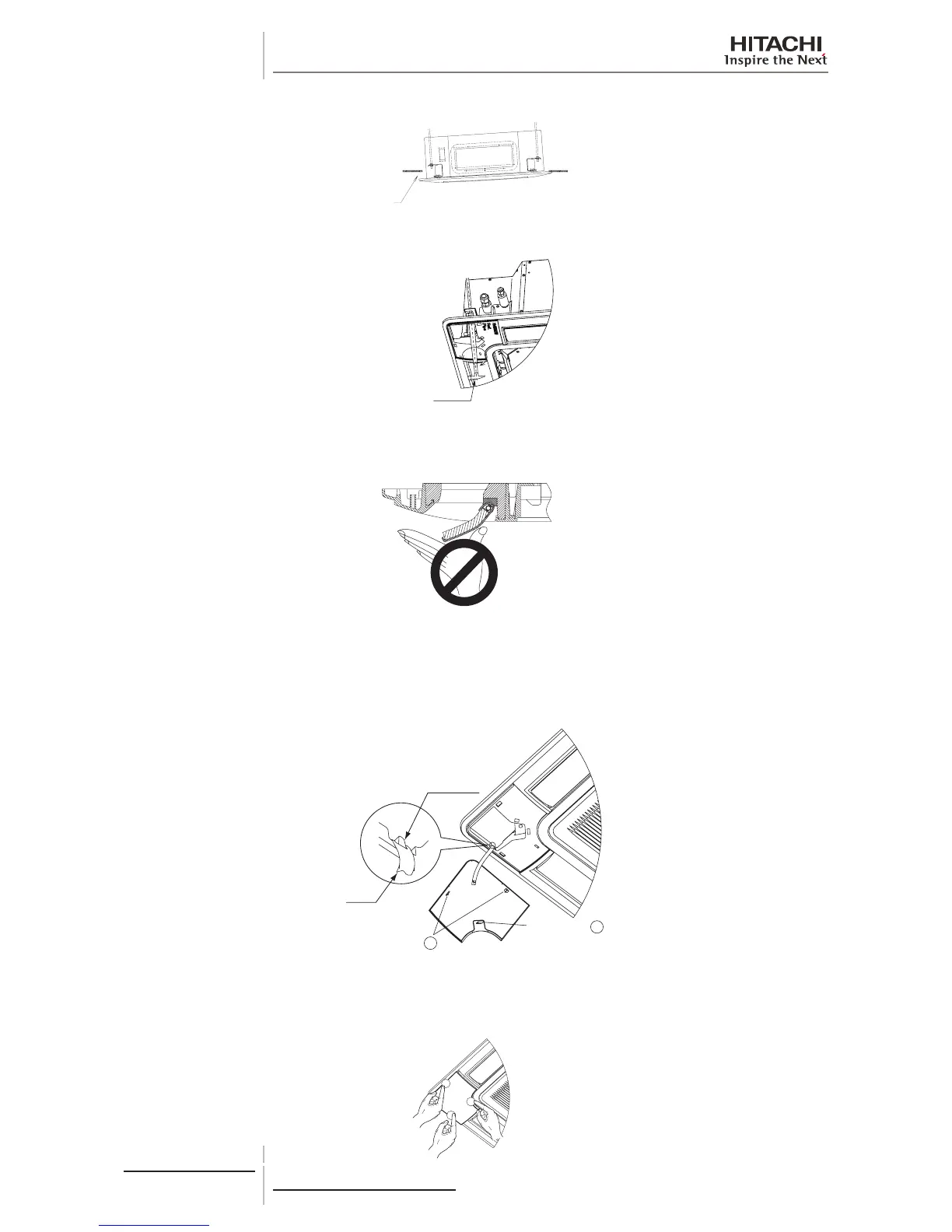

• Ifanygaphaseventhoughtightenlongscrewssufcient,readjusttheheightofindoorunit.
No gap shall exist
• It’s able to adjust the indoor unit height by using wrench from the corner pocket.
Wrench
• Too considerable adjustment of height cause dewing from drain-pan.
• Do not turn the air louver by hand. If moved, the louver mechanism would be damaged.
Attachment of Corner Pocket Cover
Attach the corner pocket covers after the air panel is mounted completely.
a. Catch the band at the rear side of the corner pocket cover onto the projection at the air panel as shown.
A
B
Projection
Fixing hook
Band
Fixing hook
b. Insert and push the îš¿xing hooks (2 portions) at â’¶ to the air panel and insert and push the îš¿xing hook (1 portion) at
â’· to the air panel.
B
A
A
