2 Unit installation
58
SMGB0077 rev.0 - 01/2013

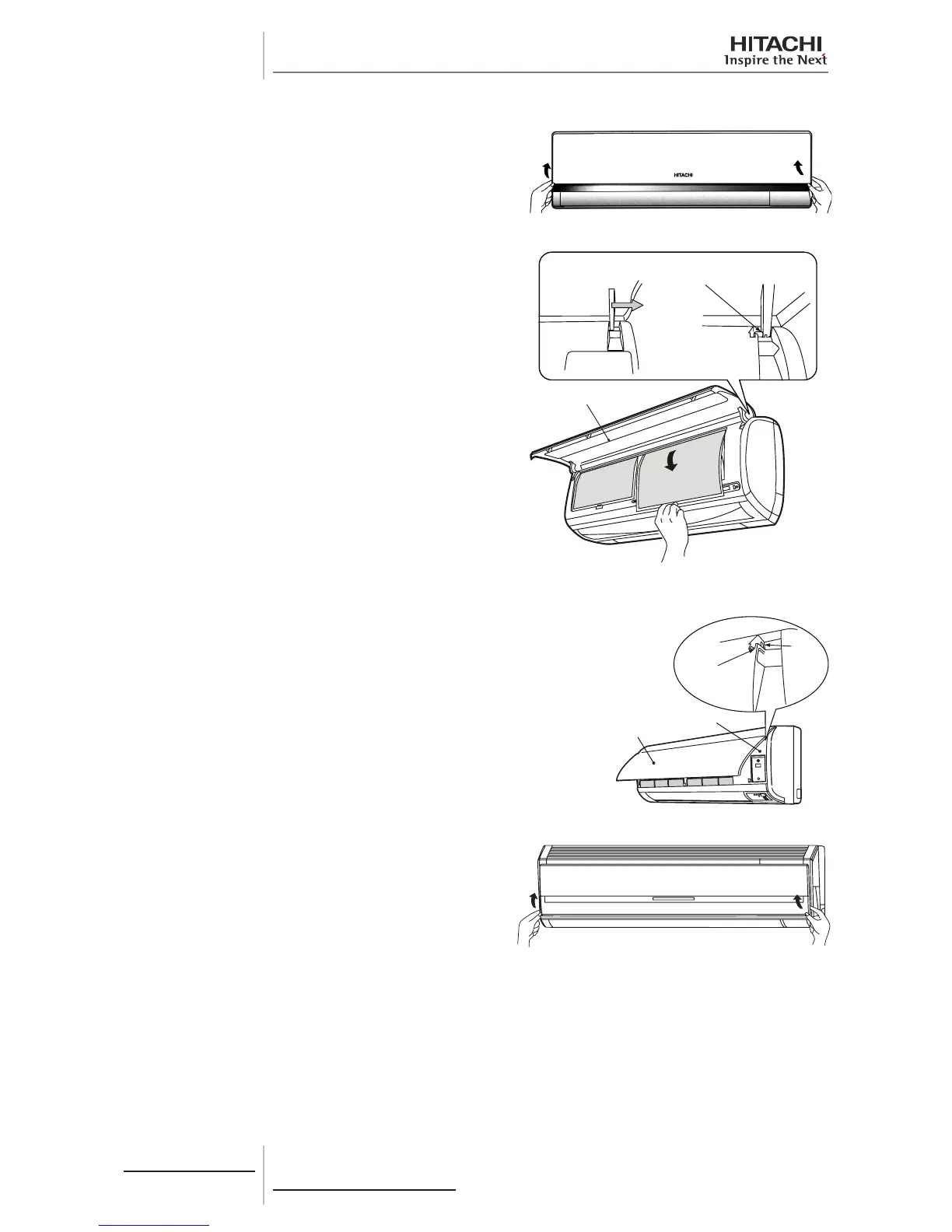

Removal of the front panel for RPK-(0.8-1.5)FSN(H)3M
Hold both sides of at panel and open it fully.
Lift up the air lter, detach the catches from the indoor unit and
remove the air lter downward.
After the right arm shaft is expanded outward and the shafts are
removed from the front panel, pull the at panel frontward while
the right arm shaft is slightly expanded outward.
Flat panel
Remove this part
from the hole.
Expand the shaft
toward arrow di-
rection.
Attaching at panel for RPK-(0.8-1.5)FSN(H)3M
Insert completely the left and right arm shafts of at panel into
the holes along the guide at the front panel. After the at panel is
attached completely, insert the catches for air lter to x.
Flat panel
Hole
Guide at
front panel
Front panel
Removal of the front panel for RPK-(2.0-4.0)FSN3M
Hold both sides of at panel and open it fully.
To Next Page
