2 Unit installation
84
SMGB0077 rev.0 - 01/2013
For RCI-FSN3Ei indoor units: B-23H4

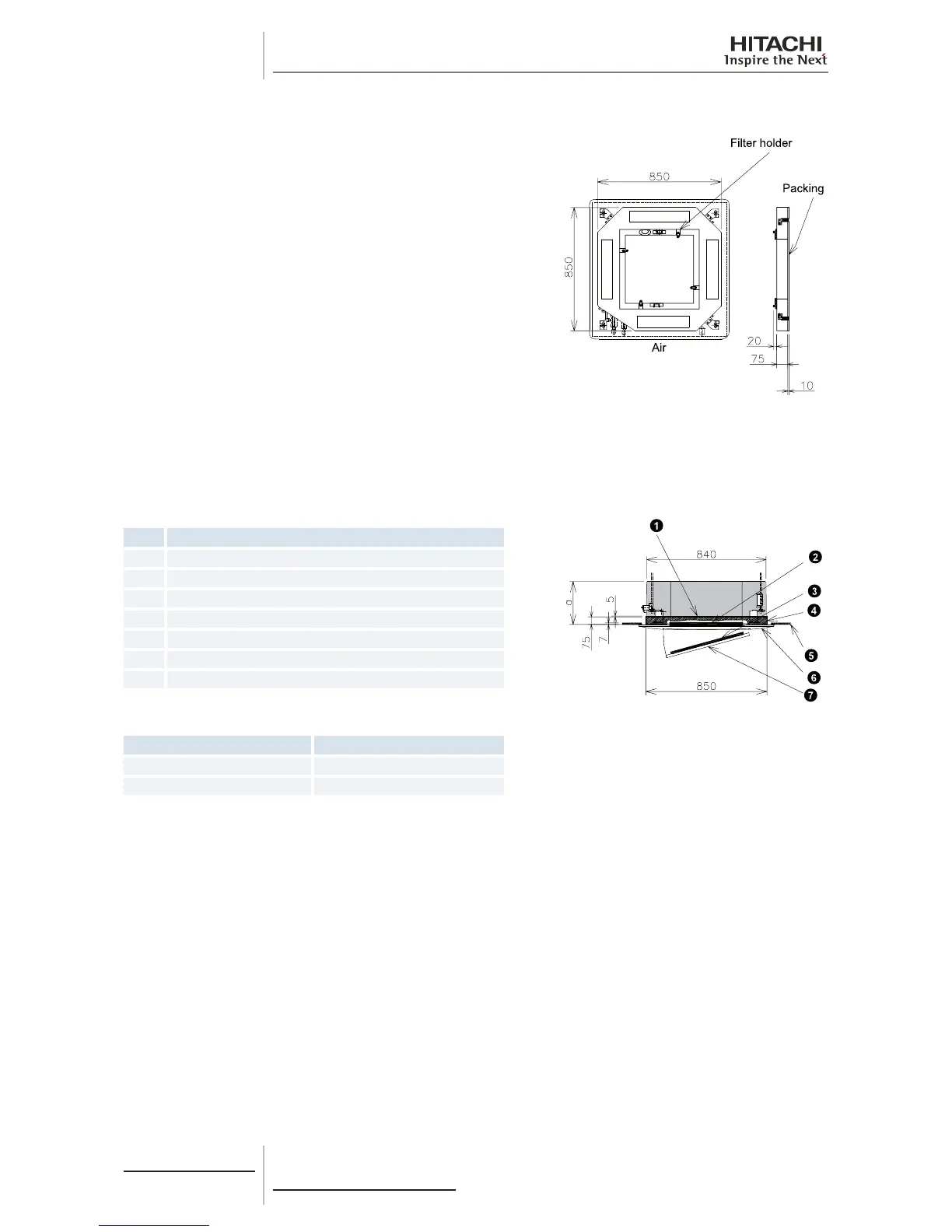

The dimensions of the îš¿lter box are shown in the following îš¿gure.
When the îš¿lter box is installed, the total height of the unit increases by approximately 85 mm. Therefore, pay attention to
the installation space.
Bear in mind that the size before compression is 10 mm, but the size is reduced after compression to 5mm.
Nº Part
1 Air panel
2 Air îš¿lter
3 Long-lasting air îš¿lter
4 Filter box
5 Ceiling
6 Air panel (optional)
7 Suction grille
Model a (mm)
RCI-(1.0-2.5)FSN3Ei 248
RCI-(3.0-6.0)FSN3Ei 298
