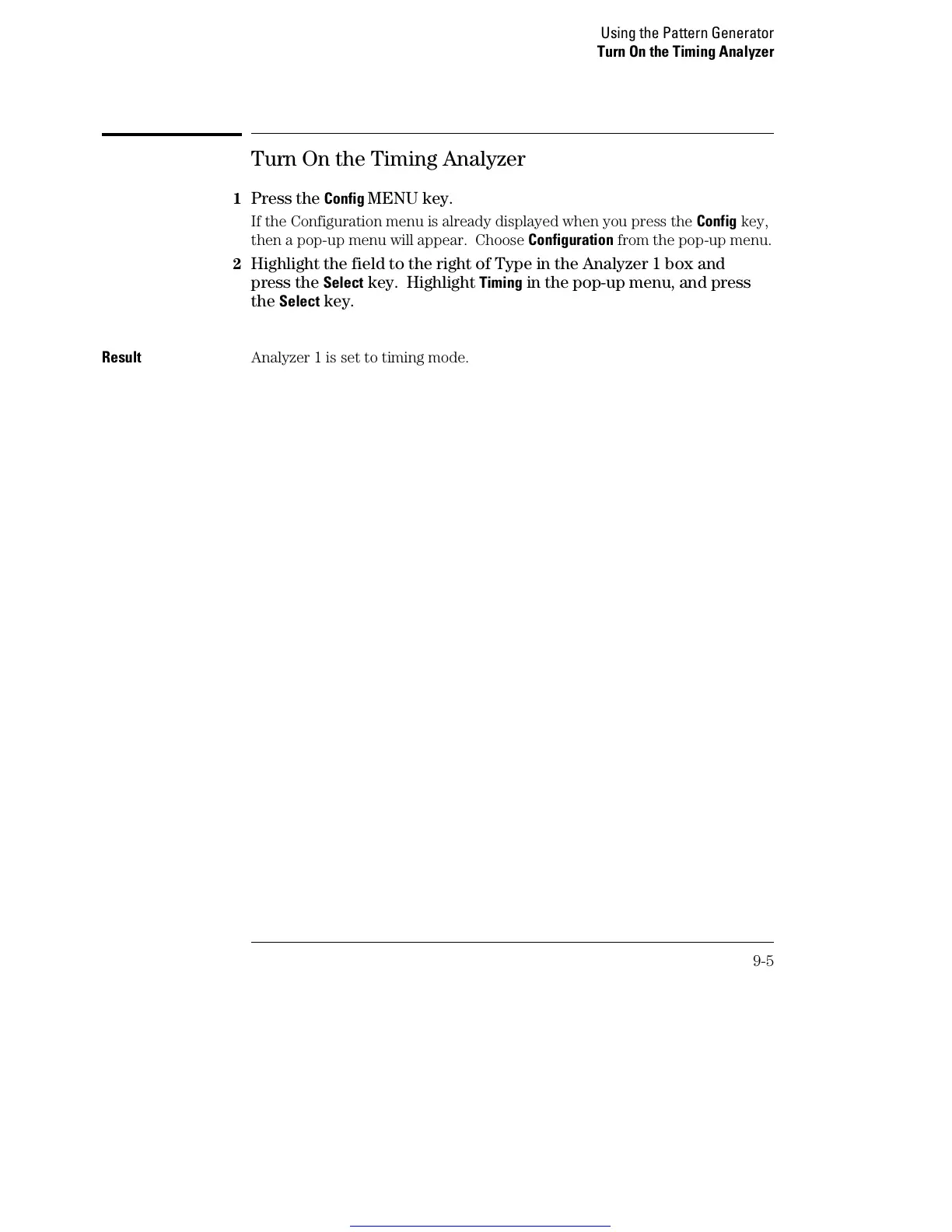

Turn On the Timing Analyzer

1 Press the Config MENU key.

If the Configuration menu is already displayed when you press the Config key,

then a pop-up menu will appear. Choose Configuration from the pop-up menu.

Highlight the field to the right of Type in the Analyzer 1 box and

press the

Select key. Highlight Timing in the pop-up menu, and press

the

Select key.

Result Analyzer 1 is set to timing mode.

Using the Pattern Generator

Turn On the Timing Analyzer

9-5
