Set Up Level 1 of the State Trigger Specification
In the next two exercises, you will set up the sequence of events that you
want the logic analyzer to follow when triggering and storing data. In this
exercise you will set Level 1 to store all data occurring before the trigger
pattern is found.
1
Highlight the 1 field in the State Sequence Levels box of the Trigger
menu. Press the
Select key.
2 Highlight the field to the right of Trigger on, and press the Select key.
Highlight
b in the pop-up menu, and press the Done key.
3 Press the Done key to close the Sequence Level 1 pop-up menu.

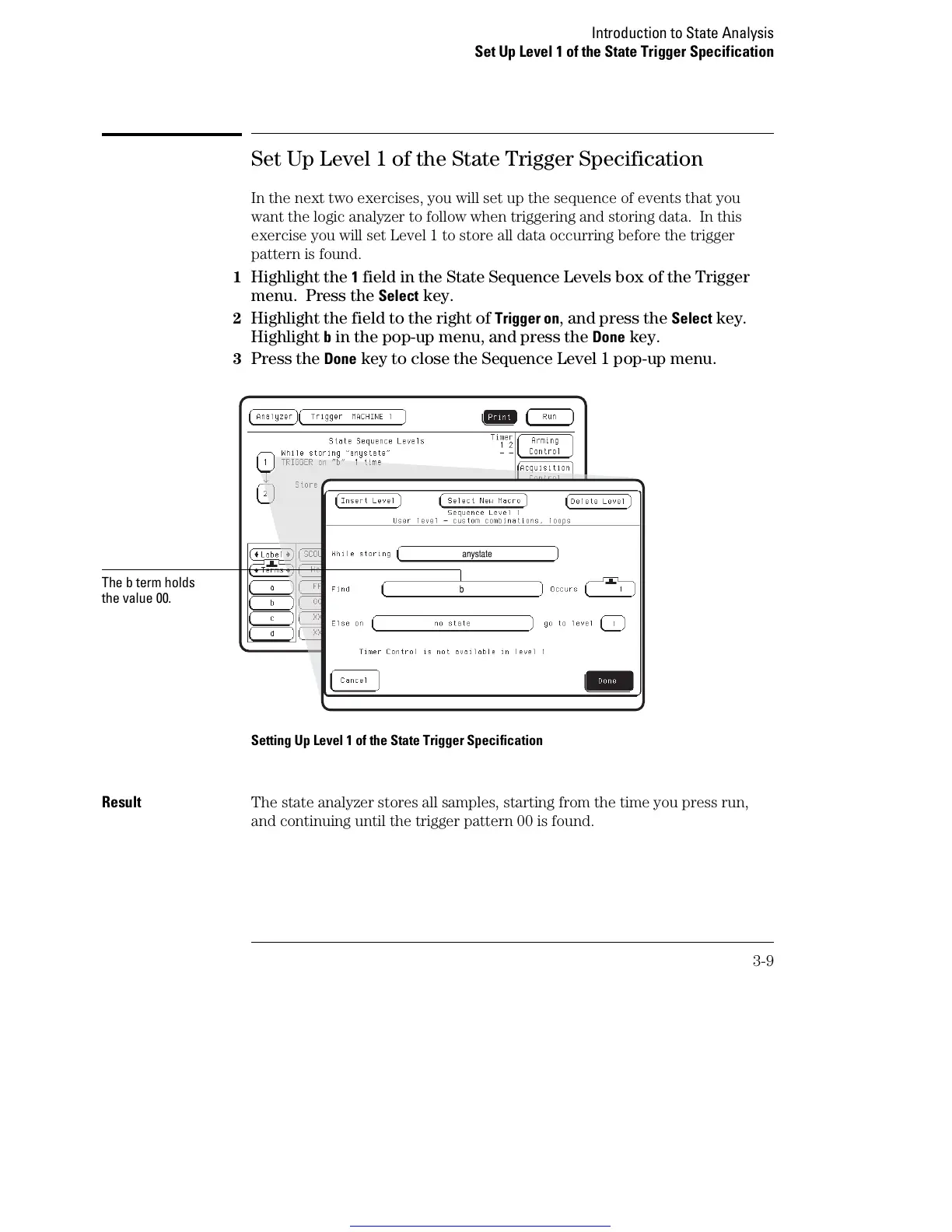

Setting Up Level 1 of the State Trigger Specification
Result The state analyzer stores all samples, starting from the time you press run,
and continuing until the trigger pattern 00 is found.
The b term holds
the value 00.
Introduction to State Analysis
Set Up Level 1 of the State Trigger Specification
3-9
