HP 1660 Series Training Guide

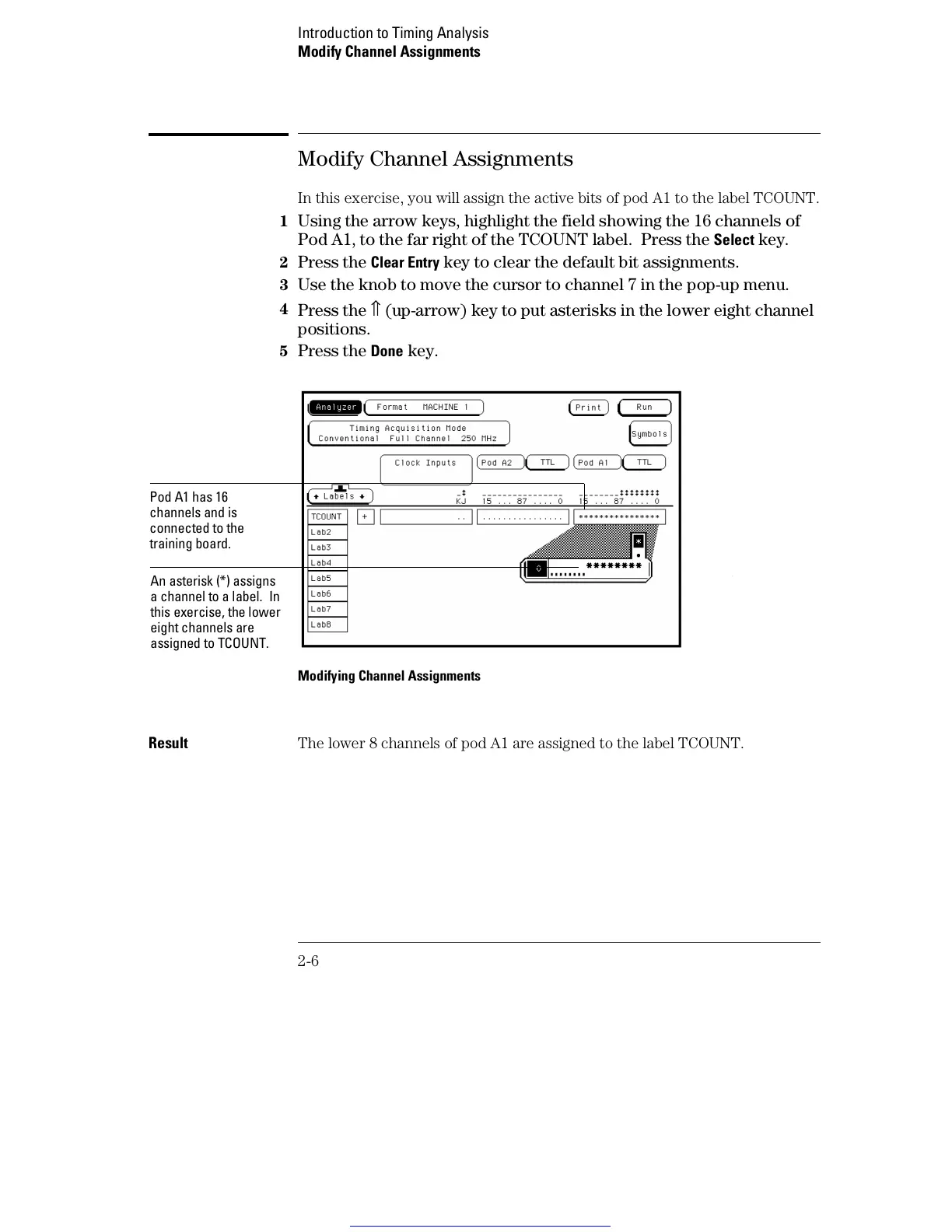

Modify Channel Assignments
In this exercise, you will assign the active bits of pod A1 to the label TCOUNT.
1 Using the arrow keys, highlight the field showing the 16 channels of
Pod A1, to the far right of the TCOUNT label. Press the
Select key.
2 Press the Clear Entry key to clear the default bit assignments.
3 Use the knob to move the cursor to channel 7 in the pop-up menu.
4
Press the ⇑ (up-arrow) key to put asterisks in the lower eight channel
positions.
5 Press the Done key.
Modifying Channel Assignments
Result The lower 8 channels of pod A1 are assigned to the label TCOUNT.
Pod A1 has 16
channels and is
connected to the
training board.
An asterisk (*) assigns
a channel to a label. In
this exercise, the lower
eight channels are
assigned to TCOUNT.
Introduction to Timing Analysis
Modify Channel Assignments
2-6
