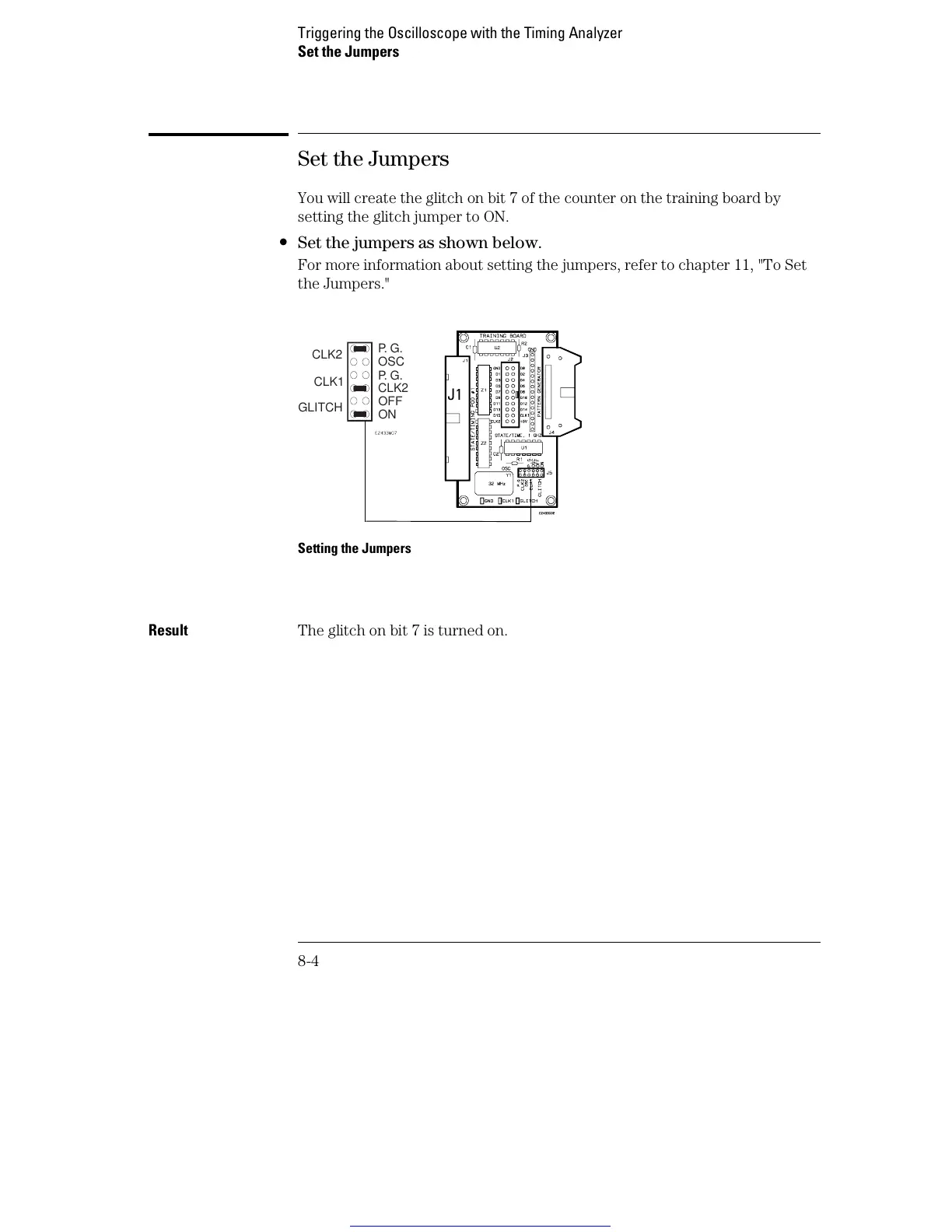

Set the Jumpers

You will create the glitch on bit 7 of the counter on the training board by

setting the glitch jumper to ON.

• Set the jumpers as shown below.

For more information about setting the jumpers, refer to chapter 11, "To Set

the Jumpers."

Setting the Jumpers

Result The glitch on bit 7 is turned on.

CLK2

GLITCH

P. G .

OSC

CLK2

OFF

CLK1

P. G .

Triggering the Oscilloscope with the Timing Analyzer

Set the Jumpers

8-4
