Start the Pattern Generator and View the Walking
Ones Pattern
When you select Run and Repetitive, the Pattern Generator begins to run in
repetitive mode. The output is the repeating "walking ones" pattern. You will
not see this output until you switch to the timing analyzer waveform display.
The pattern generator will run independently until you stop it by pressing the
Stop key.
1
On the front panel of the logic analyzer, press the blue SHIFT key,
and then push the
Run key to run the pattern generator repetitively.
2 Highlight the Patt Gen in the top-left corner of the screen, and press
the
Select key. Choose Analyzer from the pop-up menu.
3 Highlight the the Run field, and press the Select key. Choose Single,
and press the
Select key.
The Timing analyzer runs a single trace and automatically displays the
Waveform 1 menu in which you see the "walking ones" patter.
4
Highlight the s/Div field.
5 Turn the knob until the s/Div field displays 20 ns.

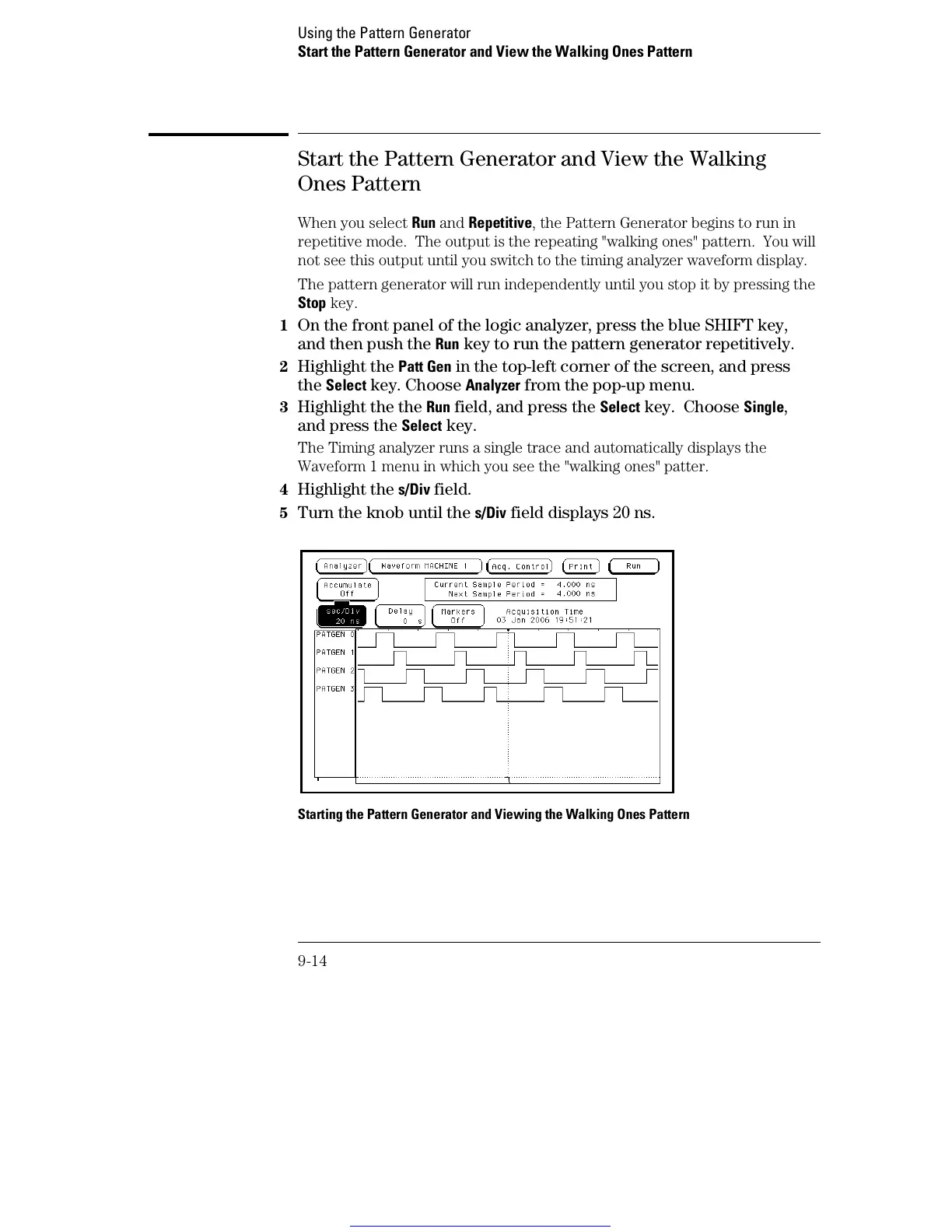

Starting the Pattern Generator and Viewing the Walking Ones Pattern
Using the Pattern Generator
Start the Pattern Generator and View the Walking Ones Pattern
9-14
