HP 1660 Series Training Guide

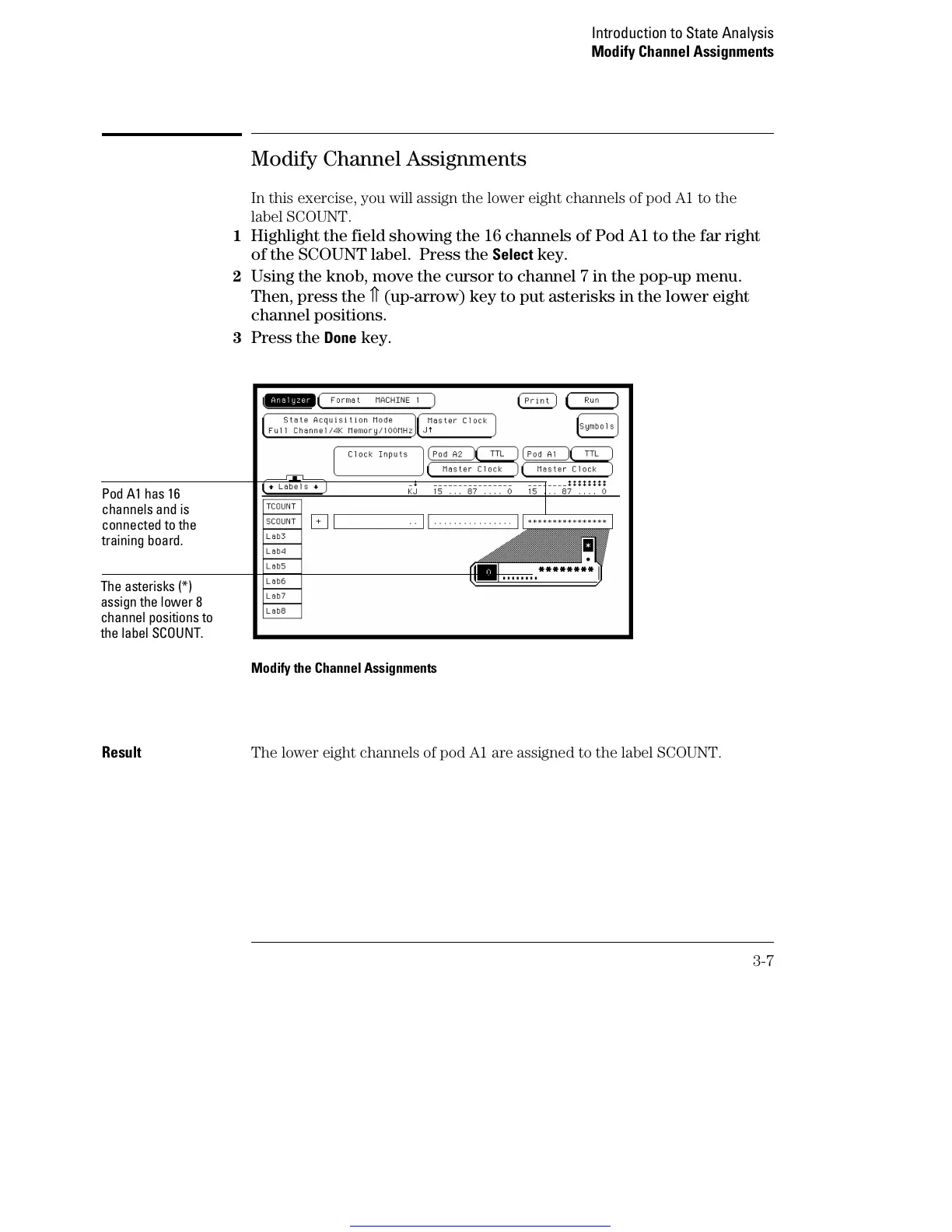

Modify Channel Assignments
In this exercise, you will assign the lower eight channels of pod A1 to the
label SCOUNT.
1
Highlight the field showing the 16 channels of Pod A1 to the far right
of the SCOUNT label. Press the
Select key.
2 Using the knob, move the cursor to channel 7 in the pop-up menu.
Then, press the ⇑ (up-arrow) key to put asterisks in the lower eight
channel positions.
3 Press the Done key.
Modify the Channel Assignments
Result The lower eight channels of pod A1 are assigned to the label SCOUNT.
Pod A1 has 16
channels and is
connected to the
training board.
The asterisks (*)
assign the lower 8
channel positions to
the label SCOUNT.
Introduction to State Analysis
Modify Channel Assignments
3-7
