HP 1660 Series Training Guide

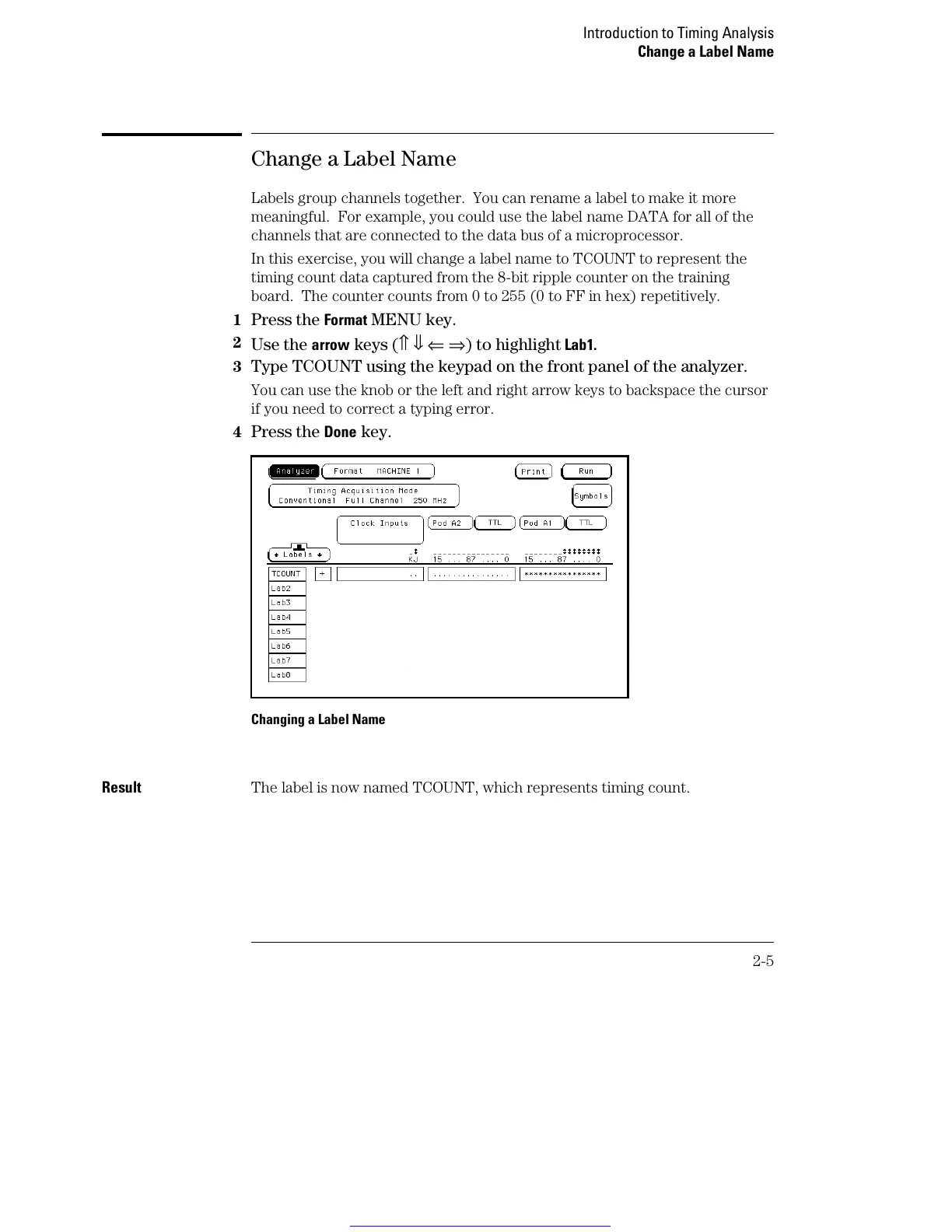

Change a Label Name
Labels group channels together. You can rename a label to make it more
meaningful. For example, you could use the label name DATA for all of the
channels that are connected to the data bus of a microprocessor.
In this exercise, you will change a label name to TCOUNT to represent the
timing count data captured from the 8-bit ripple counter on the training
board. The counter counts from 0 to 255 (0 to FF in hex) repetitively.
1
Press the Format MENU key.
2
Use the arrow keys (⇑ ⇓ ⇐ ⇒) to highlight Lab1.
3
Type TCOUNT using the keypad on the front panel of the analyzer.
You can use the knob or the left and right arrow keys to backspace the cursor
if you need to correct a typing error.
4
Press the Done key.
Changing a Label Name
Result The label is now named TCOUNT, which represents timing count.
Introduction to Timing Analysis
Change a Label Name
2-5
