HP 1660 Series Training Guide

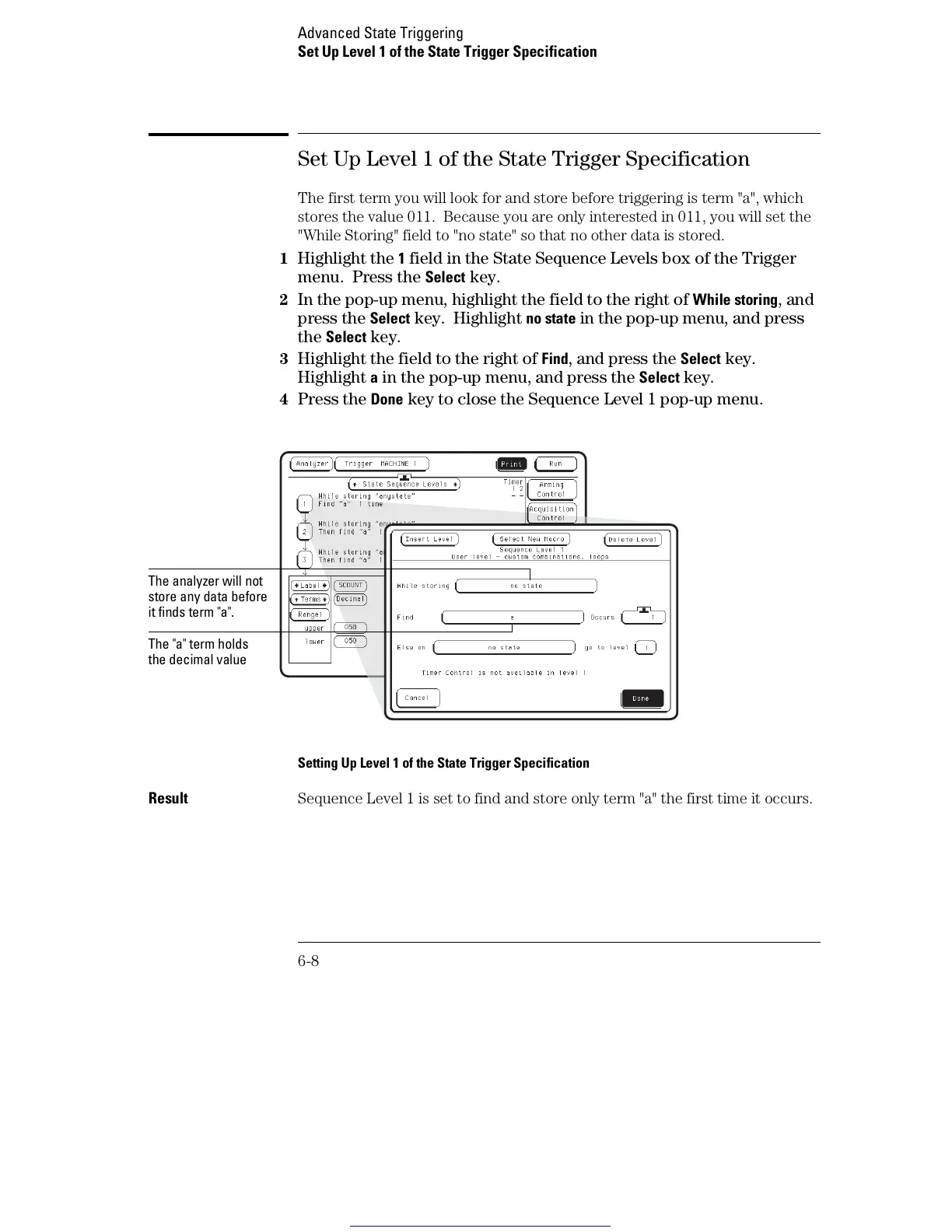

Set Up Level 1 of the State Trigger Specification
The first term you will look for and store before triggering is term "a", which
stores the value 011. Because you are only interested in 011, you will set the
"While Storing" field to "no state" so that no other data is stored.
1
Highlight the 1 field in the State Sequence Levels box of the Trigger
menu. Press the
Select key.
2 In the pop-up menu, highlight the field to the right of While storing, and
press the
Select key. Highlight no state in the pop-up menu, and press
the
Select key.
3 Highlight the field to the right of Find, and press the Select key.
Highlight
a in the pop-up menu, and press the Select key.
4 Press the Done key to close the Sequence Level 1 pop-up menu.
Setting Up Level 1 of the State Trigger Specification
Result Sequence Level 1 is set to find and store only term "a" the first time it occurs.
The analyzer will not
store any data before
it finds term "a".
The "a" term holds
the decimal value
Advanced State Triggering
Set Up Level 1 of the State Trigger Specification
6-8
