Modify Channel Assignments
In this exercise you will assign channels 8 through 11 to Pod A1, which is
attached to J1 of the training board. The analyzer will then use these
channels to capture the output of the pattern generator.
1
Highlight the field showing the 16 channels of Pod A1 to the far right
of the PATGEN label. Press the
Select key.
2 Using the knob, move the cursor to channel 11 in the pop-up menu.
Then, press the ⇑ (up-arrow) key to put asterisks in channels
positions 11 through 8.
3 Press the Done key.

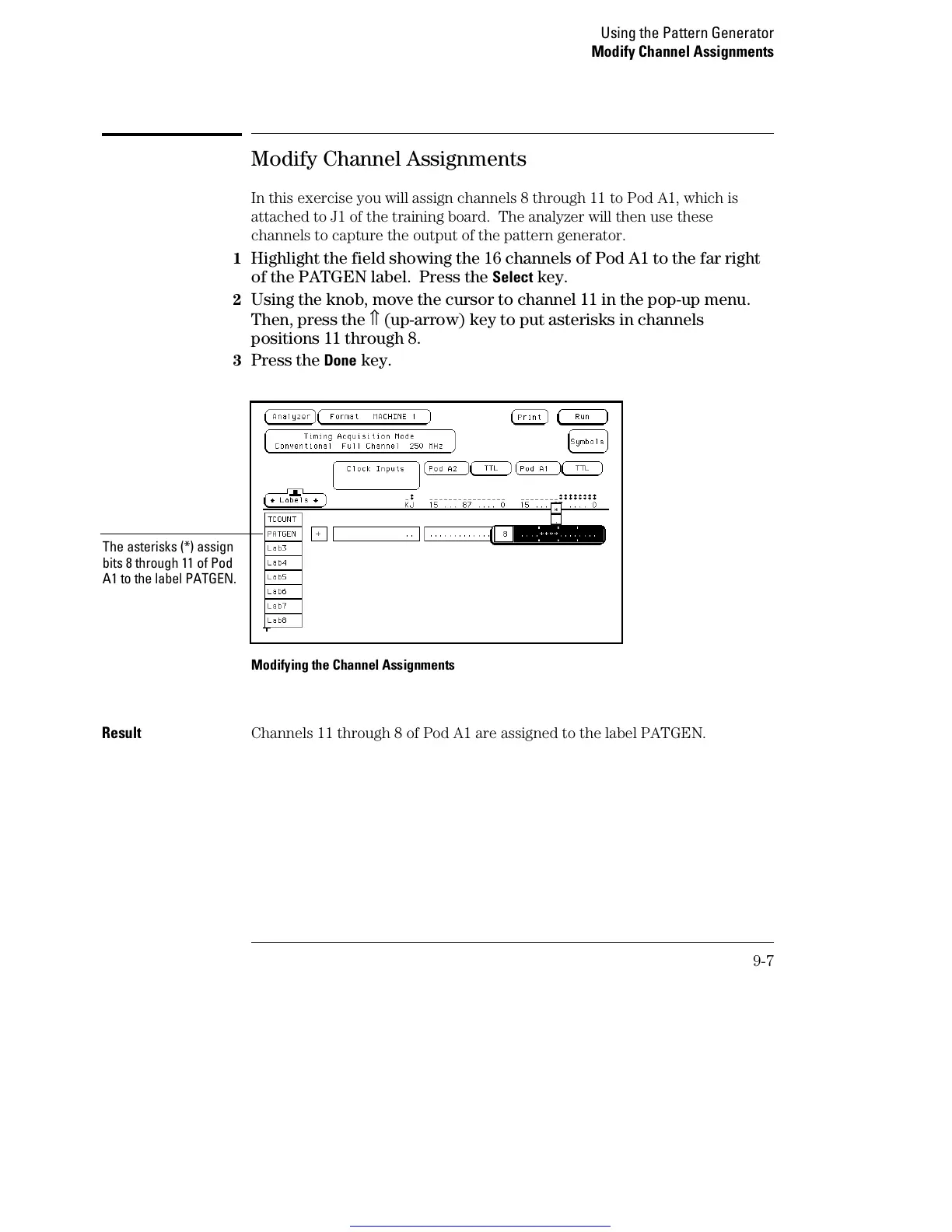

Modifying the Channel Assignments
Result Channels 11 through 8 of Pod A1 are assigned to the label PATGEN.
The asterisks (*) assign
bits 8 through 11 of Pod
A1 to the label PATGEN.
Using the Pattern Generator
Modify Channel Assignments
9-7
