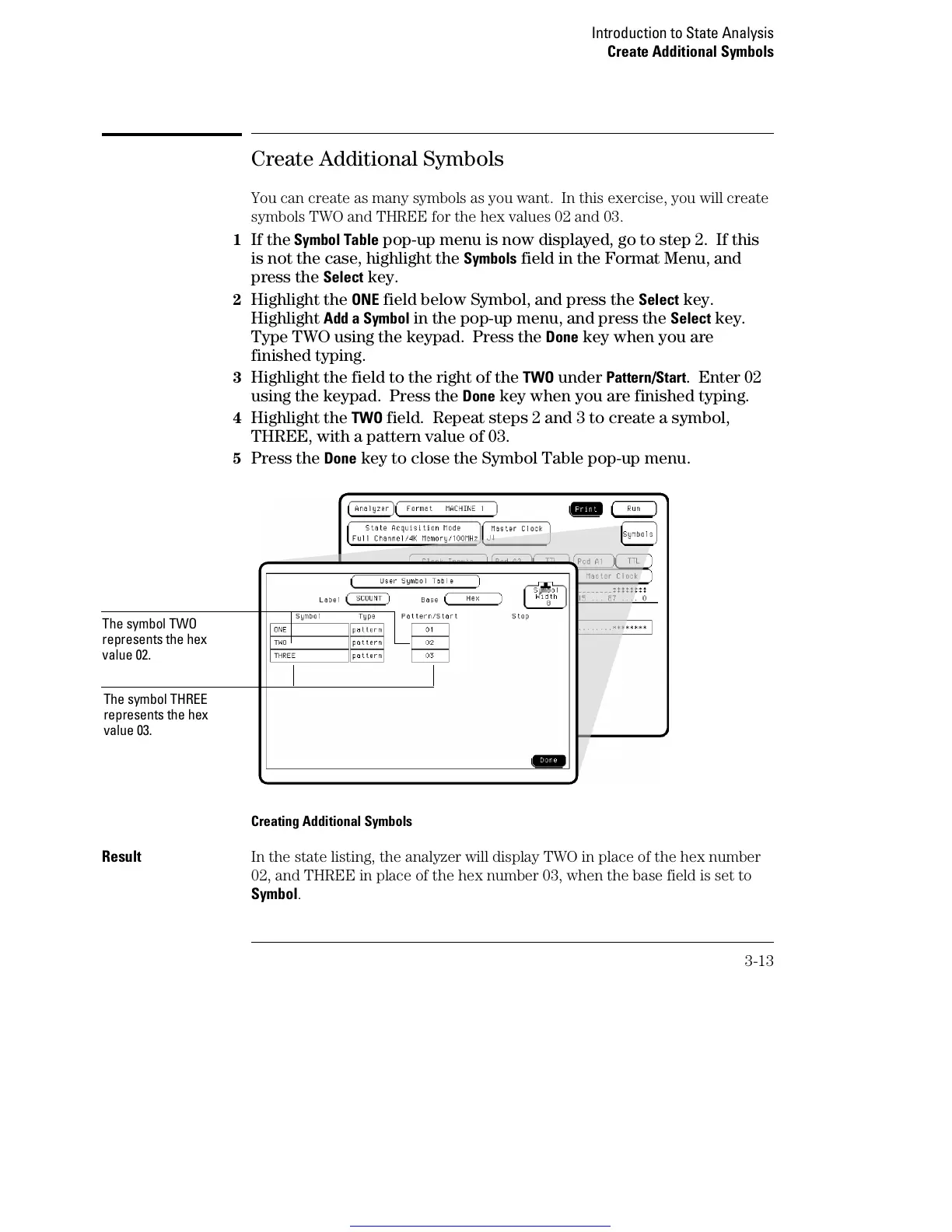

Create Additional Symbols
You can create as many symbols as you want. In this exercise, you will create
symbols TWO and THREE for the hex values 02 and 03.
1
If the Symbol Table pop-up menu is now displayed, go to step 2. If this
is not the case, highlight the
Symbols field in the Format Menu, and
press the
Select key.
2 Highlight the ONE field below Symbol, and press the Select key.
Highlight
Add a Symbol in the pop-up menu, and press the Select key.
Type TWO using the keypad. Press the
Done key when you are
finished typing.
3 Highlight the field to the right of the TWO under Pattern/Start. Enter 02
using the keypad. Press the
Done key when you are finished typing.
4 Highlight the TWO field. Repeat steps 2 and 3 to create a symbol,
THREE, with a pattern value of 03.
5 Press the Done key to close the Symbol Table pop-up menu.
Creating Additional Symbols
Result In the state listing, the analyzer will display TWO in place of the hex number
02, and THREE in place of the hex number 03, when the base field is set to
Symbol.
The symbol TWO
represents the hex
value 02.
The symbol THREE
represents the hex
value 03.
Introduction to State Analysis
Create Additional Symbols
3-13
