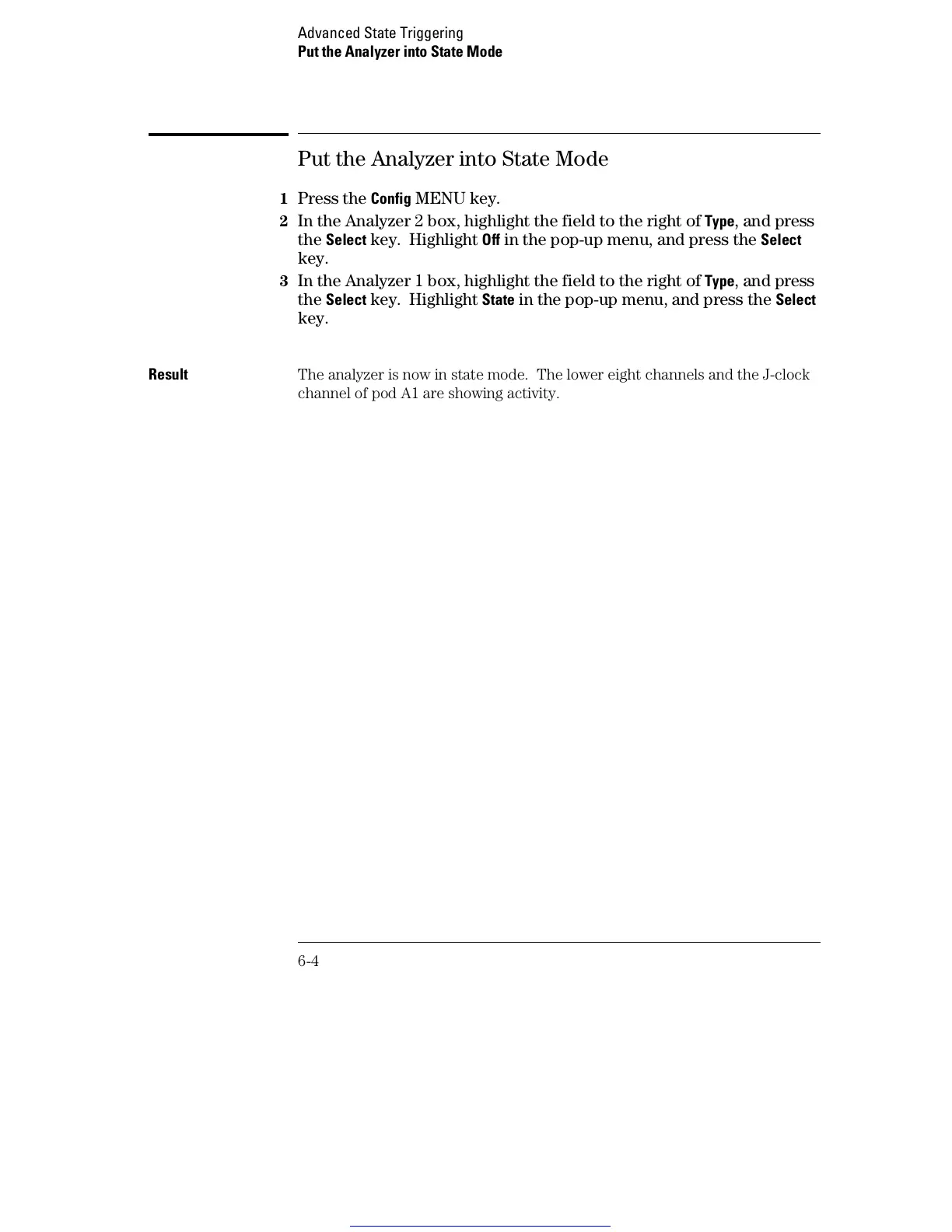

Put the Analyzer into State Mode
1 Press the Config MENU key.
2 In the Analyzer 2 box, highlight the field to the right of Type, and press
the
Select key. Highlight Off in the pop-up menu, and press the Select
key.
3 In the Analyzer 1 box, highlight the field to the right of Type, and press
the
Select key. Highlight State in the pop-up menu, and press the Select
key.
Result The analyzer is now in state mode. The lower eight channels and the J-clock
channel of pod A1 are showing activity.
Advanced State Triggering
Put the Analyzer into State Mode
6-4
