HP 1660 Series Training Guide

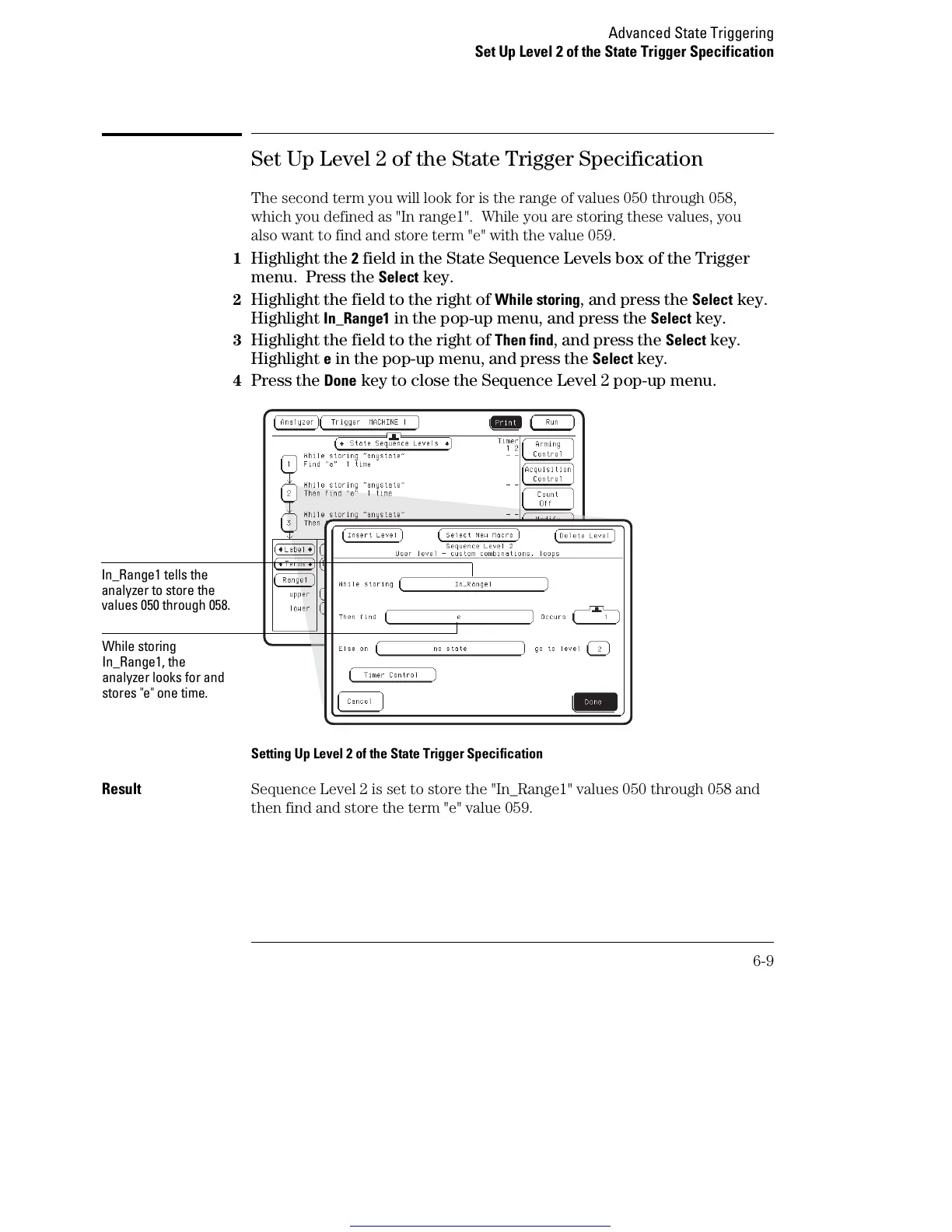

Set Up Level 2 of the State Trigger Specification
The second term you will look for is the range of values 050 through 058,
which you defined as "In range1". While you are storing these values, you
also want to find and store term "e" with the value 059.
1
Highlight the 2 field in the State Sequence Levels box of the Trigger
menu. Press the
Select key.
2 Highlight the field to the right of While storing, and press the Select key.
Highlight
In_Range1 in the pop-up menu, and press the Select key.
3 Highlight the field to the right of Then find, and press the Select key.
Highlight
e in the pop-up menu, and press the Select key.
4 Press the Done key to close the Sequence Level 2 pop-up menu.
Setting Up Level 2 of the State Trigger Specification
Result Sequence Level 2 is set to store the "In_Range1" values 050 through 058 and
then find and store the term "e" value 059.
In_Range1 tells the
analyzer to store the
values 050 through 058.
While storing
In_Range1, the
analyzer looks for and
stores "e" one time.
Advanced State Triggering
Set Up Level 2 of the State Trigger Specification
6-9
