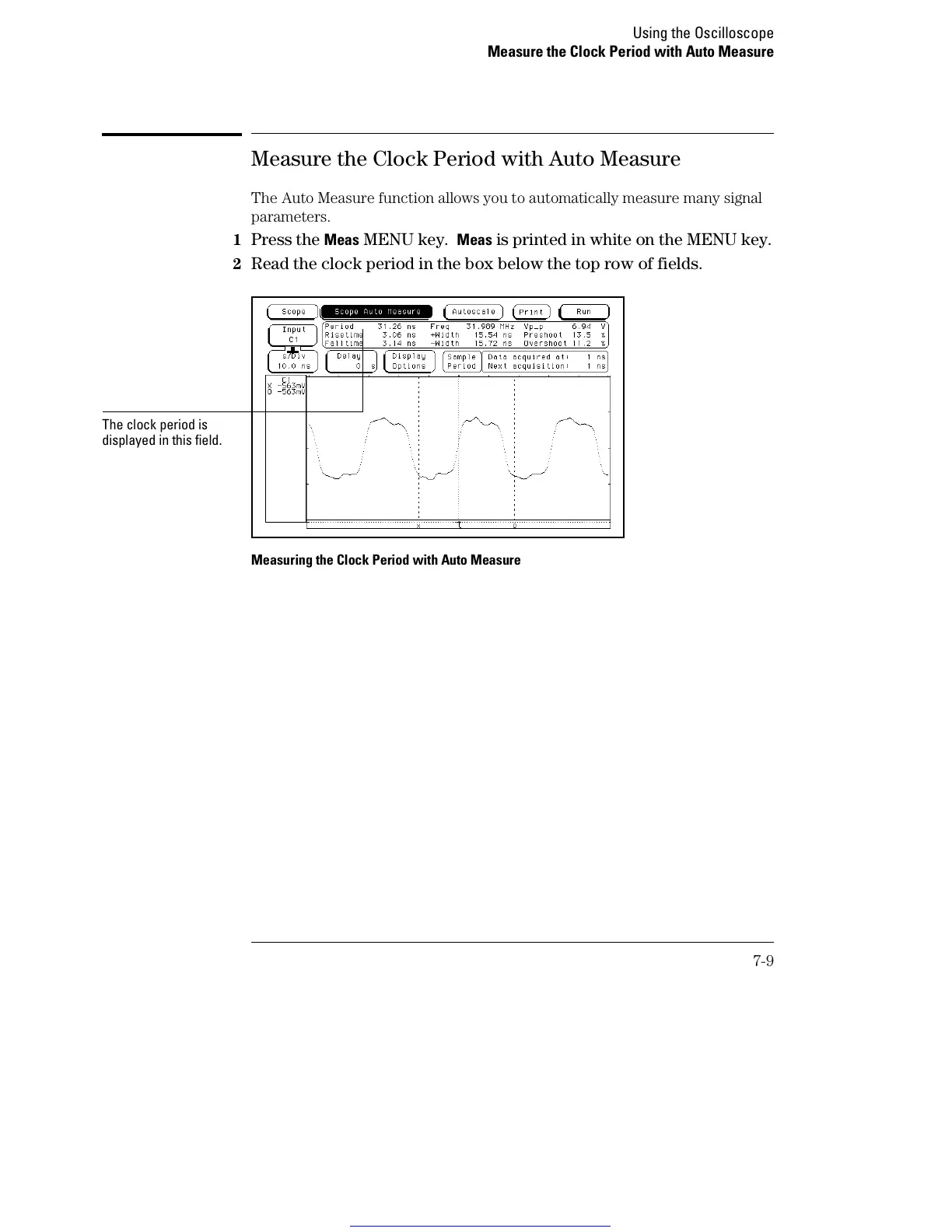

Measure the Clock Period with Auto Measure

The Auto Measure function allows you to automatically measure many signal

parameters.

Press the Meas MENU key. Meas is printed in white on the MENU key.

2 Read the clock period in the box below the top row of fields.

Measuring the Clock Period with Auto Measure

The clock period is

displayed in this field.
