Connect the Oscilloscope Probe

1 Connect the oscilloscope probe to channel 1 on the front panel.

2 Connect the probe tip to the test point labeled "Glitch" on the Logic

Analyzer Training Board.

Note that this is a different test point than the "CLK 1" test point that was

used in Chapter 7.

Connect the probe ground lead to the test point labeled "Ground" on

the training board.

Note Leave Pod 1 connected to J1. This provides +5 V for the training board.

If Pod 1 is not connected to J1, connect it now.

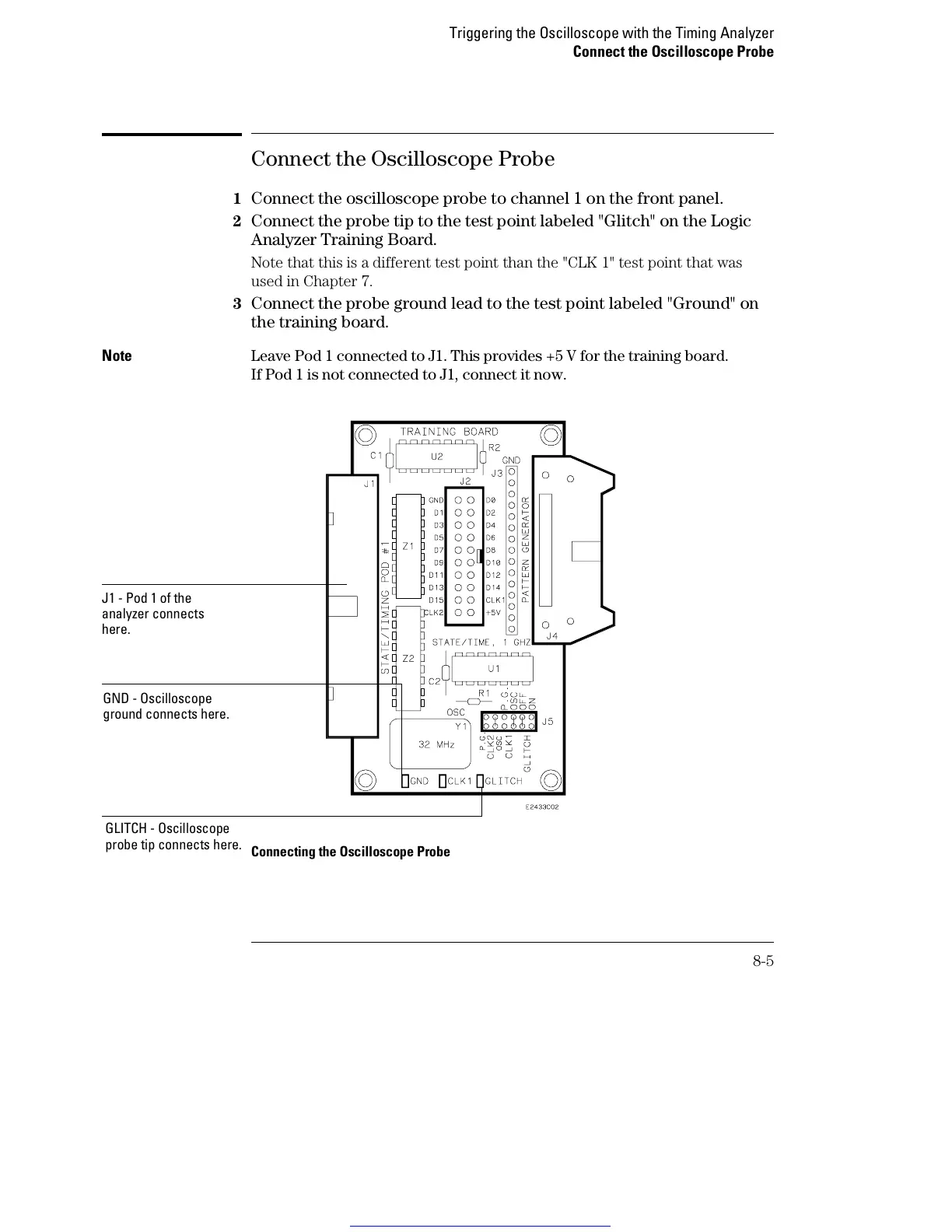

Connecting the Oscilloscope Probe

GND - Oscilloscope

ground connects here.

GLITCH - Oscilloscope

probe tip connects here.

J1 - Pod 1 of the

analyzer connects

here.

Triggering the Oscilloscope with the Timing Analyzer

Connect the Oscilloscope Probe

8-5
