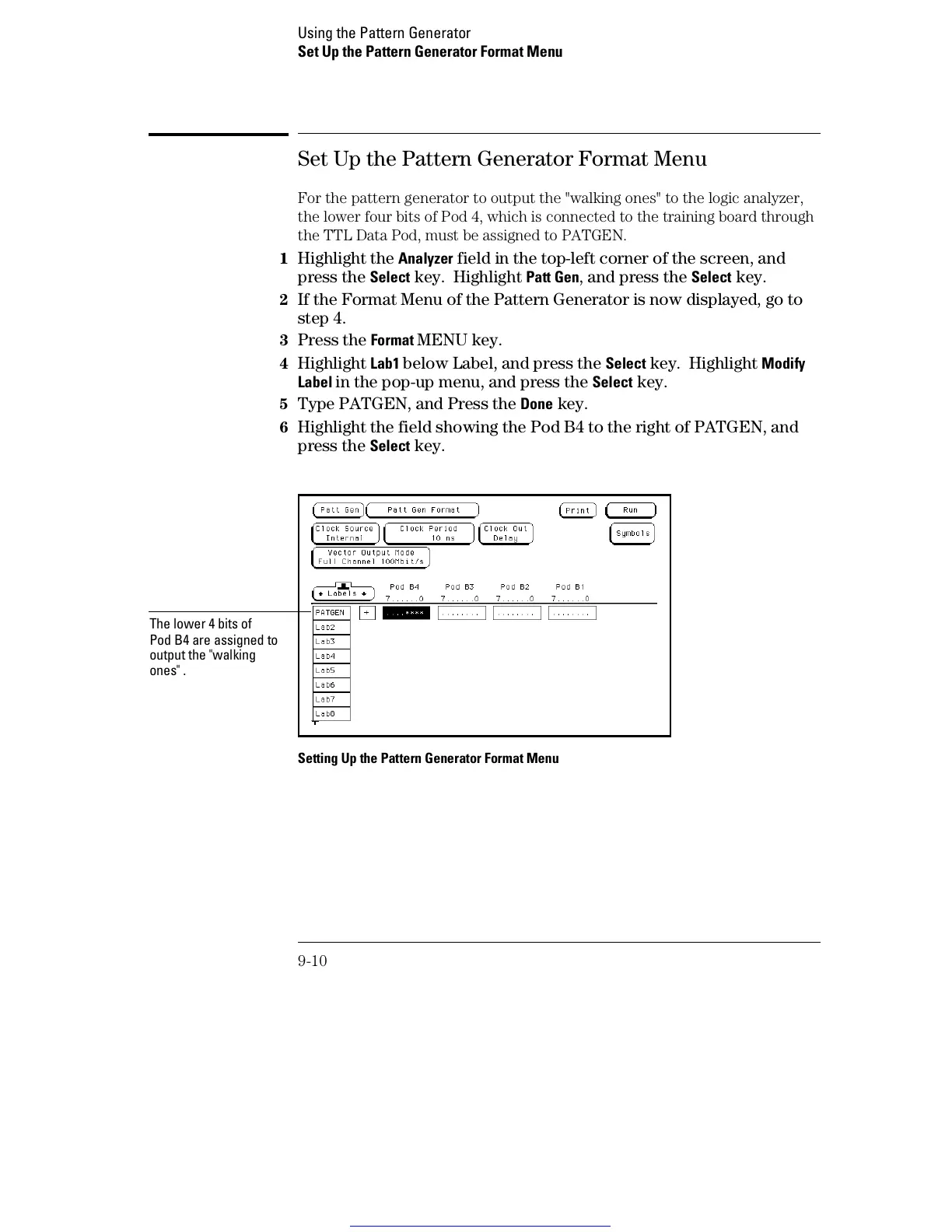

HP 1660 Series Training Guide

Set Up the Pattern Generator Format Menu
For the pattern generator to output the "walking ones" to the logic analyzer,
the lower four bits of Pod 4, which is connected to the training board through
the TTL Data Pod, must be assigned to PATGEN.
11
Highlight the Analyzer field in the top-left corner of the screen, and
press the
Select key. Highlight Patt Gen, and press the Select key.
2 If the Format Menu of the Pattern Generator is now displayed, go to
step 4.
3 Press the Format MENU key.
4 Highlight Lab1 below Label, and press the Select key. Highlight Modify
Label
in the pop-up menu, and press the Select key.
5 Type PATGEN, and Press the Done key.
6 Highlight the field showing the Pod B4 to the right of PATGEN, and
press the
Select key.
Setting Up the Pattern Generator Format Menu
The lower 4 bits of
Pod B4 are assigned to
output the "walking
ones" .
Using the Pattern Generator
Set Up the Pattern Generator Format Menu
9-10
