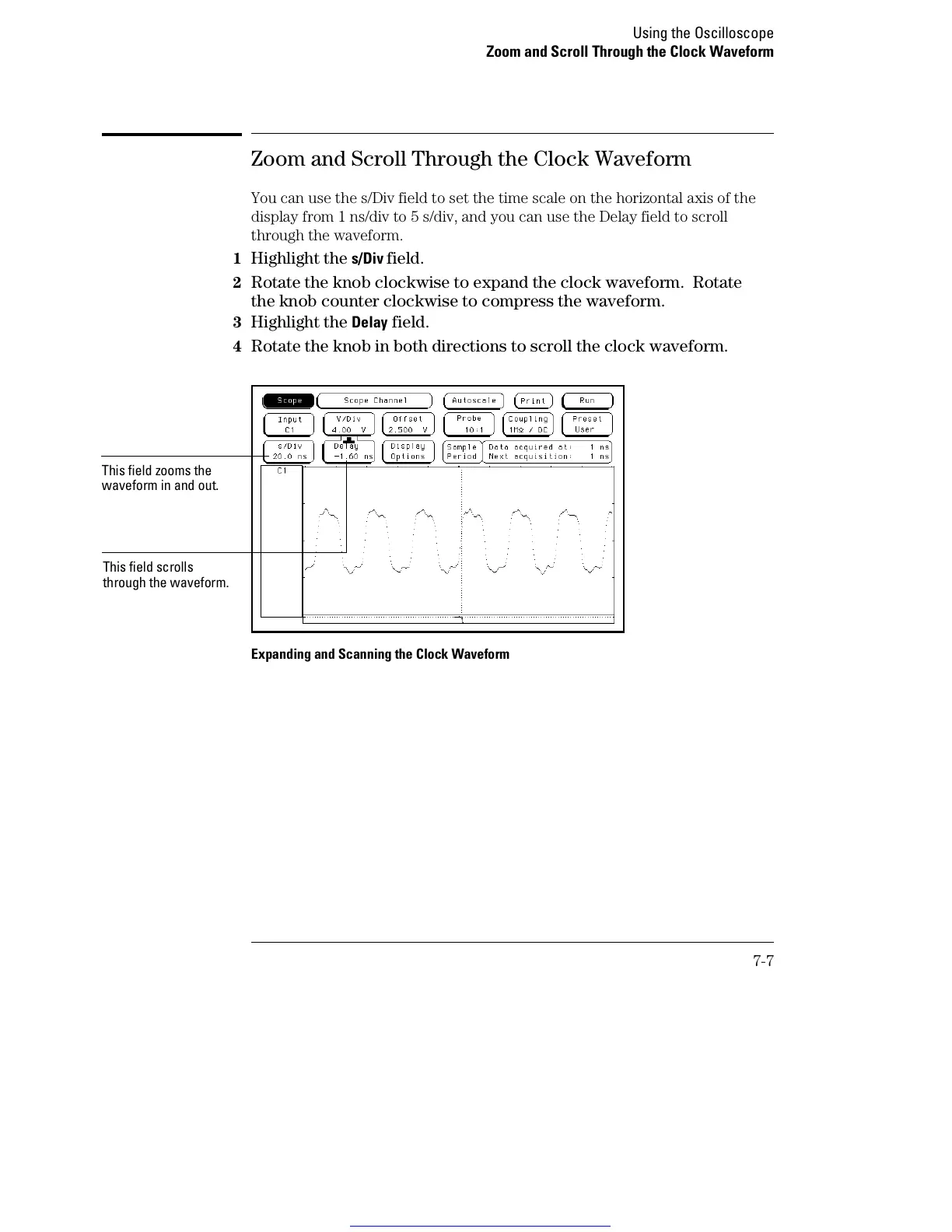

Zoom and Scroll Through the Clock Waveform
You can use the s/Div field to set the time scale on the horizontal axis of the
display from 1 ns/div to 5 s/div, and you can use the Delay field to scroll
through the waveform.
1
Highlight the s/Div field.
2 Rotate the knob clockwise to expand the clock waveform. Rotate
the knob counter clockwise to compress the waveform.
3 Highlight the Delay field.
4 Rotate the knob in both directions to scroll the clock waveform.
Expanding and Scanning the Clock Waveform
This field zooms the
waveform in and out.
This field scrolls
through the waveform.
Using the Oscilloscope
Zoom and Scroll Through the Clock Waveform
7-7
