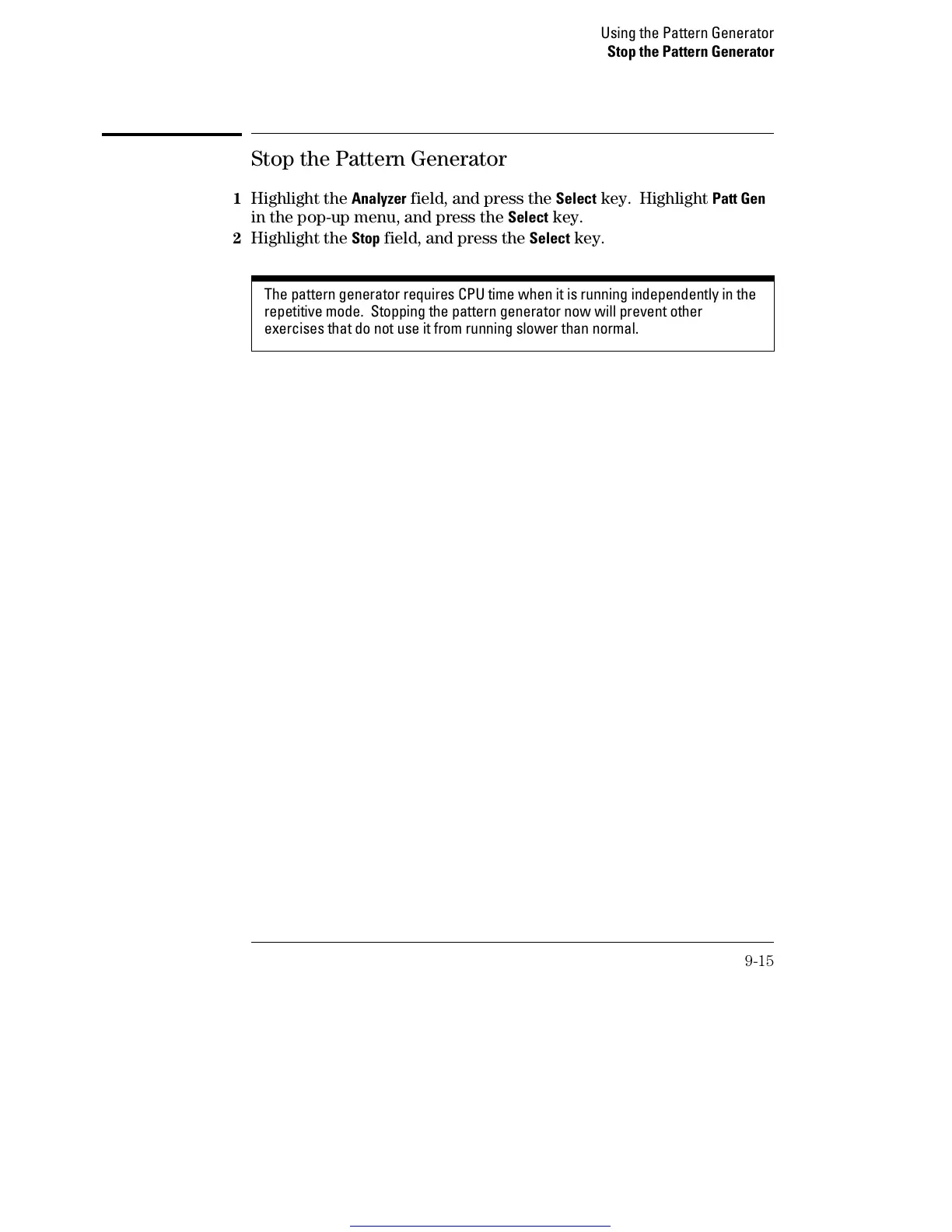

Stop the Pattern Generator

1 Highlight the Analyzer field, and press the Select key. Highlight Patt Gen

in the pop-up menu, and press the Select key.

2 Highlight the Stop field, and press the Select key.

The pattern generator requires CPU time when it is running independently in the

repetitive mode. Stopping the pattern generator now will prevent other

exercises that do not use it from running slower than normal.

Using the Pattern Generator

Stop the Pattern Generator

9-15
