HP 1660 Series Training Guide

Set Up Level 2 of the State Trigger Specification
In sequence level 1 the analyzer stores data before the trigger point. For
sequence level 2, you will tell the analyzer to store any data once the trigger
pattern is found. This will fill the rest of the acquisition memory.
1
Highlight the 2 field in the State Sequence Levels box. Press the Select
key.
2 Highlight the field to the right of Store, and press the Select key.
Highlight
anystate in the pop-up menu, and press the Done key.
3 Press the Done key to close the Sequence Level 2 pop-up menu.

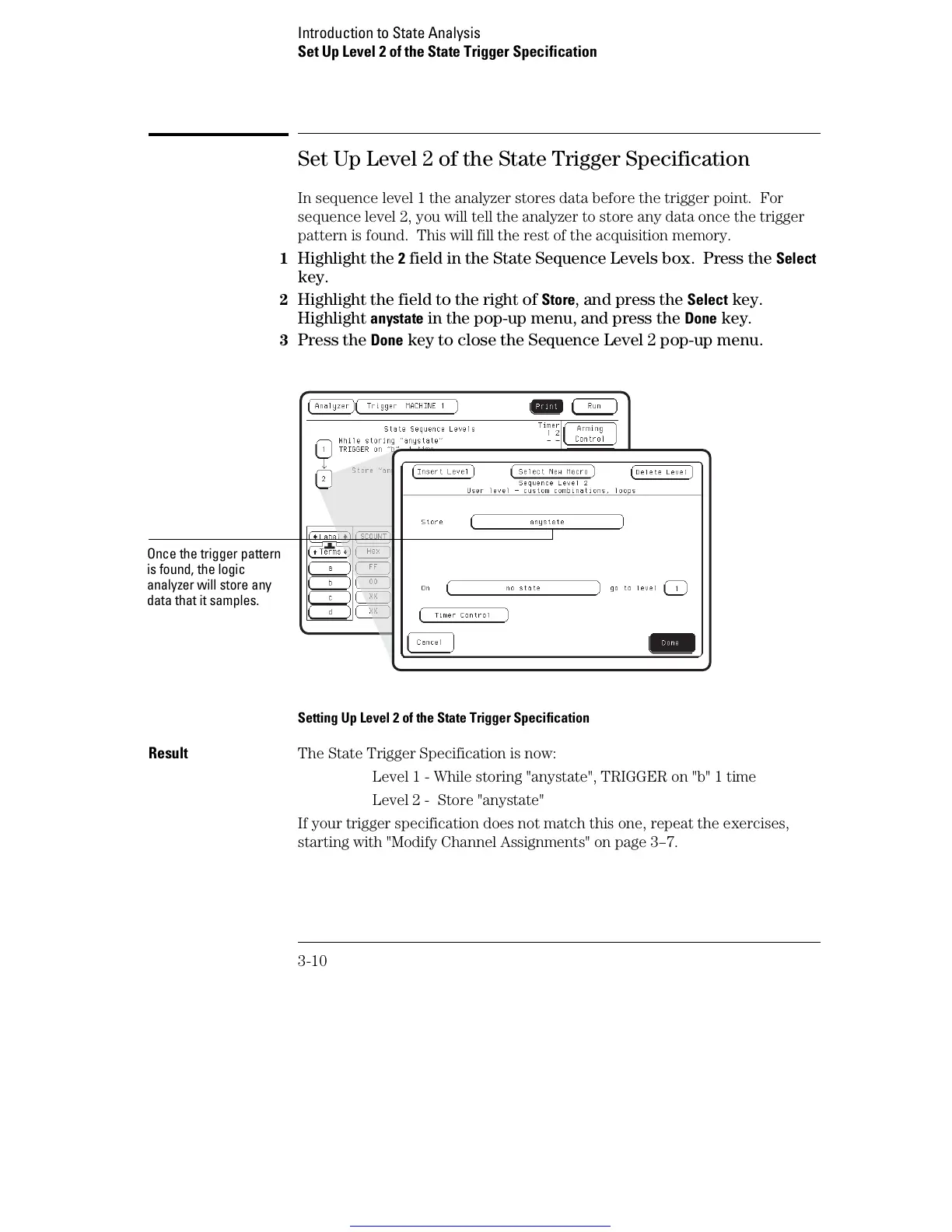

Setting Up Level 2 of the State Trigger Specification
Result The State Trigger Specification is now:
Level 1 - While storing "anystate", TRIGGER on "b" 1 time
Level 2 - Store "anystate"
If your trigger specification does not match this one, repeat the exercises,
starting with "Modify Channel Assignments" on page 3–7.
Once the trigger pattern
is found, the logic
analyzer will store any
data that it samples.
Introduction to State Analysis
Set Up Level 2 of the State Trigger Specification
3-10
