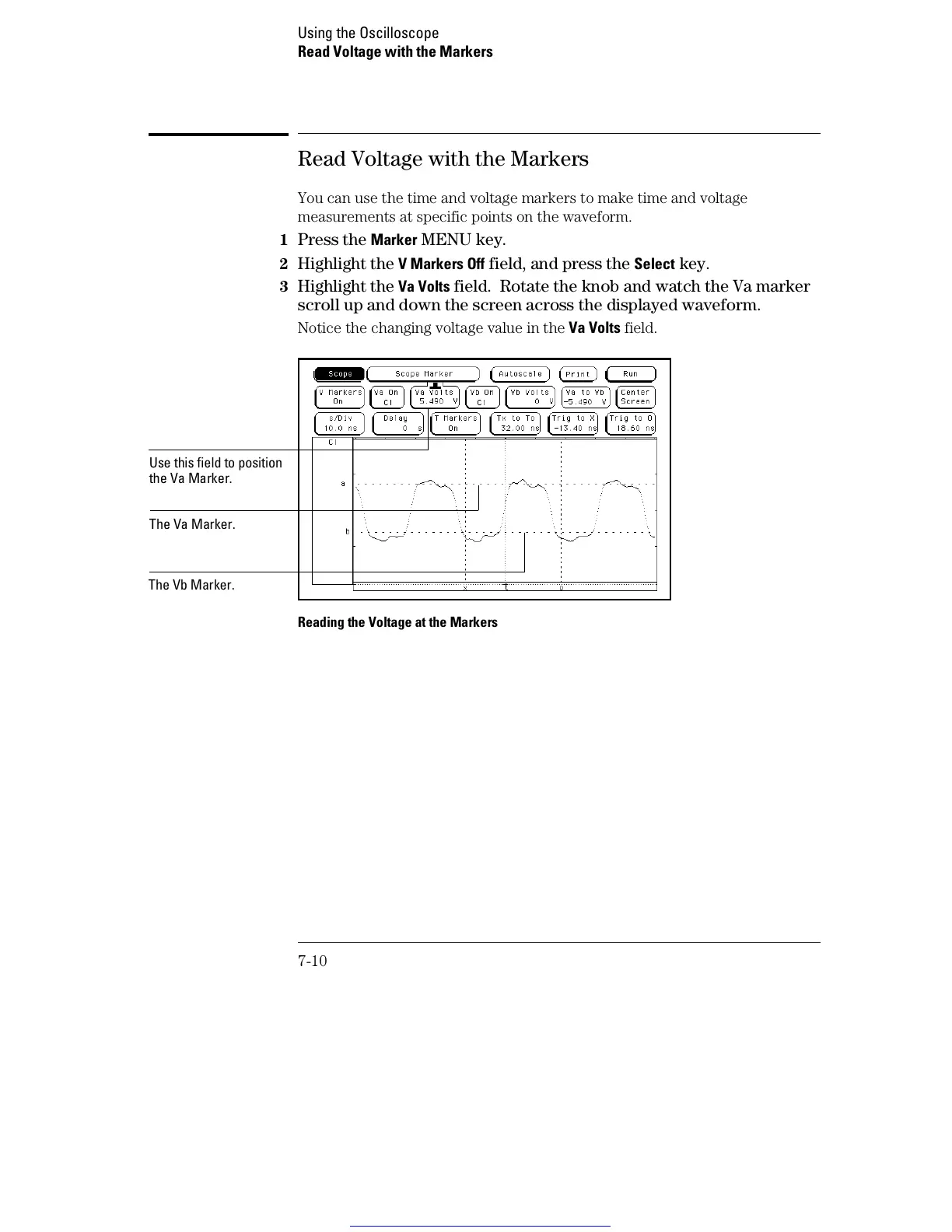

Read Voltage with the Markers
You can use the time and voltage markers to make time and voltage
measurements at specific points on the waveform.
1
Press the Marker MENU key.
2 Highlight the V Markers Off field, and press the Select key.
3 Highlight the Va Volts field. Rotate the knob and watch the Va marker
scroll up and down the screen across the displayed waveform.
Notice the changing voltage value in the Va Volts field.
Reading the Voltage at the Markers
Use this field to position
the Va Marker.
The Va Marker.
The Vb Marker.
Using the Oscilloscope
Read Voltage with the Markers
7-10
