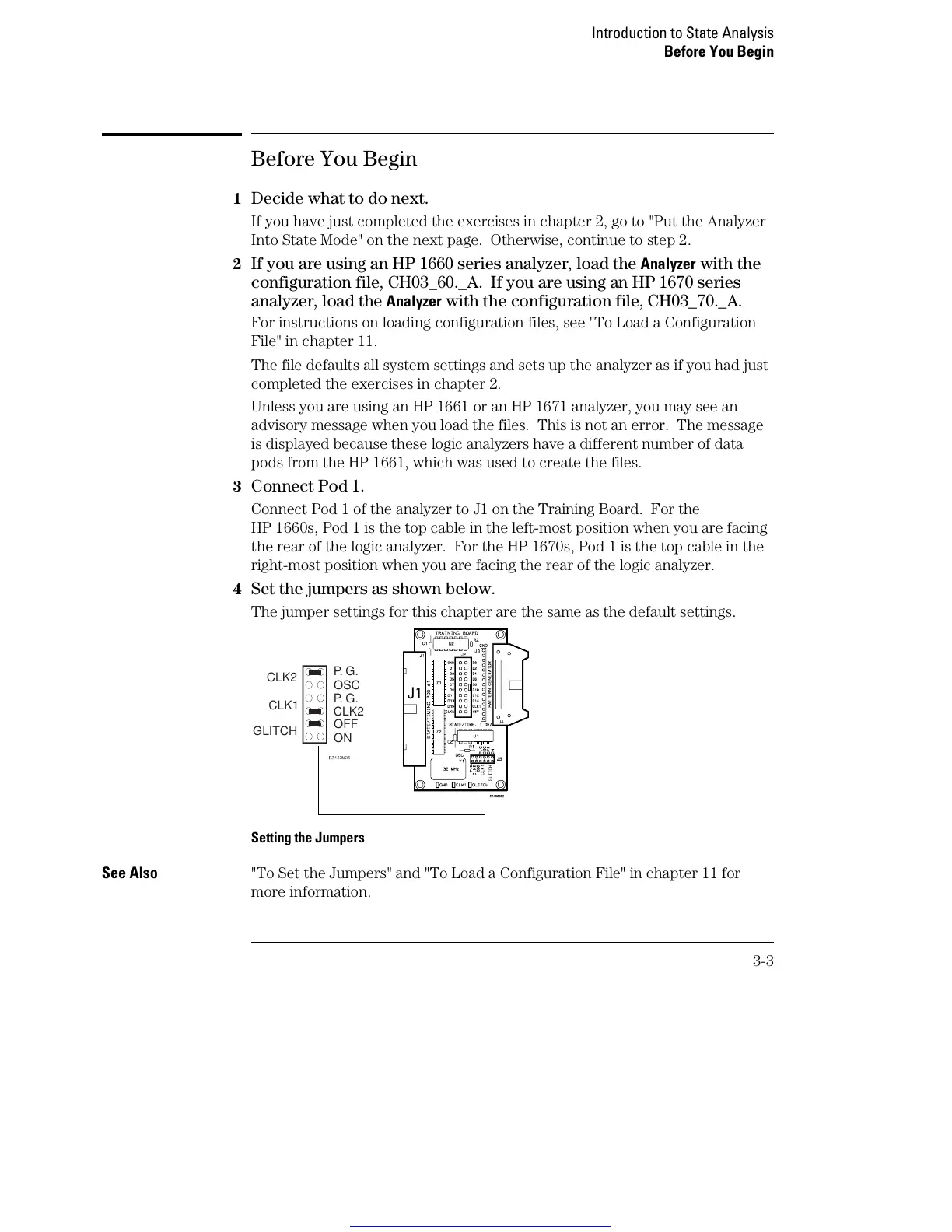

Before You Begin
1 Decide what to do next.
If you have just completed the exercises in chapter 2, go to "Put the Analyzer
Into State Mode" on the next page. Otherwise, continue to step 2.
2
If you are using an HP 1660 series analyzer, load the Analyzer with the
configuration file, CH03_60._A. If you are using an HP 1670 series
analyzer, load the
Analyzer with the configuration file, CH03_70._A.
For instructions on loading configuration files, see "To Load a Configuration
File" in chapter 11.
The file defaults all system settings and sets up the analyzer as if you had just
completed the exercises in chapter 2.
Unless you are using an HP 1661 or an HP 1671 analyzer, you may see an
advisory message when you load the files. This is not an error. The message
is displayed because these logic analyzers have a different number of data
pods from the HP 1661, which was used to create the files.
3
Connect Pod 1.
Connect Pod 1 of the analyzer to J1 on the Training Board. For the
HP 1660s, Pod 1 is the top cable in the left-most position when you are facing
the rear of the logic analyzer. For the HP 1670s, Pod 1 is the top cable in the
right-most position when you are facing the rear of the logic analyzer.
4
Set the jumpers as shown below.
The jumper settings for this chapter are the same as the default settings.
Setting the Jumpers
See Also "To Set the Jumpers" and "To Load a Configuration File" in chapter 11 for
more information.
CLK2
GLITCH
P. G .
OSC
CLK2
OFF
ON
CLK1
P. G .
J1
Introduction to State Analysis
Before You Begin
3-3
