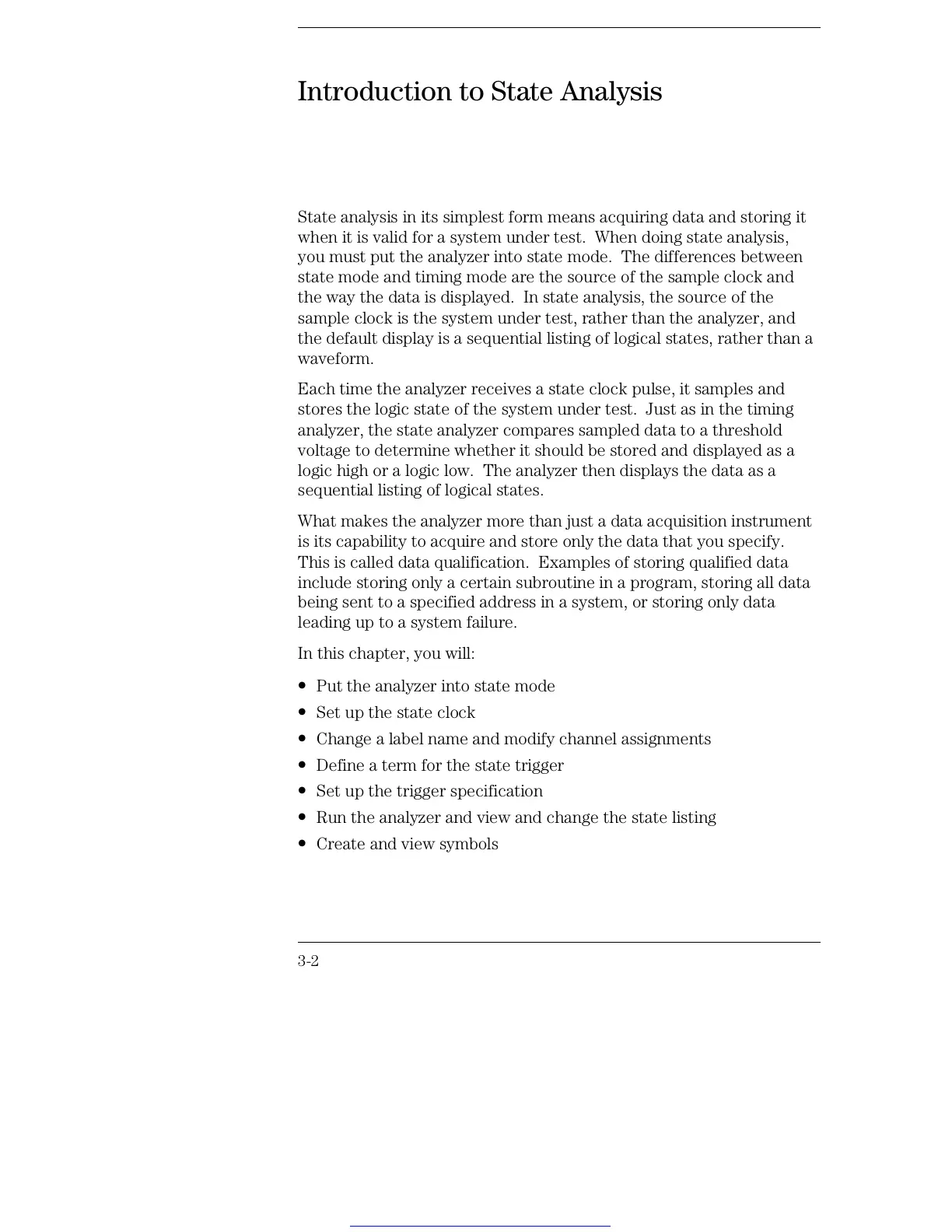

HP 1660 Series Training Guide

Introduction to State Analysis
State analysis in its simplest form means acquiring data and storing it
when it is valid for a system under test. When doing state analysis,
you must put the analyzer into state mode. The differences between
state mode and timing mode are the source of the sample clock and
the way the data is displayed. In state analysis, the source of the
sample clock is the system under test, rather than the analyzer, and
the default display is a sequential listing of logical states, rather than a
waveform.
Each time the analyzer receives a state clock pulse, it samples and
stores the logic state of the system under test. Just as in the timing
analyzer, the state analyzer compares sampled data to a threshold
voltage to determine whether it should be stored and displayed as a
logic high or a logic low. The analyzer then displays the data as a
sequential listing of logical states.
What makes the analyzer more than just a data acquisition instrument
is its capability to acquire and store only the data that you specify.
This is called data qualification. Examples of storing qualified data
include storing only a certain subroutine in a program, storing all data
being sent to a specified address in a system, or storing only data
leading up to a system failure.
In this chapter, you will:
• Put the analyzer into state mode
• Set up the state clock
• Change a label name and modify channel assignments
• Define a term for the state trigger
• Set up the trigger specification
• Run the analyzer and view and change the state listing
• Create and view symbols
