To Set the Jumpers
1 Pull the appropriate jumper off of the pins of J5.
2 Push the jumper onto the correct pins of J5. You only need to change
jumpers that differ from the settings in table 1.
Set the jumpers at their default settings for all chapters. Table 1 shows you
the default settings and the settings for each chapter. Chapter 4, "Comparing
State Traces," and chapter 8, "Triggering the Oscilloscope with the Timing
Analyzer," requires you to change the setting of the glitch jumper.

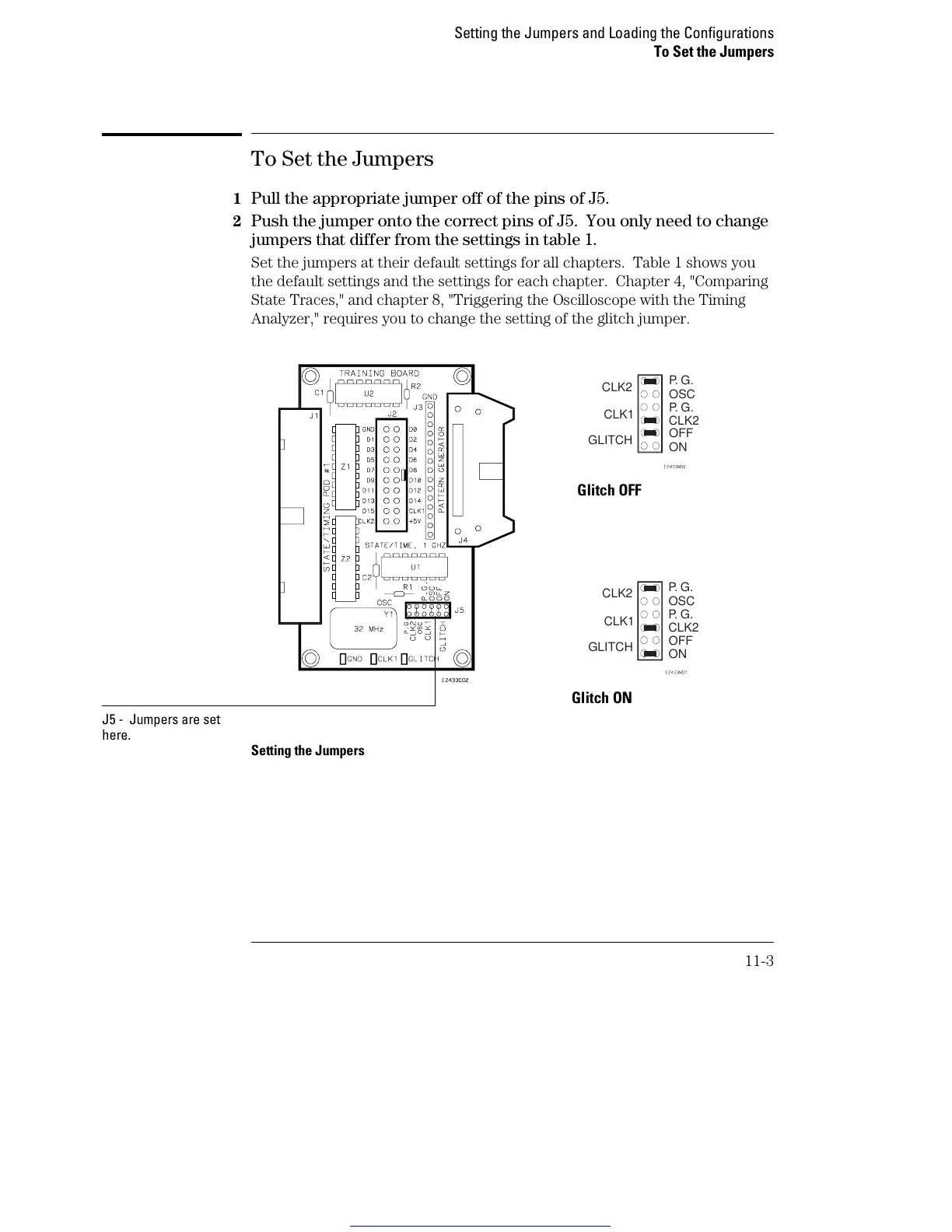

Setting the Jumpers
Glitch OFF
Glitch ON
J5 - Jumpers are set
here.
CLK2
GLITCH
P. G .
OSC
CLK2
OFF
ON
CLK1
P. G .
CLK2
GLITCH
P. G .
OSC
CLK2
OFF
ON
CLK1
P. G .
Setting the Jumpers and Loading the Configurations
To Set the Jumpers
11-3
